P3mm INDOOR LED Display

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

Detailed description

Features:
1. High technology, High resolution 111,111 pixels/M2, High viewing effect.
2. SMD 3-in-1 2020/2121, Taiwan Epistar chip/Silan

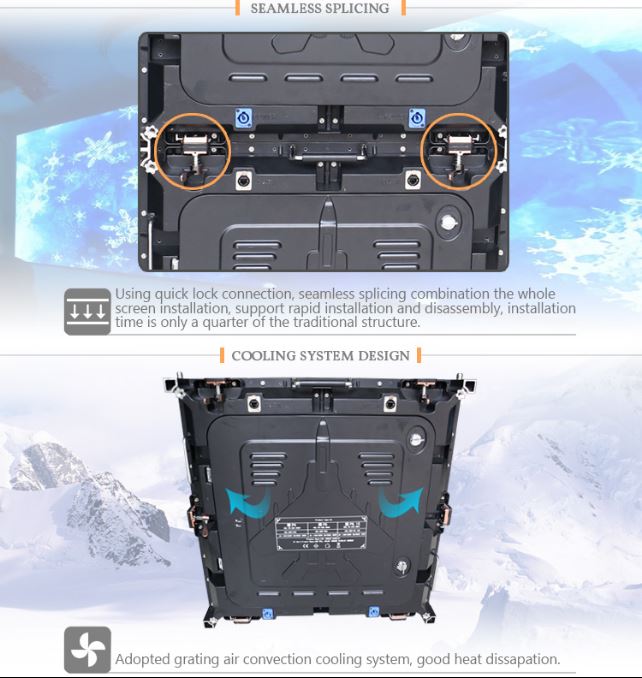

3. Module is specially designed for a lighter weight and better heat dissipation

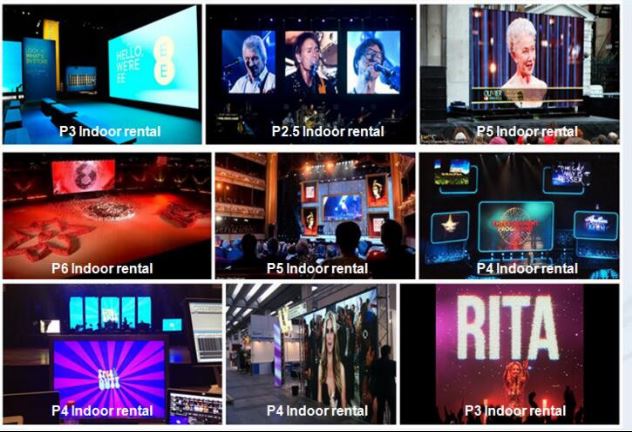

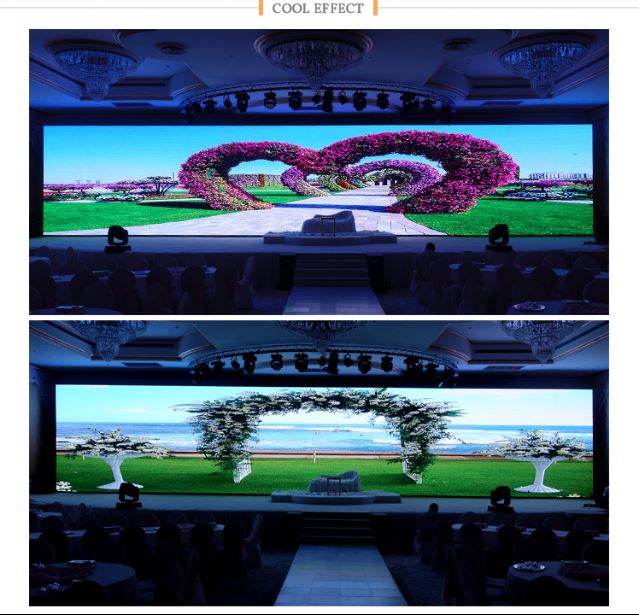

4. Used for indoor stage rental, event show, advertising, etc
5. Horizontally and vertically viewing is flatness and wide design.
6. The design has the features of "light", "thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.
7. The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology; it has the great expressive color
8. 24 hours on line services and technical supports.
Technical Specification

Physical pixel pitch	3mm
Pixel density	111,111 pixel/?
Pixel configuration	3IN1
Led type	SMD2020
Brightness	>1200nit
Viewing angle(H/V)	160°/140°
Best viewing distance	3-18m
Colors	281T
Gray scale	16bit
Refresh rate	1200HZ
Contrast ratio	4000:1
Frame fate	60HZ
Display lifetime at 50% brightness	100,000h
Display lifetime at full white	50,000h
Maximum power consumption	900W/?
Average power consumption	300W/?
Driving way	1/16 scan
Input voltage	AC90-240V
Operating voltage	DC 5V
Operating ambient temperature	-20~50?
Operating ambient humidity	10%~90%
Installation	Fix
Cabinet dimension(W×H×D)	384X384X110mm
Cabinet area	0.1475?
Cabinet weight	9KG
Cabinet resolution	128X128
Cabinet material	Iron
Ingress protection level	IP31
Module dimension(W×H)	192X96mm
Module resolution(W×H)	64X32
