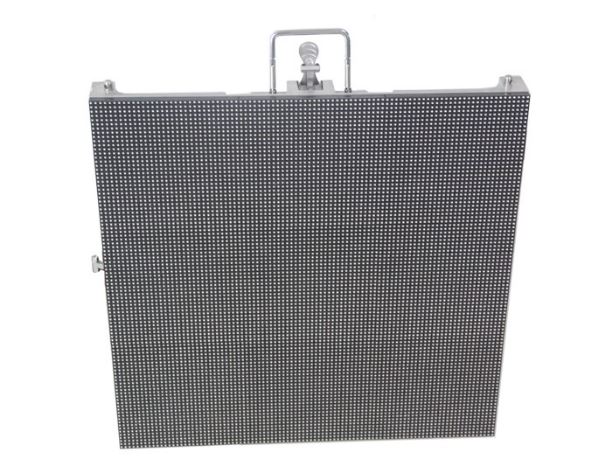

P2.98 Rental LED Display Screen

  • Description
Product Detail

Detailed description

Features:

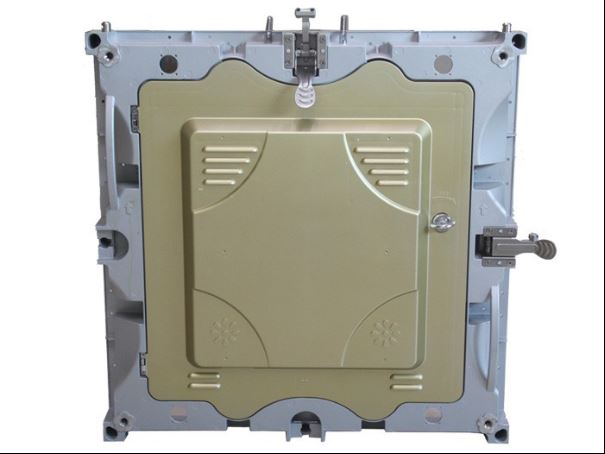

1. Die Casting process cabinets:
The flatness of led panel surface is greatly improved by its CNC+Die casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim:
The thickness is 65mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight:
The weight of full panel is only 6.5KG, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.

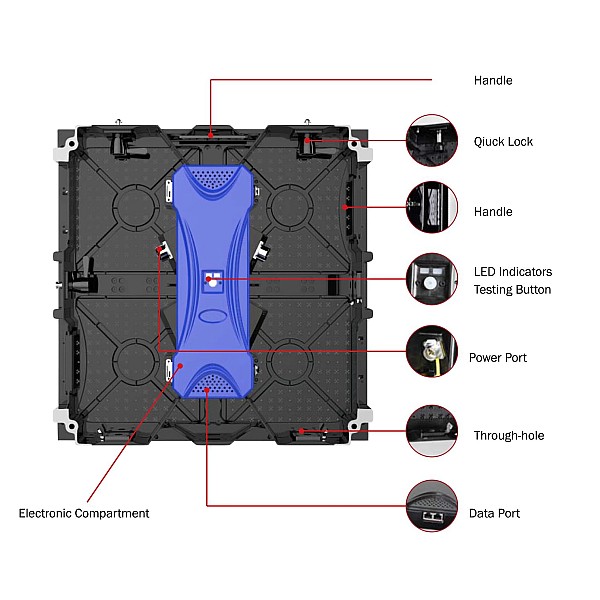

4. Convenient and Fast Installation:

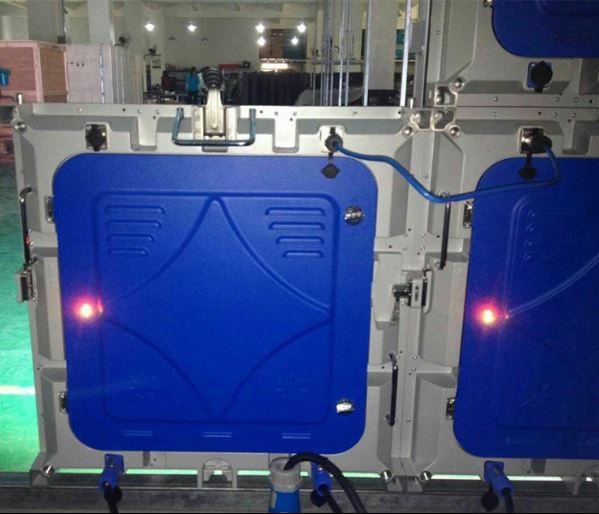

The power and signal connector is quite easy and fast for in &out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
6. Gap:
We control gap under 0.1mm to tolerance gap between each cabinets and modules.
Technical Specification:


  Product Parameters

Value

Pixel Pitch(mm)

2.98

Pixel Configuration

3-in-1 SMD 1515 Black LED

Density of Pixel

112,896pixels/m2

Pixel Per Module(Pixels/m2)

84x 84

Module Size(mm)

250 x 250

Brightness(CD/m2)

=1200

Viewing Angle(H/V)

H:140° / V:140°

Cabinet Size(mm x mm)

500 x 500 x 65

Cabinet Material

Die-cast Aluminum

Cabinet Weight(KG)

˜ 6.5

Display Refresh Rate(Hz)

= 1,920

Input Power Frequency(Hz)

50 / 60

Input Voltage (Nomad)(v)

AC 110V,220,110-220

Input Power (Max)(w/m2)

1300w/m2

Input Power (Average)(w/m2)

550w/m2

Lifespan(H)

=100,000 Hours

Light Transmittance

=75%

IP Rating

Front/Rear IP43

Color Depth

16bit

Luminance Consumption

Less than 5% after 1000 hours Ageing test, testing current 30mA, Under normal temperature 25°C.

MTBF

5,000hours

Defective Dot Rate

0.0001

Working Temperature/Humidity

-10°C - +45°C/10-90%RH

Storage Temperature/Humidity

-20°C - +60°C/10- 90%RH

Input Signal

RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc

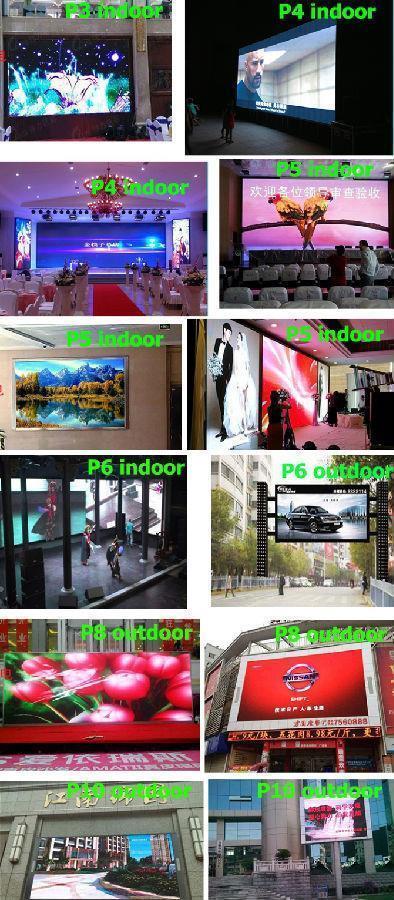

Pictures

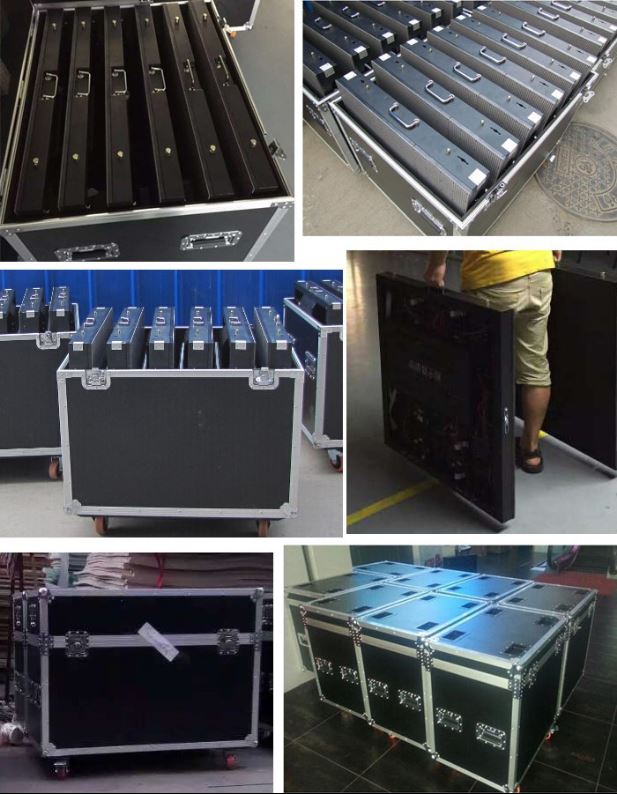

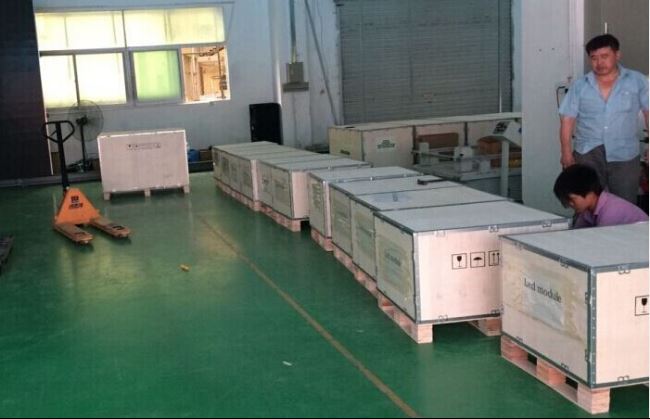

Packaging
Neutral package ofa wooden box;

We also supply Air box
if you need pls contact us.
