P2.5 Indoor Led Display Screen

  • Description
Product Detail

Detailed description


     Item

Parameter

Model

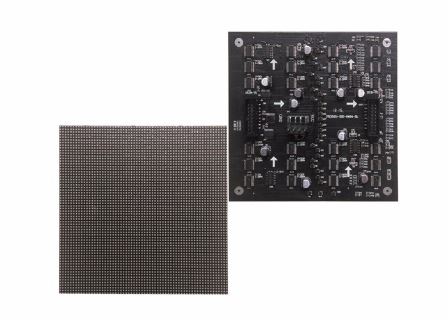

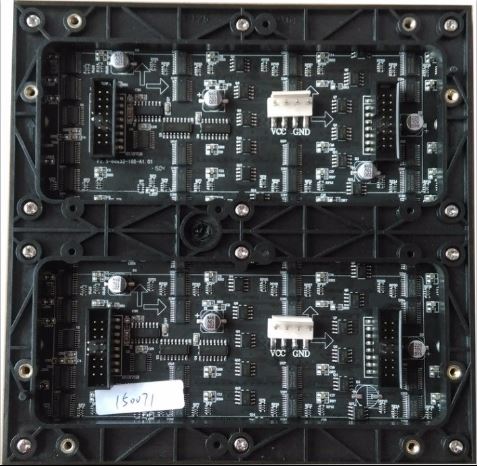

P2.5 indoor full color LED module

Module size

240mm * 120mm *10

Pixel pitch

2.5mm

Pixel density

160000dots/m²

Pixel configuration

1R1G1B

Module resolution

96dots(W) * 48dots(H)

Max power consumption

20W

Module thickness

10mm

Module weight

0.21KG

Driving method

Constant current driving

Scan method

1/24 scan

Interface way

HUB75E

Brightness

=1000cd/m²

Cabinet size

480mm * 480mm

Quantity of module

8pcs

Power supply mode

5V/60A*1pcs

Thermal discharge

Fan 2pcs

Pixel per cabinet

192mm * 192mm

Optimal viewing distance

2M –  10M

Optimal viewing angle

160º(W) 120º(H)

Environment temperature

-10º~+50º

Relative humidity

20% - 90%

Operating voltage

AC220V±10%

Average power

=200W/H

Max power consumption

=300W/m²

Current

20MA

CPU

Pentium4 or above P4

Operation system

WIN98/2000/NT/XP

Control mode

Synchronization

Driving device

IC constant current driving

Refresh rate

=400HZ

Gray/Color

RGB each 256 grade,can display 16.7M color

MTBF

=9000hours

Power switch

Automatic switch

Display Mode

800*600/1024*768

Specification


     Specification

Pixel Pitch

2.0mm

Pixel Configuration

SMD1010

Drive Mode

1/16

Pixel Density

250000dots/?

Module Size

200*150mm

Panel Size

400*300mm

Refresh Rate

>1200HZ/s

Product Description





Applications

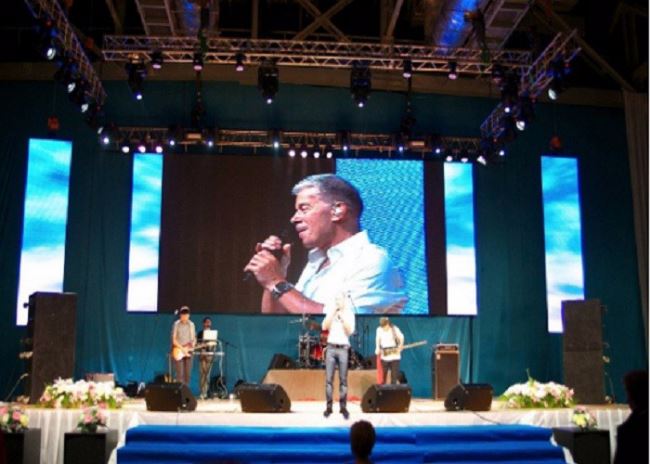

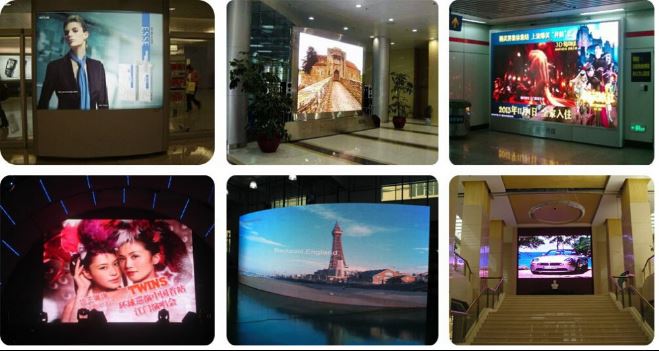

Widely used in Advertising LED displays, Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing , bank & stock exchange LED message signs for rates showing , train & bus station , airport , telecommunication LED video wall system forinformation showing and instruction, Stage performances ect.
