SJ-T8 Bevel Gearbox

  • Description
Product Detail

SJ-T8 Bevel Gearbox Detailed Information:

1. Model: SJ-T8

2. Gearing Type: Spiral Bevel Gear

3. Gear Ratio: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1

4. Efficiency: 95%

5. RPM Range: 10 rpm – 1450 rpm

6. Torque Range: 294 N.m – 361 N.m

7. Power Range: 0.386 kw – 45.6 kw

8. Drive Shaft: 2 way, 3 way, 4 way

9. Noise Level: less than 80dB

10. Temperature Level: less than 50 ºC

11. Work Temperature: -20ºC~+80ºC

12. Rotate Direction: clockwise, anti-clockwise

SJ-T8 Bevel Gearbox Specification:

Ratio

1:1

1.5:1

2:1

2.5:1

3:1

4:1

5:1

r/min

N.m

KW

N.m

KW

N.m

KW

N.m

KW

N.m

KW

N.m

KW

N.m

KW

1450

294

45.6

185

19.1

42.8

3.32

184

11.4

159

8.20

124

4.8

68.7

2.13

1150

305

37.5

188

15.4

43.4

2.67

185

9.11

160

6.55

125

3.83

69.2

1.70

870

312

29.0

191

11.8

43.8

2.04

188

7.00

163

5.04

127

2.95

70.4

1.31

580

319

19.8

197

8.14

44.4

1.38

192

4.76

166

3.42

129

2.00

71.7

0.89

400

326

14.0

200

5.70

45.1

0.96

195

3.34

168

2.39

131

1.40

72.6

0.62

300

331

10.6

203

4.34

45.5

0.73

197

2.53

169

1.80

131

1.05

72.9

0.47

200

338

7.2

204

2.91

46.1

0.49

200

1.710

171

1.22

134

0.71

74.1

0.32

100

346

3.7

210

1.49

46.6

0.25

203

0.867

173

0.618

135

0.36

75.1

0.16

10

361

0.386

218

0.155

48.5

0.026

208

0.089

179

0.064

140

0.04

77.8

0.02

SJ-T8 Bevel Gearbox Dimensions:

1: Bevel Gearbox Brand

SJ: “SIJIE” brand bevel gearbox

2: Gearbox base NO.

T8: Gearbox base NO.

Before selecting gearbox base NO. please check above SJ-T8 Bevel Gearbox Specifications

3: Gear Ratio

1:1 ratio, 2:1 ratio

4: Transmission Directions Code

There are 42 type transmission directions code for customers selection, please check below I-LR(O) series, I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

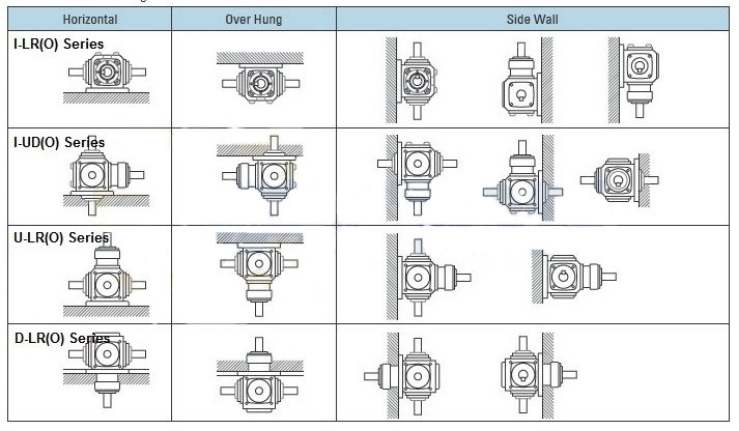

5: Mounting Position

A: Horizontal Mounting Position

B: Over Hung Mounting Position

C: Side Wall Mounting Position
