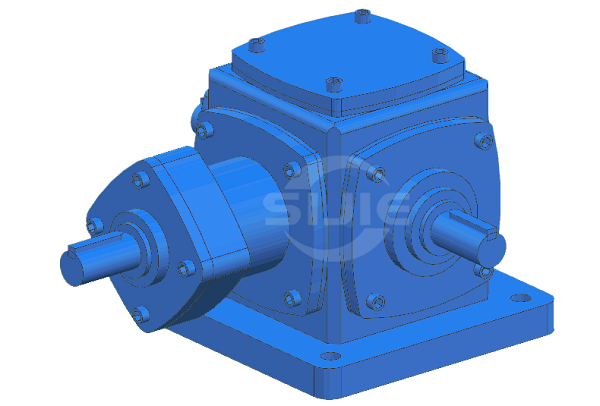

SJ-T12 Bevel Gearbox

  • Description
Product Detail

SJ-T12 Bevel Gearbox Detailed Information:

1. Model: SJ-T12

2. Gearing Type: Spiral Bevel Gear

3. Gear Ratio: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1

4. Efficiency: 95%

5. RPM Range: 10 rpm – 1450 rpm

6. Torque Range: 619 N.m – 919 N.m

7. Power Range: 0.983 kw – 96 kw

8. Drive Shaft: 2 way, 3 way, 4 way

9. Noise Level: less than 80dB

10. Temperature Level: less than 50 ºC

11. Work Temperature: -20ºC~+80ºC

12. Rotate Direction: clockwise, anti-clockwise

SJ-T12 Bevel Gearbox Specification:

Ratio

1:1

1.5:1

2:1

2.5:1

3:1

4:1

5:1

r/min

N.m

KW

N.m

KW

N.m

KW

N.m

KW

N.m

KW

N.m

KW

N.m

KW

1450

619

96.0

564

58.3

516

40.0

507

31.4

458

23.6

434

16.8

296

9.18

1150

665

81.1

601

49.2

516

31.7

514

25.3

464

19.0

441

13.5

301

7.39

870

726

67.5

656

40.7

516

24.0

523

19.5

469

14.6

448

10.4

305

5.68

580

802

49.7

699

28.9

524

16.3

535

13.3

480

9.92

456

70.7

311

3.86

400

821

35.1

711

20.3

538

11.5

545

9.32

490

6.98

465

4.97

318

2.72

300

 835

 26.8

724

15.5

543

8.71

552

7.08

495

5.29

470

3.77

321

2.06

200

852

18.2

736

10.5

551

5.89

560

4.79

501

3.57

476

2.54

325

1.39

100

875

9.36

754

5.37

563

3.01

568

2.43

510

1.82

485

1.30

331

0.71

10

919

0.983

785

0.56

586

0.313

588

0.251

527

0.188

501

0.13

342

0.07

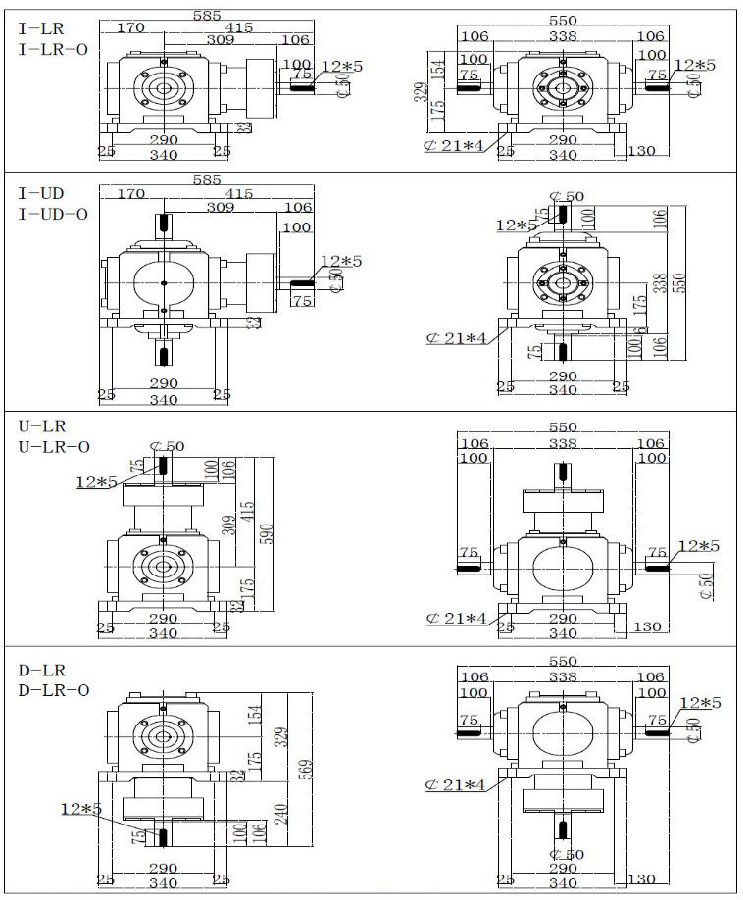

SJ-T12 Bevel Gearbox Dimensions:


1: Bevel Gearbox Brand

SJ: “SIJIE” brand bevel gearbox

2: Gearbox base NO.

T12: Gearbox base NO.

Before selecting gearbox base NO. please check above SJ-T12 Bevel Gearbox Specifications

3: Gear Ratio

1:1 ratio, 2:1 ratio

4: Transmission Directions Code

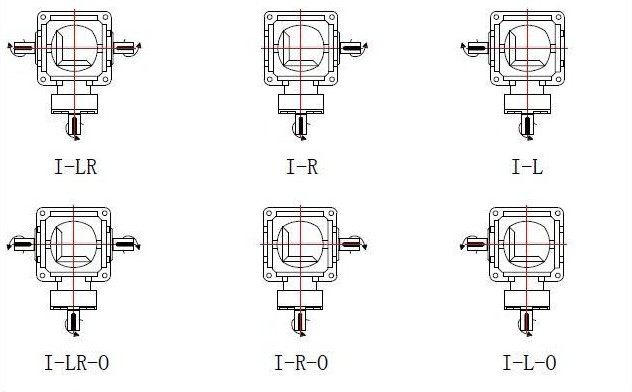

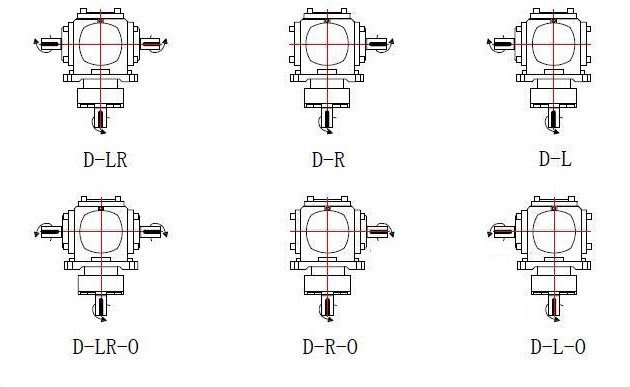

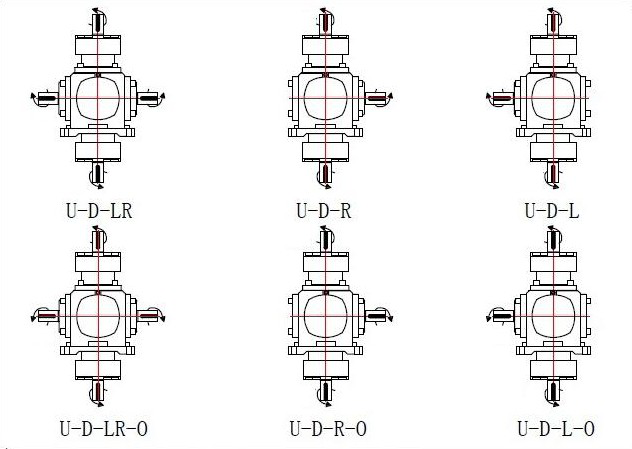

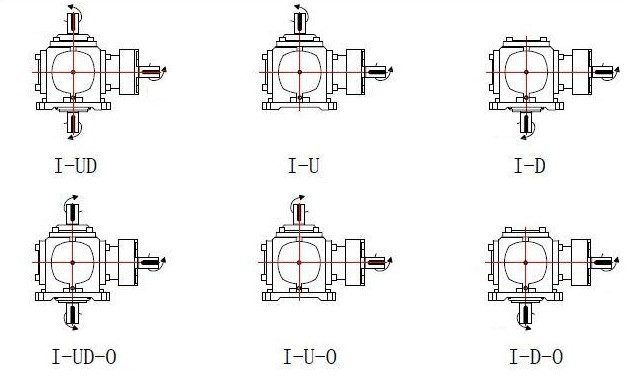

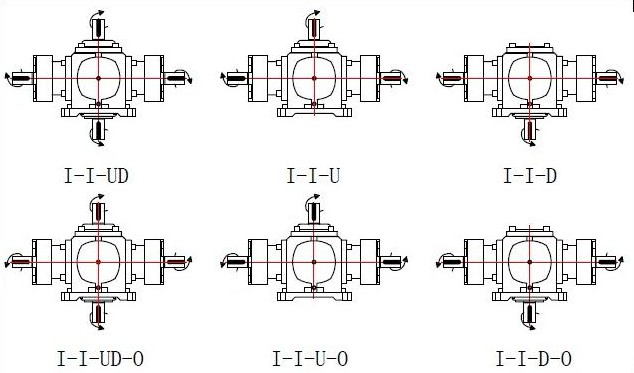

There are 42 type transmission directions code for customers selection, please check below I-LR(O) series, I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

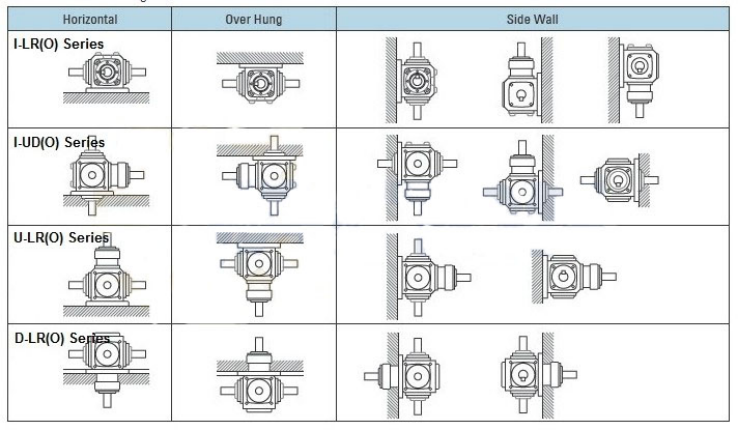

5: Mounting Position

A: Horizontal Mounting Position

B: Over Hung Mounting Position

C: Side Wall Mounting Position
