SJ-T16 Bevel Gearbox
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
SJ-T16 Bevel Gearbox Detailed Information:
1. Model: SJ-T16
2. Gearing Type: Spiral Bevel Gear
3. Gear Ratio: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1
4. Efficiency: 95%
5. RPM Range: 10 rpm – 1450 rpm
6. Torque Range: 1019 N.m – 1940 N.m
7. Power Range: 2.14 kw – 163 kw
8. Drive Shaft: 2 way, 3 way, 4 way
9. Noise Level: less than 80dB
10. Temperature Level: less than 50 ºC
11. Work Temperature: -20ºC~+80ºC
12. Rotate Direction: clockwise, anti-clockwise
SJ-T16 Bevel Gearbox Specification:
Ratio | 1:1 | 1.5:1 | 2:1 | 2.5:1 | 3:1 | 4:1 | 5:1 | |||||||
r/min | N.m | KW | N.m | KW | N.m | KW | N.m | KW | N.m | KW | N.m | KW | N.m | KW |
1450 | 1019 | 163 | 921 | 73.7 | 904 | 48.2 | 850 | 34.3 | 814 | 26.3 | ||||
1150 | 1098 | 139 | 938 | 59.5 | 920 | 38.9 | 865 | 27.7 | 828 | 21.2 | ||||
870 | 1186 | 114 | 958 | 46 | 940 | 30.1 | 884 | 21.4 | 847 | 16.4 | ||||
580 | 1343 | 85.9 | 980 | 31.3 | 960 | 20.4 | 902 | 14.6 | 864 | 11.2 | ||||
400 | 1499 | 66.1 | 1000 | 22 | 978 | 14.4 | 919 | 10.2 | 881 | 7.85 | ||||
300 | 1637 | 54.1 | 1009 | 16.7 | 990 | 10.9 | 930 | 7.8 | 891 | 5.96 | ||||
200 | 1784 | 39.3 | 1029 | 11.3 | 1005 | 7.38 | 944 | 5.3 | 905 | 4.03 | ||||
100 | 1842 | 20.3 | 1058 | 5.84 | 1038 | 3.82 | 976 | 2.7 | 935 | 2.08 | ||||
10 | 1940 | 2.14 | 1098 | 0.605 | 1076 | 0.4 | 1011 | 0.3 | 969 | 0.22 |
SJ-T16 Bevel Gearbox Dimensions:
1: Bevel Gearbox Brand
SJ: “SIJIE” brand bevel gearbox
2: Gearbox base NO.
T16: Gearbox base NO.
Before selecting gearbox base NO. please check above SJ-T16 Bevel Gearbox Specifications
3: Gear Ratio
1:1 ratio, 2:1 ratio
4: Transmission Directions Code

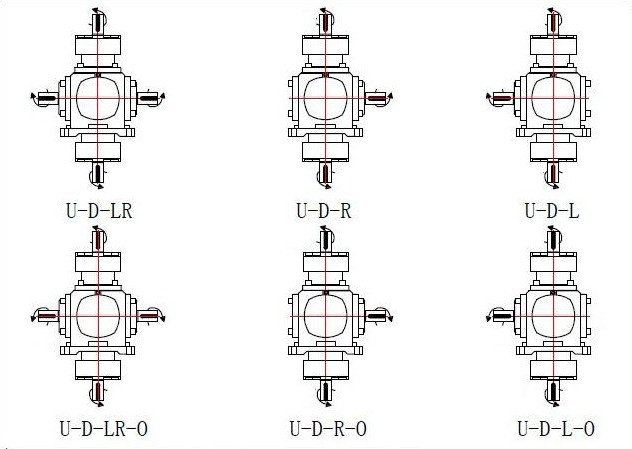

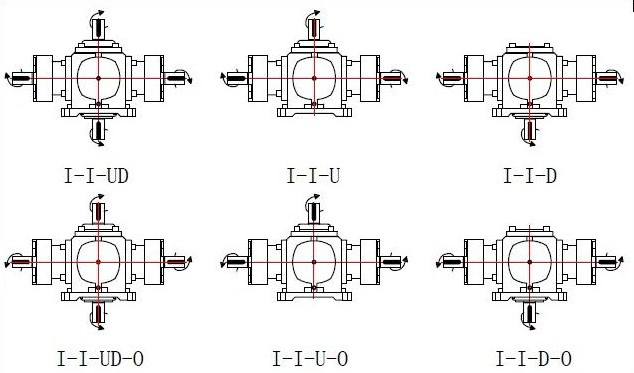

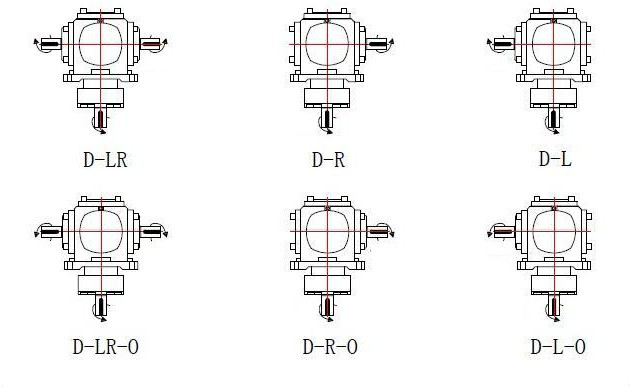

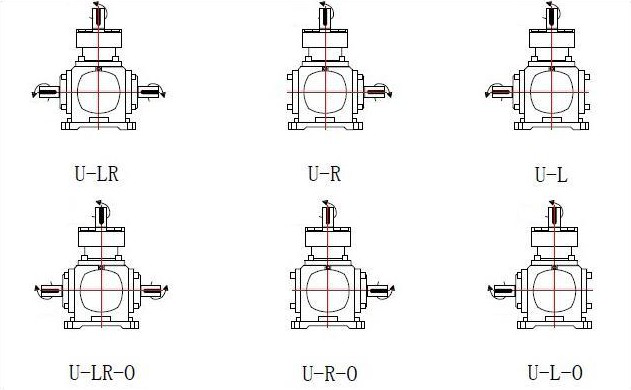

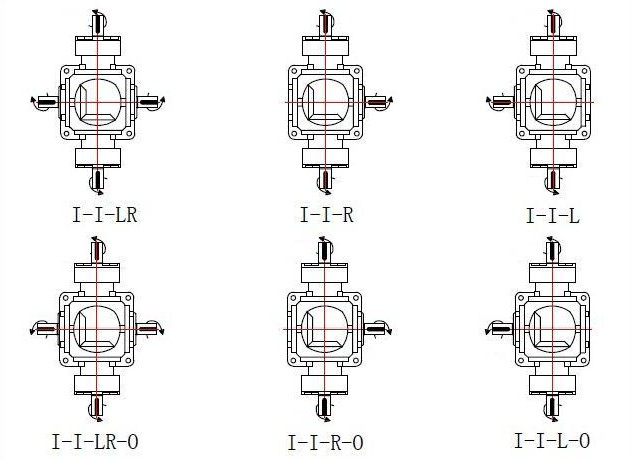

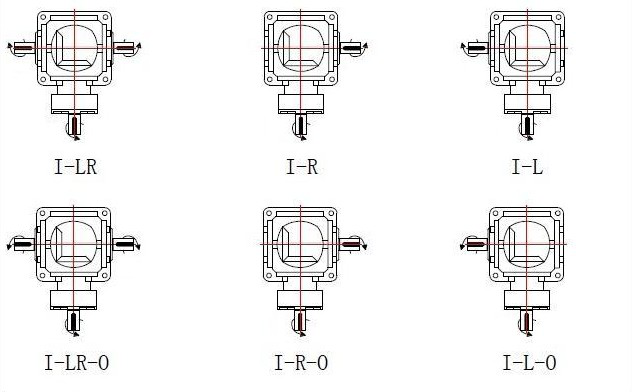

There are 42 type transmission directions code for customers selection, please check below I-LR(O) series, I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

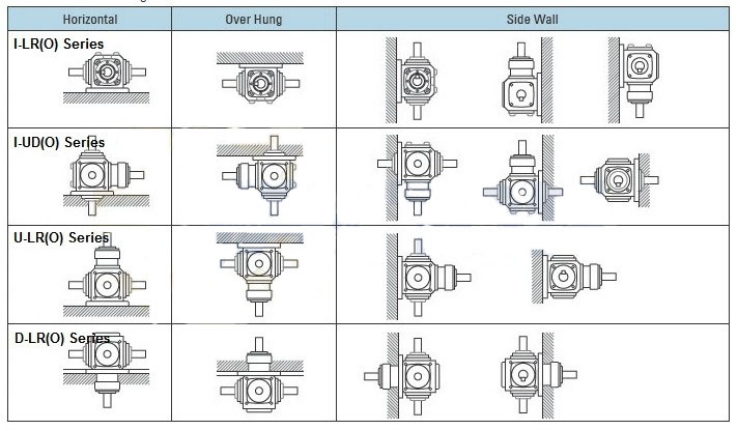

5: Mounting Position
A: Horizontal Mounting Position
B: Over Hung Mounting Position
C: Side Wall Mounting Position
