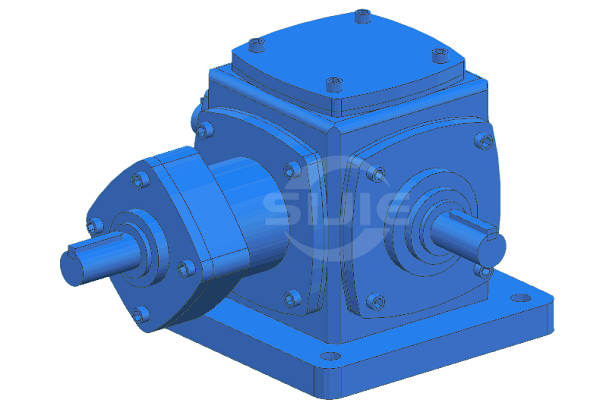

SJ-T7 Bevel Gearbox Details information:
1. Model: SJ-T7
2. Gearing Type: Spiral Bevel Gear
3. Gear Ratio: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1
4. Efficiency: 95%
5. RPM Range: 10 rpm – 1450 rpm
6. Torque Range: 142 N.m – 214 N.m
7. Power Range: 0.228 kw – 22 kw
8. Drive Shaft: 2 way, 3 way, 4 way
9. Noise Level: less than 80dB
10. Temperature Level: less than 50 ºC
11. Work Temperature: -20ºC~+80ºC
12. Rotate Direction: clockwise, anti-clockwise
SJ-T7 Bevel Gearbox Specification:
Ratio | 1:1 | 1.5:1 | 2:1 | 2.5:1 | 3:1 | 4:1 | 5:1 | |||||||
r/min | N.m | KW | N.m | KW | N.m | KW | N.m | KW | N.m | KW | N.m | KW | N.m | KW |
1450 | 142 | 22.0 | 145 | 15.0 | 137 | 10.6 | 113 | 6.99 | 105 | 5.42 | 93.4 | 3.62 | 57.4 | 1.78 |
1150 | 150 | 18.4 | 147 | 12.0 | 139 | 8.55 | 115 | 5.64 | 106 | 4.34 | 94.3 | 2.90 | 58.0 | 1.43 |
870 | 164 | 15.2 | 150 | 9.30 | 141 | 6.56 | 116 | 4.30 | 108 | 3.34 | 95.5 | 2.23 | 59.0 | 1.10 |
580 | 184 | 11.4 | 153 | 6.32 | 144 | 4.47 | 118 | 2.92 | 109 | 2.25 | 96.9 | 1.50 | 59.6 | 0.74 |
400 | 195 | 8.34 | 155 | 4.41 | 146 | 3.12 | 120 | 2.05 | 111 | 1.58 | 98.7 | 1.05 | 60.7 | 0.52 |
300 | 198 | 6.35 | 157 | 3.35 | 148 | 2.37 | 121 | 1.55 | 111 | 1.18 | 98.3 | 0.79 | 60.4 | 0.39 |
200 | 201 | 4.30 | 160 | 2.28 | 149 | 1.59 | 123 | 1.05 | 113 | 0.803 | 101 | 0.54 | 61.7 | 0.26 |
100 | 206 | 2.20 | 163 | 1.16 | 152 | 0.812 | 123 | 0.528 | 115 | 0.409 | 101 | 0.27 | 62.9 | 0.13 |
10 | 214 | 0.228 | 169 | 0.12 | 157 | 0.084 | 126 | 0.054 | 118 | 0.42 | 101 | 0.03 | 64.5 | 0.01 |
SJ-T7 Bevel Gearbox Dimensions:
1: Bevel Gearbox Brand
SJ: “SIJIE” brand bevel gearbox
2: Gearbox base NO.
T7: Gearbox base NO.
Before selecting gearbox base NO. please check above SJ-T7 Bevel Gearbox Specifications
3: Gear Ratio
1:1 ratio, 2:1 ratio
4: Transmission Directions Code

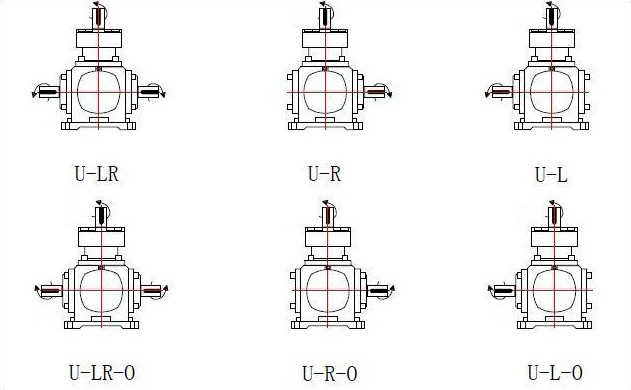

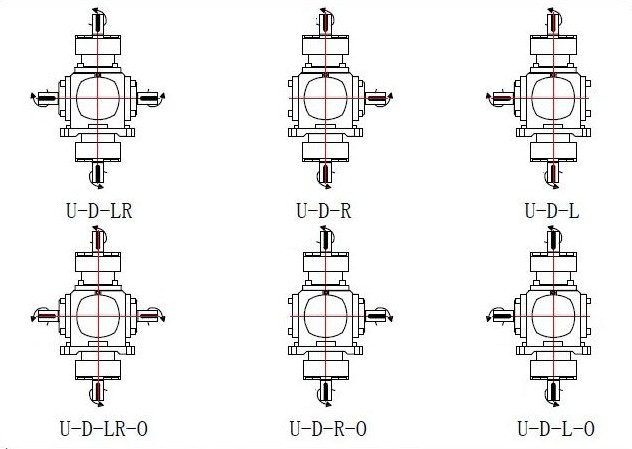

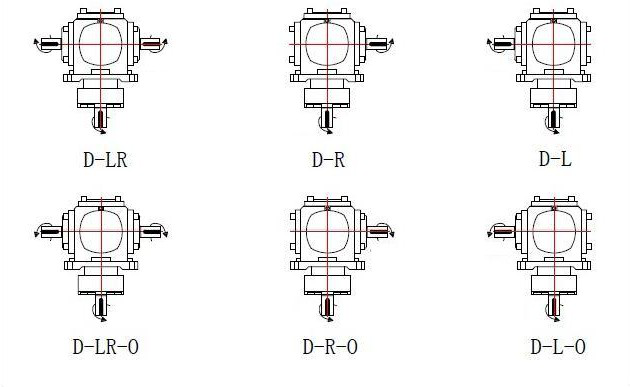

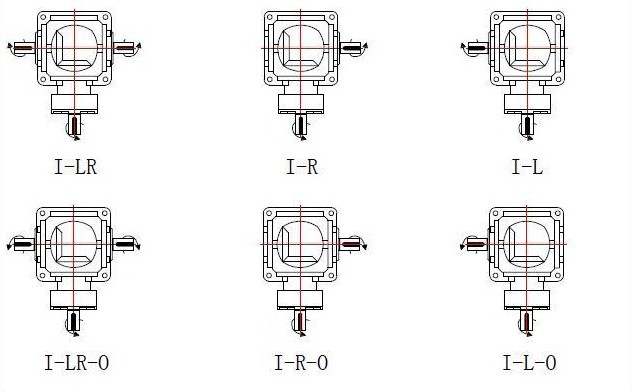

There are 42 type transmission directions code for customers selection, please check below I-LR(O) series, I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

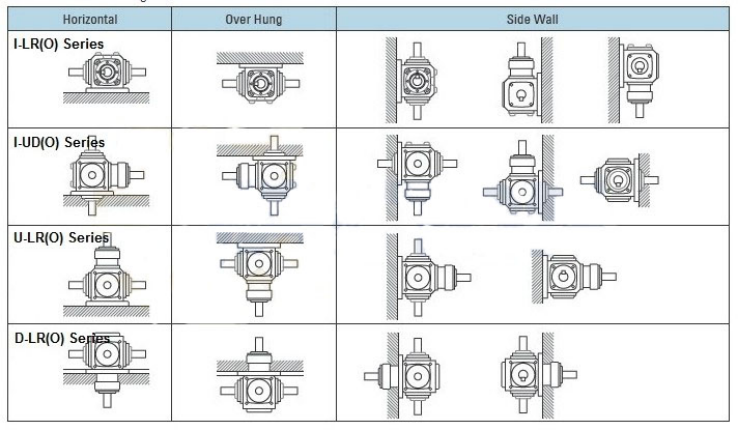

5: Mounting Position
A: Horizontal Mounting Position
B: Over Hung Mounting Position
C: Side Wall Mounting Position
