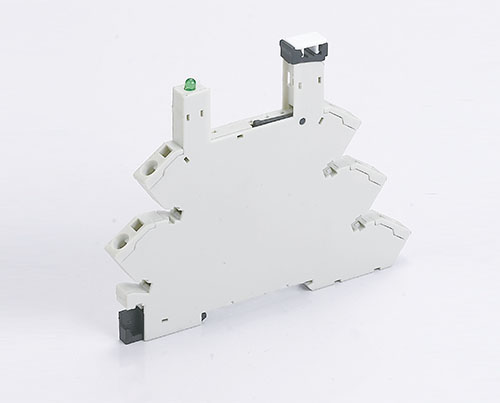

Slim Relay Socket Interface Relay
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
Quick Details
Place of Origin:Zhejiang, China (Mainland)
Theory:Electromagnetic Relay
Usage:General Purpose
Size:Miniature
Protect Feature:Sealed
Contact Load:High Power
Product name:power relay
Contact material:AgSnO2, AgNi
Contact arrangement:1H, 1Z
Contact rating(Res.load):6A 250VAC/30VDC
Max. switching coltage:400VAC/125VDC
Max. switching current:6A
Max. switching power:1500VA/180W
Insulation resistance:1000MO(at 500VDC)
Vibration resistance:10~55Hz 1mm Double-amplitude
Construction:Plastic sealed, Flux proofed
