Powerful and slim body 60W S-SE56-W

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

BRONZE SE SERIES WHITE LIGHT ILLMINATOR S-SE56-W
Delivers high power white light for night time illumination, improves performance of night vision camera to get colorful pictures.
Innovating high-efficiency design ensures long life span and zero maintenance

Product Features
• Precise secondary optical technology
The latest LED technology assures outstanding performance of LED with excellent luminous efficiency and more uniform illumination
• Independent innovation of high efficiency power drive schemes
Low failure rate of products is guaranteed because of professional in-house optimized independent circuit technology widely used in our LED illuminators for more than 5 years
• High thermal conductivity aluminum
Excellent thermal management not only reduces excess heat and brightness decay of LED but also ensures efficient, reliable and continuous operation of LED throughout its lifetime as 50,000 hours.
• Energy saving technology
All illuminators has energy saving circuit with low electrical power consumption.
• Thinner and lighter design
Our patent owned housing is designed for simple installation and easy operation to reduce construction difficulty.
• Warranty period
3 year warranty

Basic Function
• To improve performance of the weak light camera, thereby enhancing the picture effects at night.
• Conventional night monitoring
• The function of video analysis at night
• Reduce signal noise and other image distortion
• Reduce the network bandwidth requirements
• Energy saving by power factor correction
• Reduce the equipment cost
• Lower cost of installing and wiring
• Indoor and outdoor use

Viewing Picture at Night


With white light	Without white light

Technical Specification

LED type	56 pieces high power white light LED
Luminous Flux	6720lm
Color temperature	5500-6000K/3000-3500K
Beam angle	15 to 120°
Beam distance	280 to 65m
Bracket	wall mount bracket
Working voltage	85-265V AC
Power consumption	60W
Day/night switch	automatic
Working temperatures	-30 to 50°C(-50 to 50°C with heater)
Grade of protection	IP66
Color	Beige
Panel	tempered glass panel
Housing	aluminum die-casting housing
N.W	2.9KG
G.W	3.2KG

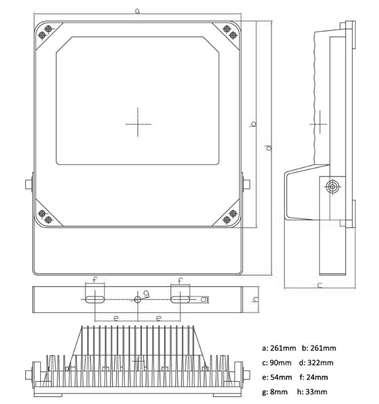

Dimension	26126190mm
Packing dimension	290280140mm

Model for Selection

Model	Beam angle	Viewing distance
S-SE56-15-W	15°	280m
S-SE56-30-W	30°	220m
S-SE56-45-W	45°	140m
S-SE56-60-W	60°	120m
S-SE56-90-W	90°	100m
S-SE56-120-W	120°	65m
* Viewing distance is tested by Sony 1/3 CCD Camera with 0.01LUX.. To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
