Dustproof and waterproof IP66 S-S12D-W
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail

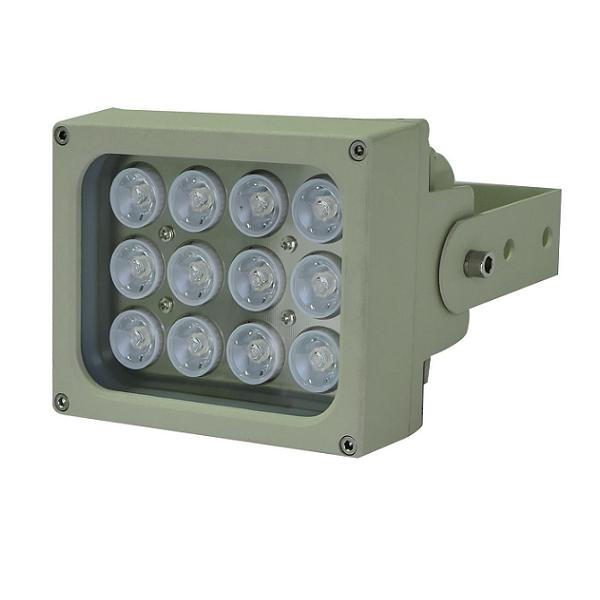

SILVER SD SERIES WHITE LIGHT ILLUMINATOR S-S12D-W |
Professional Design
• Two stages of constant current circuit avoid LED away from instantly impulse impact when started.
• A wide edge of silica gel waterproof circle and water stop line ensure excellent waterproof performance.
• Twice direct cooling heat sink processing enable to increase the cooling coefficient and prolong the service life of the product.
• Patent design hexagonal spherical light sensor more accurately responses ambient brightness and improves accuracy of automatic light control.
• Flexible angle adjustable bracket can extend the illuminance range widely.
• IP66 waterproof and dustproof housing available work at ambient temperature -40? to 50?.
Qualified Material
• Super power dot-matrix white light LED with strong light effect, long service life and low light decline feature.
• High efficient twice optical lens processing achieves 90% of the luminous efficiency.
• The housing adopts high thermal conductivity aluminum to enhance heat dispersion property.
• Stainless steel bracket and screw ensure low maintenance.
Wide Range of Application
• Recommended for security at ports, railway systems, border, prisons, traffic LRP/ANPR, ITS as well as large public places lighting.
• 30,000 hours lifetime of LED
• 3 Years warranty
Basic Function
• To improve performance of the weak light camera, thereby enhancing the picture effects at night.
• Conventional night monitoring
• The function of video analysis at night
• Reduce signal noise and other image distortion
• Reduce the network bandwidth requirements
• Energy saving by power factor correction
• Reduce the equipment cost
• Lower cost of installing and wiring
Viewing Picture at Night
With white light | Without white light |
Technical Specification
LED type | 12pcs high power white light LED |
Color temperature | 3000-3500K/5500-6000K |
Luminous Flux | 2400lm |
Voltage | AC85-265V/DC12V/AC24V |
Power consumption | 26W |
Day and night switch | Auto (build in photocell) |
Mounting | Wall mounting "U" bracket |
Temperature | -40? to 50? |
Grade of protection | IP66 |
Color | Beige |
Housing | Aluminum |
Panel | High light transmittance toughened glass |
Net weight | 1.25KG |
Gross weight | 1.55KG |
Dimension | 135*110*91mm |
Packing dimension | 190*180*135mm |
Model for Selection
Model | Beam angle | Viewing distance |
S-S12D-15-W | 15° | 180m |
S-S12D-30-W | 30° | 150m |
S-S12D-45-W | 45° | 110m |
S-S12D-60-W | 60° | 90m |
S-S12D-90-W | 90° | 70m |
S-S12D-120-W | 120° | 30m |
* Viewing distance is tested by Sony 1/3 CCD Camera with 0.01LUX.. To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens. |

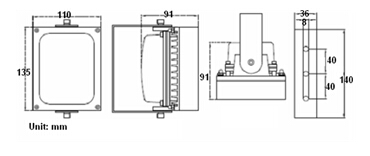

Drawing
Product Certificate
