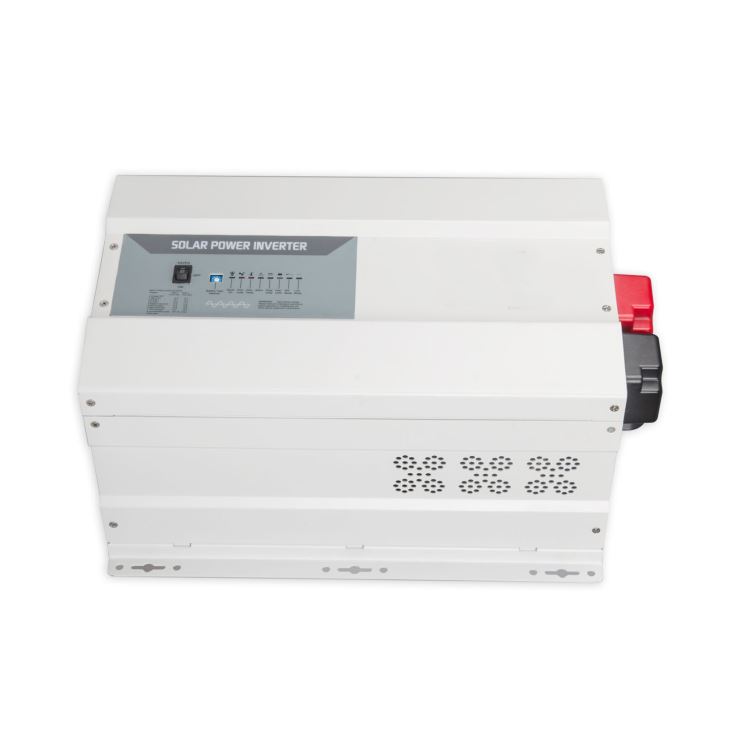

5KW All-In-One Off-grid Solar Inverter + Mppt Charge Controller + Transformer + UPS Function

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

The device is consisted of solar controller and inverter, manufactured with top quality imported components, designed based on DPS technology and with the advantages of high reliability, efficiency and fully functional performance.

This device converts DC power into 220V (120V), 50Hz/60Hz AC power, and provides electricity to the loads, such as TV, satellite receiver, household appliances etc. It can be also acting as supporting power for solar & wind power system.

Features

l Wall-mounted, convenient for installation

l Maximum power point tracking(MPPT) charging mode, maximize the utilization of solar power, with the peak efficiency up to 99.9%

l Configure inverter output for two utility settings,(1)110V/60Hz, (2)220V/50Hz

l Integrated design with controller, inverter and isolated technique

l Built-in AC charger option, allows to connect a generator or mains up to the off grid system and automatically charge up batteries when the solar power is getting too low.

l Pure sine wave output, support unbalanced load

l Isolated transformer, safe and stable, 92% system efficiency

l Intelligent battery management and temperature compensation function

l City power/diesel generator input interface (optional)

l Low self-consumption, energy conservation

l LCD display + LED status indicator, allow user to monitor the operating mode or status

l Certifications: CE, FCC (we can help customers with other approvals)

l Warranty: 2 years, can be extended to 3-10 years

Electronic Protections

1. Battery over-discharge Protection: When the battery voltage is lower than the limit of 20V(When SW1=1, is 21 Vdc), or higher than the limit of 32VDC, the buzzer will alarm, and “Alarm” indicator turns on, the output will stop; When the battery voltage returns to normal range, the alarm warning will automatically stop and the output resume.

2. Over-temperature Protection: When the temperature of the internal key components is higher than 90 ?, the buzzer will alarm and “ Over Temp” indicator turns on, and the output will stop; when the ambient temperature or internal temperature of the device drops to normal level, and battery voltage is higher than the recovery points, the output will automatically resume.

3. Overload Protection: When the external load is larger than the maximum rated load capacity 2000W,the buzzer will alarm and “Over Load” indicator turns on; when the external load is adjusted to the normal working range, the device will automatically resume in 1 minute; if two over-load problems occur in quick succession, it need to restart the device.

4. Load Short-circuit Protection: When the external short-circuit problem happens, the buzzer will alarm, and “Alarm” indicator turns on, the output will stop; it need to restart the device after the problem was solved.

Technology Specification

Model NO.	SIW-1000	SIW-2000	SIW-3000	SIW-4000	SIW-5000	SIW-6000	SIW-8000
Inverter
Rated Power	1000W	2000W	3000W	4000W	5000W	6000W	8000W
Peak Power	3000W	6000W	9000W	12000W	15000W	18000W	24000W
Battery Volt.	12/24V	24/48V	24/48V	48V	48V	48V	48V/96V
Output Volt.	110V/220V±5% at the Same Time
Output Frequency	50/60Hz±1%
Efficiency	>85%
Overload Capacity	105~120%, 30min; 120~130%,5min;130~150%1min;>150%=20S; Short Circuit 10ms
Output Wave	Pure Sine Wave
Solar Charge Controller
Charge Type	MPPT
Max. Input Power	864W/1728W	1728W/3456W	1728W/3456W	4608W	4608W	4608W	4608W/5760W
Max. Input Current	60A	60A	60A	80A	80A	80A	80A/50A
Input Volt.	70~150VDC
AC Battery Charger
AC Input Volt.	85~135V(110V)/165~265V(220V)
Input Frequency	50/60Hz±3%
AC Charge Current	12V Max: 20A 24V Max: 10A	24V Max: 20A 48V Mad: 10A	24V Max:30A 48V Max: 15A	Max: 20A	Max: 20A	Max: 30A	48V Max: 40A 96V Max: 20A
AC By-pass
Transfer Time	<8ms
AC Input Wave Form	AC or Generator(Sine Wave)
General
Display	LED + external LCD
Display Content	PV Status; Battery Capacity; AC Input& Output Volt.; Load; Running Status
Cooling Method	Fan Cooling
Communication	RS232/RJ45 (Optional)
Noise Emission	<60dB(1m)
Operating Temp. Range	-20~50?
Storage Temp. Range	-15~70?
Operation Humidity	0~90%RH Non-condensing
