Solenoid Cartridge Valve

  • Description
Product Detail

Ningbo Zhenhai Finotek Machinery Co.,Ltd is one of the leading China solenoid cartridge valve manufacturers and suppliers in China, welcome to buy or wholesale customized bulk solenoid cartridge valve from our factory.

Finotek provides solenoid cartridge valve in 2way 2positions, 3-way 2positions, 4way 2position, 4way 3positions with poppet type or spool type cartridge valve, with four stage of solenoid voltages, 12VDC, 24VDC, 110VAC and 220VAC for optional, and all of the solenoids are equipped with wet-pin, led signal plug connected.

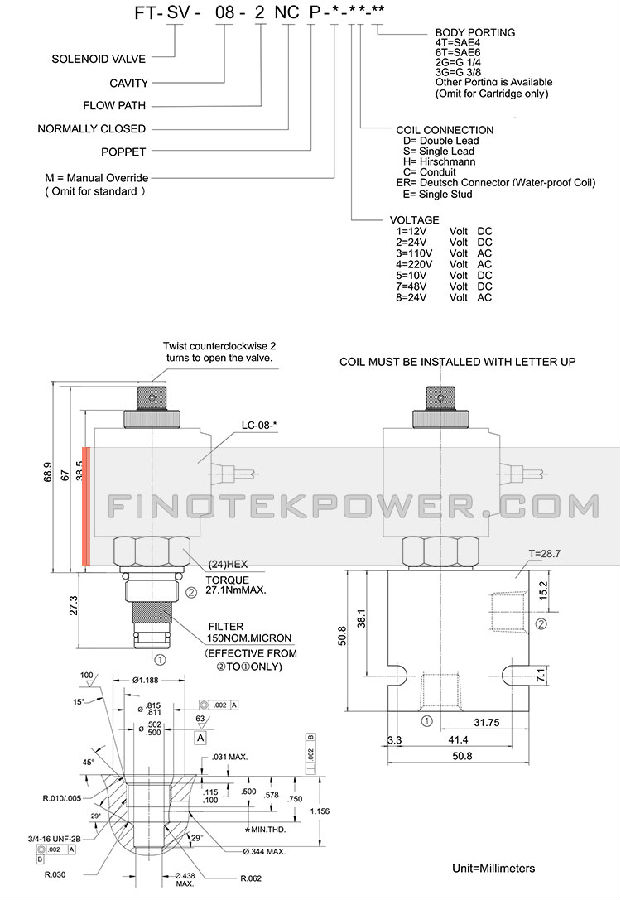

Solenoid cartridge valve is the solenoid operated with normally closed, hydraulic pilot operated and poppet model, size 8 cartridge valve. Solenoid cartridge valve works if the solenoid de-energized or energized as check valve, allows the hydraulic fluid flow from 1 port to 2 and blocks from hydraulic fluid from 2 port to 1 port. Specifications of solenoid Cartridge Valve:

Max. operation pressure: 21Mpa, 210bar

Max. flow rate: 5.0Gpm/18.90Lpm at pressure of 8.6bar/125psi

Valve Inner leakage: 0~2 drops/min.

Valve working temperature: -22° F to +250° F (-30°C to +120°C)

Solenoid voltage range: voltage tolerance from 90% 110%.

Medium: Mineral-based fluids better
