Reactor with Reflux Condenser

Such reactor has a reflux condenser device, the steam or gas inside kettle can rise up and turn to liquid through condenser and come back into reactor for once more mixing and reaction.

Specifications and Technical Parameters
Type	GSH-0.1~1	GSH-1~10	GSH-10~25	GSH-25~50
Volume(L)	0.1~1	1~10	10~25	25~50
Working pressure(MPa)	Negative pressure -0.1~40	Negative pressure -0.1~35	Negative pressure -0.1~25	Negative pressure -0.1~15
Working temperature(?)	-196~500
Stirring speed(r/min)	20-1500
Motor power(W)	40~80	80~200	300~750	1100
Heating power(KW)	0.8~1	1~3	3~6	4~9
Heating type	Electric heating, water recycling, thermal oil, steam, far infrared heating.
Charging type	Charging from above, discharging from below or above.
Shaft	Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media.
Stirring type	Paddle type or anchor type or as per customer request
Seal type	Magnetic seal
Motor	GSH-0.1~10 general DC motor, GSH-10~50 DC servomotor or explosion-proof motor according to the customers’ requirements.
Main material	Contacting material inside kettle mainly use 0Cr18Ni9(304), 00Cr17Ni14Mo2(316L), 1Cr18Ni9Ti(321), also can be produced by titanium(TA2), nickel, zirconium, hastelloy, etc, or lined with PTFE, PPL, PFA and Ni (Ni6) according to different requirements of reaction media.

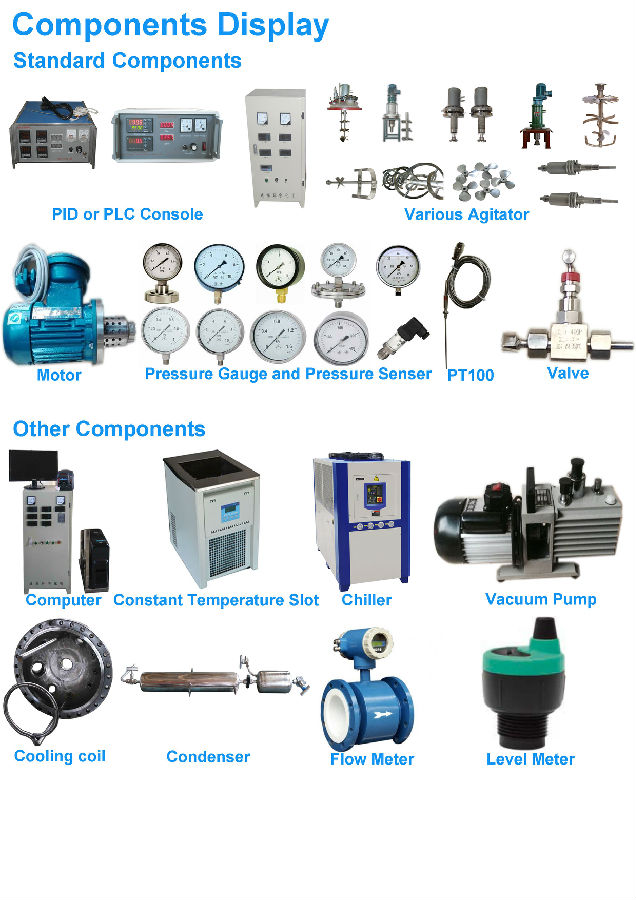

Opening port of conventional kettle lid	Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100) on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Inlet and Outlet of Cooling Coil inside the reactor with tap.
Controller Device	Equipped with automatic or programmed PID or PLC to achieve: Temperature display and control, accuracy ± 1 ? (or ±0.1 ?); Mixing Speed display and control; Pressure display and control; Level display and control; Flow display and control; Valve open/close control, etc.
Other Accessories	We can design and manufacture various reactors as per customer’s request. If user have other special requirements on kettle cover, kettle body opening, internal structure, stirring paddle, and other supporting device (such as constant feeding tank, receiver, buffer tank etc.), we can help customer to achieve their request, can also equip necessary instruments as request.
