Price Computing Scale Load Cell transducer

  • Description
Product Detail

Product information

Description

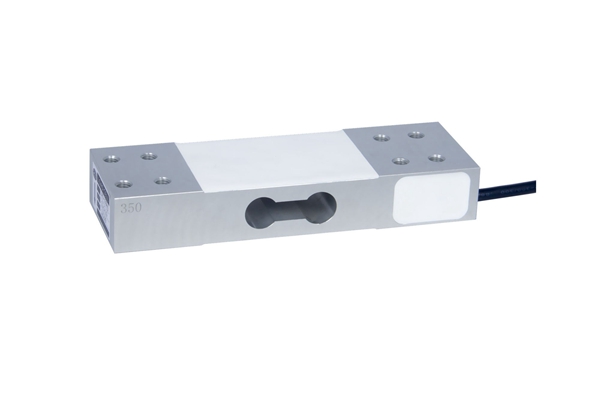

Model: LAD-C1

Brand: LCT

Capacity: 60,100,150,200,300,500 (kg)

Usage: Mainly used for price computing scales,counting scales,platform scales etc.

Dimension: 186*30*60mm

Features

  • parellel bending beam

  • capacity:60kg,...,500kg

  • accuracy:0.02%R.O.

  • recommended platform size:600*600MM

  • aluminum construction with surface anodized

  • environment protection class:IP65

Applications

  • price computing scales

  • counting scales

  • weighing scales

  • retail scales

  • bench scales

  • platform scales

Description

LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.

Advantages of LCT Single Point Load Cells / Platform Load Cells:

Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.

Model LAD-C1 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAD-C1 load cells can be used to measure loads range from 60kg to 500kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)

LAD-C1 load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales and platform scales.

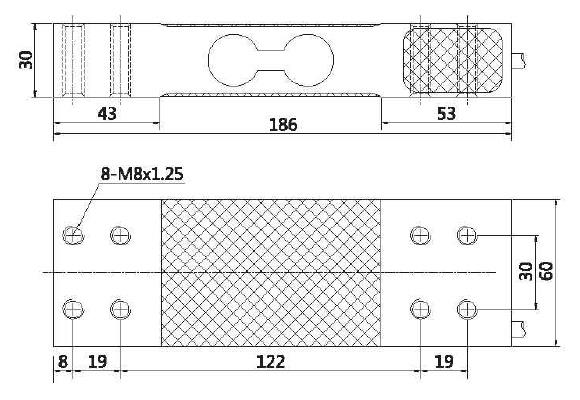

Dimension

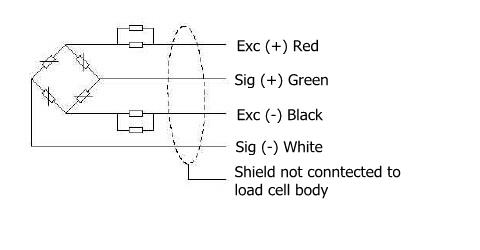

Electrical Connection


Technical Data

Single point load cells
LAD-C1
Rated Capacity60,100,150,200,300,500 (kg)Excitation,Recommended5-12VDC
Accuracy ClassG Excitation,Maximum 18VDC
Rated Output 2.0±5%mV/VOperating Temp.Range-20-+60?
Zero Balance±5%R.O.Safe Overload150%R.C.
Input Resistance405±10OOUltimate Overload200%R.C.
Output Resistance350±3OO Insulation Resistance=5000MO(50VDC)
  Cable,Lengthø5mm×2m *
Linearlty Error±0.015%R.O.Protection ClassIP65
Repeatability Error±0.01%R.O.
Hysteresis Error±0.01%R.O.
Creep in 30 Min.±0.02%R.O.
Temp.Effect on Output±0.02%R.O./10?
Temp.Effect on Zero±0.02%R.O./10?
Compensated Temp.Range-10-+40?
