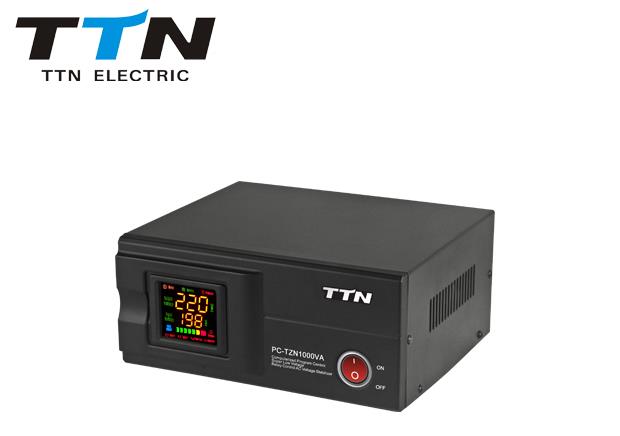

PC-tzn500va-2000va Relay Control Voltage Regulator

  • Description
Product Detail

MODEL

PC-TZN500VA

PC- TZN 800VA

PC- TZN1000VA

PC- TZN1500VA

PC- TZN 2000VA

TECHNOLOGY

RELAY CONTROL SYSTERM+MICRO    COMPUTER PROGRAMED CONTROL





LED DISPLAY

INFORMATION

INPUT VOLTAGE/OUTPUT    VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION





PROTECTION

Over Voltage

Output Voltage=243±4v

Low Voltage

Output    Voltage=188v±4v

Over Loading

More Than 120%

Over Temperture

120?±10?

Delay Time

Long time(255    seconds)/Short time(5 seconds)

Creepage



Language

English/Russia/Chinese

Input Voltage

AC150-270V(A    TYPE);AC135-AC270V(B TYPE)
     AC105-AC270(C    TYPE);AC80V-AC270V(DTYPE)

Output Voltage

220+/-10% adjustable

Frequency

50Hz/60Hz

Phase

Single phase

Efficency

=90%

Ambient Temperature

-15?-45?

Relative humidity

<95%

Waveform distortion

No additional wave    from distortion

Insulation resistance

Normally more than    2MO

Power

500VA

800VA

1000VA

1500VA

2000VA

Packing size(cm)

47.5*28.5*41.5

47.5*28.5*41.5

47.5*28.5*41.5

47.5*28.5*41.5

47.5*28.5*41.5

Packing (pcs)

6

6

6

6

6

G.M(KGS)

17.00

18.66

20.56

21.85

27.35
