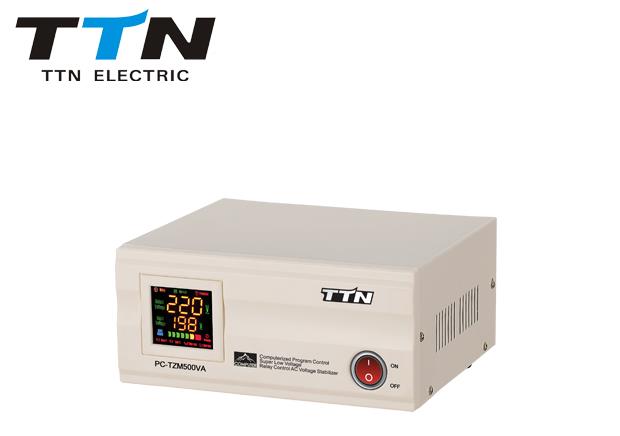

PC-tzm500va-2000va Relay Control Voltage Regulator

  • Description
Product Detail

1.PC-TZM series Relay control voltage stabilizer has the low energy consumption,the over voltage protection,the low voltage protection,the over-current protection,the over-loading protection,the over-temperature protection and so on.It boasts for many kinds of protections,the collection energy conservation and the environmental protection ect.This is a brand-new  concept product which possess many new technologies!This series products simultaneously ha applied  for many technical monopolies
   We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1 and Appearance paten NO: 200730025909.3
2. Use for equipment:
   Computer
   Test equipment
   Light system
   Safe alarm system
   Ray equipment
   Medical equipment
   Copy machine
   Stereo equipment
   Numerical control machine tools
   Industrial automation equipment
   Color and drying equipment
   Test equipment
   Hi-Fi equipment

3.PERFORMANCE

MODEL

PC-TZM500VA

PC- TZM 800VA

PC- TZM1000VA

PC- TZM1500VA

PC- TZM 2000VA

TECHNOLOGY

RELAY CONTROL SYSTERM+MICRO    COMPUTER PROGRAMED CONTROL





LED DISPLAY

INFORMATION

INPUT VOLTAGE/OUTPUT    VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION



PROTECTION

Over Voltage

Output Voltage=243±4v

Low Voltage

Output    Voltage=188v±4v

Over Loading

More Than 120%

Over Temperture

120?±10?

Delay Time

Long time(255    seconds)/Short time(5 seconds)

Creepage



Language

English/Russia/Chinese

Input Voltage

AC150-270V(A    TYPE);AC135-AC270V(B TYPE)
     AC105-AC270(C    TYPE);AC80V-AC270V(DTYPE)

Output Voltage

220+/-10% adjustable

Frequency

50Hz/60Hz

Phase

Single phase

Efficency

=90%

Ambient Temperature

-15?-45?

Relative humidity

<95%

Waveform distortion

No additional wave    from distortion

Insulation resistance

Normally more than    2MO

Power

500VA

800VA

1000VA

1500VA

2000VA

Packing size(cm)

47.5*28.5*41.5

47.5*28.5*41.5

47.5*28.5*41.5

47.5*28.5*41.5

47.5*28.5*41.5

Packing (pcs)

6

6

6

6

6

G.M(KGS)

17.00

18.66

20.56

21.85

27.35
