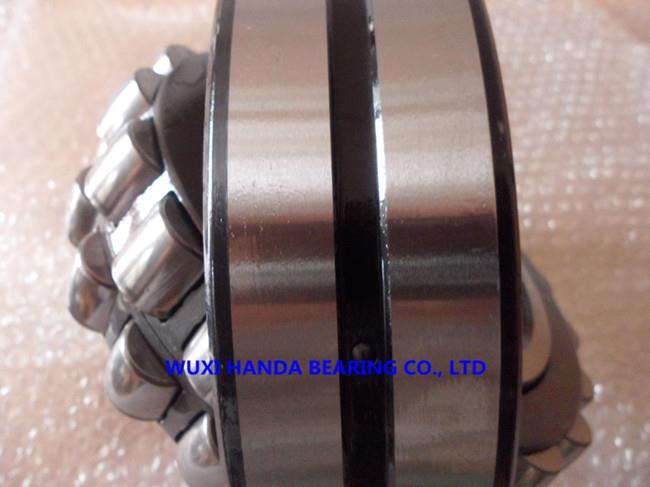

OEM Double Row Spherical Roller Bearing 22222 E
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
Product Description:
Bearing Type | Spherical Roller Bearing |
Part No. | 22222 E |
Bore Size | 110mm |
Outer Diameter | 200mm |
Thickness | 53mm |
Number of Row | Double |
Brand | HDBB, SKF, OEM |
Material | Chrome Steel |
Seal Type | Open |
Basic Dynamic Loading Rating | 572 kN |
Basic Static Load Rating | 640 kN |
Fatigue load limit | 63 kN |
Reference Speed | 3000 r/min |
Limiting Speed | 4000 r/min |
Clearance | C0,C2,C3,C4 |
Mass | 7kg |
Sample | Free of Charge |
Product Description
Spherical Roller Bearing
Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
Bearing performance is not only determined by load or speed ratings. There are a number of other factors that contribute to bearing performance. To a large extent, performance is influenced by the geometry of the rollers, raceways and cages, the heat treatment, as well as the surface finish of all contact surfaces. All YNR spherical roller bearings contain strong metal cages. This enables them to tolerate high temperatures and all lubricants.
22205/20E | 20 | 52 | 18 | 49.9 | 44 | 4.75 | 13000 | 17000 |
BS2-2205-2CS/VT143 | 25 | 52 | 23 | 49.9 | 44 | 4.75 | 3600 | |
22205EK | 25 | 52 | 18 | 49.9 | 44 | 4.75 | 13000 | 17000 |
21305CC | 25 | 62 | 17 | 49.1 | 41.5 | 4.55 | 9300 | 12000 |
22205E | 25 | 52 | 18 | 49.9 | 44 | 4.75 | 13000 | 17000 |
22206EK | 30 | 62 | 20 | 66.1 | 58.5 | 6.4 | 10000 | 14000 |
22206E | 30 | 62 | 20 | 66.1 | 58.5 | 6.4 | 10000 | 14000 |
BS2-2206-2CS/VT143 | 30 | 62 | 25 | 66.1 | 58.5 | 6.4 | 2800 | |
21306CCK | 30 | 72 | 19 | 65.7 | 61 | 6.8 | 8200 | 10000 |
21306CC | 30 | 72 | 19 | 65.7 | 61 | 6.8 | 8200 | 10000 |
21307CC | 35 | 80 | 21 | 79.2 | 72 | 8.15 | 7300 | 9500 |
BS2-2207-2CS/VT143 | 35 | 72 | 28 | 88.8 | 83 | 9.15 | 2400 | |
22207EK | 35 | 72 | 23 | 88.8 | 83 | 9.15 | 9000 | 12000 |
22207E | 35 | 72 | 23 | 88.8 | 83 | 9.15 | 9000 | 12000 |
21307CCK | 35 | 80 | 21 | 79.2 | 72 | 8.15 | 7300 | 9500 |
21308E | 40 | 90 | 23 | 107 | 108 | 12 | 7000 | 9500 |
22208E | 40 | 80 | 23 | 98.5 | 91.5 | 10 | 8000 | 11000 |
22308EK | 40 | 90 | 33 | 155 | 137 | 14.6 | 6000 | 8000 |
BS2-2208-2CSK/VT143 | 40 | 80 | 28 | 98.5 | 91.5 | 10 | 2200 | |
22208EK | 40 | 80 | 23 | 98.5 | 91.5 | 10 | 8000 | 11000 |
21308EK | 40 | 90 | 23 | 107 | 108 | 12 | 7000 | 9500 |
22308E | 40 | 90 | 33 | 155 | 137 | 14.6 | 6000 | 8000 |
22308E/VA405 | 40 | 90 | 33 | 155 | 137 | 14.6 | 6000 | 8000 |
BS2-2208-2CS/VT143 | 40 | 80 | 28 | 98.5 | 91.5 | 10 | 2200 | |
BS2-2308-2CS/VT143 | 40 | 90 | 38 | 155 | 137 | 14.6 | 1900 | |
BS2-2309-2CS/VT143 | 45 | 100 | 42 | 190 | 176 | 19 | 1500 | |
22209EK | 45 | 85 | 23 | 104 | 100 | 10.8 | 7500 | 10000 |
22309E | 45 | 100 | 36 | 190 | 176 | 19 | 5300 | 7000 |
FAQ:
1. Q: Are you a factory or trading Company?
A: We are factory.
2. Q: Can I get some samples? Do you offer samples free?
A: We are honored to offer you samples for your evaluation. You only need to pay freight.
3. Q: Could you tell me the material of your bearing?
A: We have chrome steel, carbon steel, and stainless steel, ceramic and plastic material for bearings.
4. Q: Can you give me discount on the bearings?
A: Of course! Please leave us your mail address, you’ll get more.
Lead Time:within 1-7 working days, based on quantity.
Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union
Packing | inside packing | single box (white or color), customization is allowed . |
Plastic tube | ||
Rolling simple packing, | ||
Carton | standard export carton, | |
Pallet | Plywood, steel,plastic pallet.fumigation-free | |
Shipping | By sea, by air, by express,or truck |
-
