High Performance General Type Variable Frequency Drive From China Factory
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail

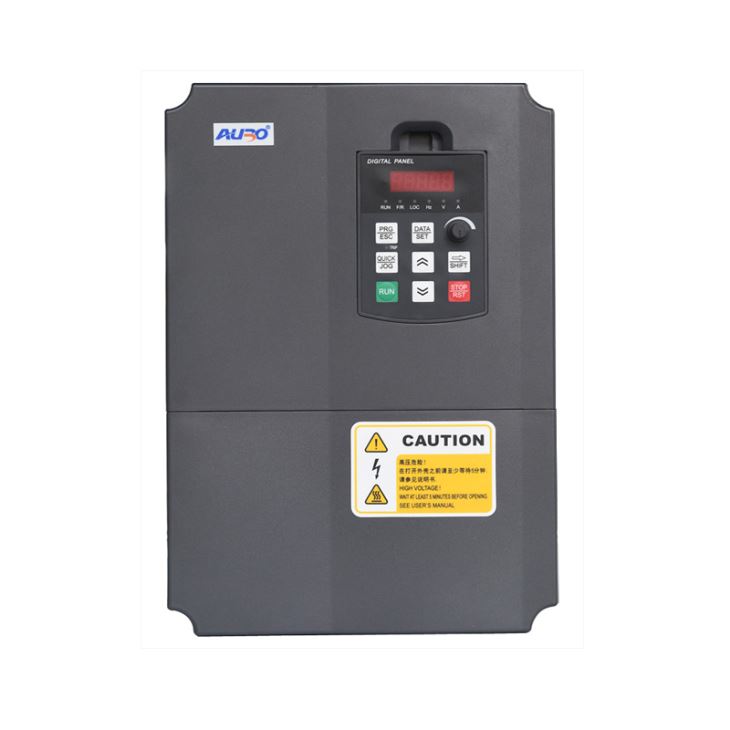

The AVF580 series AC drive is a general-purpose high-performance current vector control AC drive. It increases the user programmable function, background monitoring software and communication bus function, and supports multi-kind PG cards. It is used to drive various automation production equipment involving textile, paper-making, wiredrawing, machine tool, packing, food, fan and pump.High Performance General variable frequency drive. | |
| the AVF580 series AC drive incorporates the following improvements: | |
1) Multiple voltage classes.It provides coverage of single-phase 220 V, three-phase 220 V, three-phase 380 V, three-phase 480 V, three-phase 690 V and three-phase 1,140 V. 2) Control of asynchronous motor and PMSM It supports vector control of three-phase AC asynchronous motor and three-phase AC PMSM. 3) Diversified control modes It supports three control modes, namely, sensorless flux vector control (SFVC), closedloop vector control (CLVC) and V/F control. 4) Multiple communication protocols It supports communication via Modbus-RTU, PROFIBUS-DP, CANlink and CANopen. 5) Multiple encoder types It supports various encoders such as differential encoder, open-collector encoder, resolver and UVW encoder. 6) All-new SFVC algorithm It introduces an all-new sensorless flux vector control (SFVC) algorithm that gives better low-speed stability, enhanced low-frequency loading capacity, and supports torque control. 7) User programmable function The AVF58PC1 programmable card enables you to write programs in ladder diagram. Its programming environment is compatible with that of the H1U series PLC. 8) Advanced background software The background monitoring software helps to achieve functions of parameter upload & download and a real-time oscilloscope. 9) Other new functions.High Performance General variable frequency drive. |
| ITEM | SPECIFICATION | ITEM | SPECIFICATION |
| Max Frequency | Vector control:0~300HZ V/F control:0~320HZ | Carrier Frequency | 0.5kHZ~16kHZ Self-adjustment |
| Input Frequency Resolution | Digital:0.01HZ Analog:Max Freq.*0.025% | Control Methods | SVC,FVC,V/F control |
| Overload Capacity | G Type:150% FLC for 60s;180% FLC for 3s P Type:120% FLC for 60s;150% FLC for 3s | Simple PLC | Through the built-in plc or control section to achieve up to 16 speed operation |
| Built-in PID | To facilitate the realization of process control closed-loop control system | AVR(Automatic voltage adjustment) | When the grid voltage changes, can automatically maintain the output voltage is constant |
| Multi-motor switching | Four sets of motor parameters, can achieve four motor switching control | Multi-threaded bus support | Modbus,Profibus-DP,CANlink,CANopen. |
| Multi-encoder support | Support differential, open-circuit integrated electrode, UVW, rotary transformer, cosine and other encoders. | QUICK/JOG | Functional quick button to be defined by user freely |
| Voltage auto-tuning | When the power supply viberates, the output voltage is kept constant automatically | More than 25 protections | Over current, over voltage, under voltage, over temperature, phase loss, over load, etc. |
High Performance General variable frequency drive.
