High End Bus WiFi Router With SSD Disk
-
Min Order
1
-
Product Unit
Pieces
-
Price
$ 18.29 - 40.33
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail

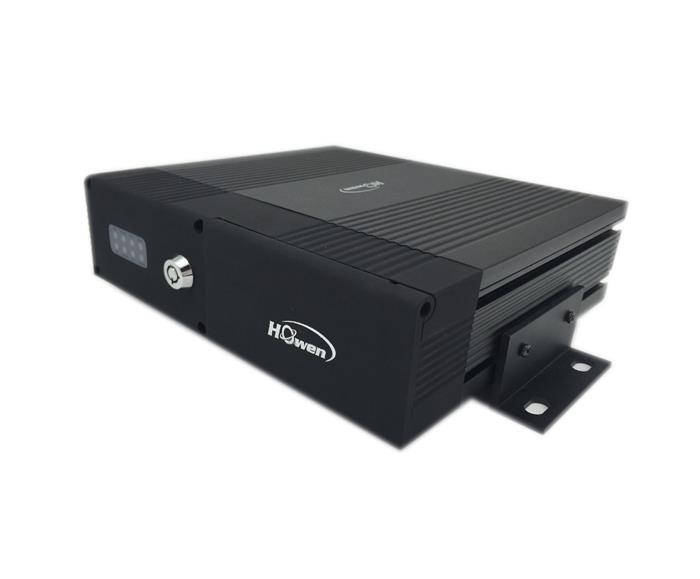

Advanced 3G/4G Bus Wi-Fi Router
HW-WR1642-GWF
Howen WIFI Router, HW-WR1642-GWF, is one of the high end WIFI routers in Howen products lines. It can be applied in many vehicle business as it can support high speed WIFI sharing in the vehicles. Furthermore, it can support HDD/SSD for video or music storage, which can be shared to customers in the vehicles. For more information please check with Howen Technologies.
KEY FEATURE
? Powerful and efficient backend/cloud platform
? Passenger behavior analysis
? Traffic control and device control
? 50+ people Wi-Fi connection
? Stable 3G/4G for uplink, 3G/FDD/TDD module optional, different band optional to adapt to different
? Support SSD for local content accessing
? Support Built-in GPS module for location and LBS
? Ruggedized design for vehicle application
SPECIFICATION
<tr%3???????????????????????E
Model Number | HW-WR1642-GWF | |
Parameter | Specification | |
Hardware | Processor | CPU 930MHz, WI-FI 530MHz |
RAM | 512MB, 128MB | |
Storage | Support 2.5inch SSD for local storage (support max. 1TB) | |
Ethernet Port | 1x10/100/1000Mbps LAN | |
Power | 12V~36V DC, 24V | |
LED | Power; System; 2.4G; 5G; Upgrade; GPS; SSD; Error | |
Power Consumption | Max. 12W | |
Dimensions | 178*164*50 ( mm) | |
Wireless | Frequency | 2.4GHz: 2.400GHz~2.485GHz |
Wi-Fi Power | 2.4GHz: | |
Wi-Fi sensitivity | 2.4GHz: | |
Wireless | WCDMA, EVDO, 4G-LTE | |
AP | IEEE 802.11a | |
Working Mode | AP mode | |
GPS module | Support. | |
Management | Remote management | Yes |
Wi-Fi Access Ability | 60 connections; | |
Traffic control | Yes | |
Website block | Yes | |
Environment | Working Temperature | -20? to 75? |
Storage Temperature | -40? to 85? | |
Working Humidity | 0% to 90%RH no condensation | |
Storage Humidity | 5% to 90%RH no condensation |

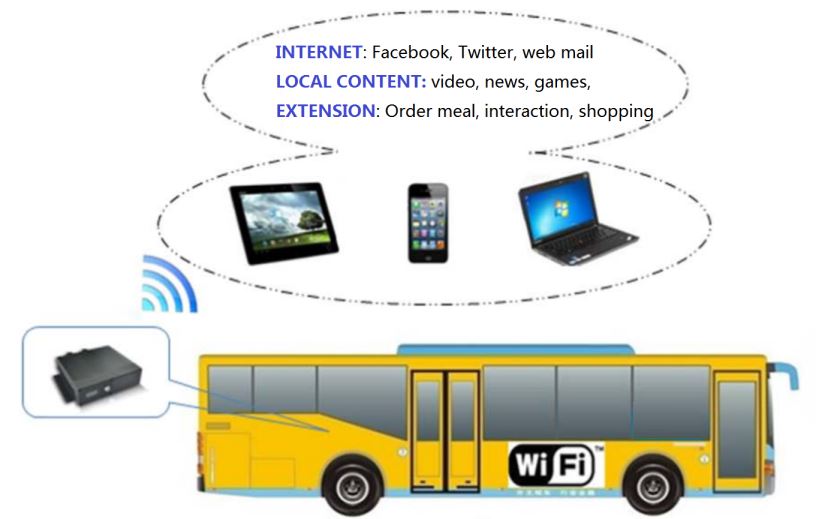

APPLICATION
Free Access to Internet
Pad, smart phone, notebook, MDVR, multi-media screen, etc.
Local storage
Support SSD for large capacity of local storage; provide high-speed access for local video, music, games, tourism guidance, news, etc.
Efficient Advertisement
Local web service provides advertisements. Operators can cooperate with local shoppers, companies, to provide ads to efficient target, improving company images.
Passenger behavior analysis
With technology of Big-data, Howen router system can analyze the traffic usage, online-offline time, web access, advertisement effect, and offer scientific analysis result to innovate more value-added service and build Win-Win business
Content update
Support SSD or SD for large storage, and 3G/4G and Wi-Fi for wireless content updating. When use Wi-Fi, will greatly save 3G/4G traffic.
Web Service
Editable Web service to provide rich customization for operators
GPS location
Provide location service using GPS, GIS, and 3G/4G, to achieve LBS (Location-based service)
Traffic control and Web Access control
To save 3G/4G cost, Howen advanced vehicle router can freely manage the traffic limitation, i.e. block some website that consume too much traffic. And the web access time for users is configurable.
Remote Device Management
Howen provide backend platform to remotely manage all the routers. Tens of thousands of devices can be easily configured and upgraded in one system
Integration with Howen VSS system
Package List
S/N | Item | Quantity |
1 | Router unit | 1 |
2 | GPS antenna | 1 |
3 | 2.4G WIFI antenna | 1 |
4 | 3G/4G antenna | 1 |
5 | Power cable | 1 |
6 | SSD 32GB | Optional |
7 | Mounting screw | 4 |
8 | Key | 2 |
9 | Fuse | 1 |
Dedicated to manufacturing high quality and newest high end bus wifi router with ssd disk, Howen Technologies is famous as one of the best high end bus wifi router with ssd disk manufacturers and suppliers in China. Our products has FCC, CE and EMARK certification and it is sold at competitive price. Don't hesitate to buy one with our professional factory.
-
