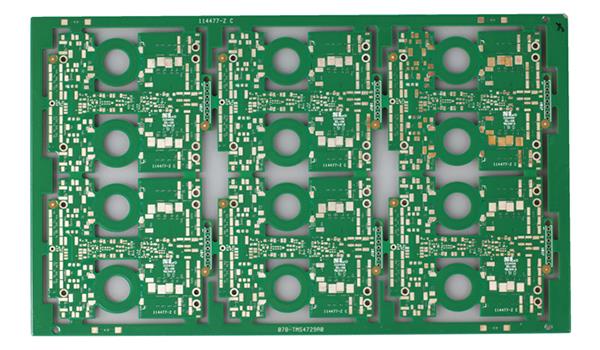

Heavy Copper PCB

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

Union Circuits is a Professional Heavy Copper PCB Manufacturer located in Shenzhen of China, we can make up to 20OZ thick copper PCBs, most of them are used for high power distribution, heat dissipation, power converters and planar transformers etc, with HASL, Lead-free HASL, Immersion Gold/ Silver/ Tin surface finishes.

General Specification

Layer Count	2~16
Material	FR-4(Tg130), FR-4(Tg170)
Finished Thickness	1.6~6.5mm
Finished Outer Cu Thickness	3/3OZ, 4/4OZ UP TO 20/20OZ
Finished Inner Cu Thickness	3/3OZ, 4/4OZ, 6/6OZ, 8/8OZ
Surface Finish	HASL, Lead-free HASL, Immersion Gold/ Tin/ Silver
Soldermask	Green, White, Black
Silkscreen	White, Black
Panel Size	Minimum 30x50mm, Maximum 600x1000mm

Attention: “These are the basic specifications we gonna to need for your Printed Circuit Board fabrication, if you need a quick quote or going to order soon, to save time please kindly provide all the fabrication details to us, of course if there were any other special requirements or details out of this specification, please also comment so we can consider it in our quotation.” --From Union Circuits Engineering dept.

Condition & Terms

MOQ	1 Piece
Production Lead Time	5~10 Working Days Quick turn, 6~15 Working Days mass production
Min. Drill Hole Size	0.5mm
Min. Trace Width/Spacing	6/6mil
Data Format	Gerber RS-274-D/X, .pcb, .pcbdoc, .cam, ODB++, CAD
E-Test	100% E-test(cost included in the Unit Price, NO extra charge)
Certifications	UL, CUL, ISO9000, ISO14001, TS16949.
Standard	IPC-A-600H Class 2(default), Class 3 (base on request)
Application	Power supply, Automotive, Communication, Heat Dissipation, Power switch…
Packing	Inner vacuum + foam, Outer carton box
Shipping	DHL(default), UPS, TNT, FedEx, EXW, FCA/FOB HongKong, By Sea
Payment	T/T, PayPal, Western Union (USD, EUR)
