Product Detail
BANGYE is one of the leading foot pedal valves 4f manufacturers and suppliers in China with one the best brands, welcome to buy discount, cheap and newest foot pedal valves 4f and wholesale our low price and high-quality products from foot pedal valves 4f OEM and ODM factory and company, and also welcome to check the price with us.

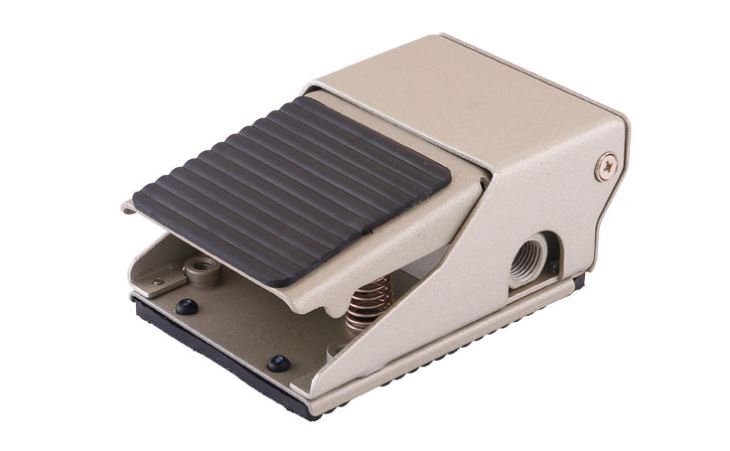

FOOT PEDAL VALVES 4F SERIES
PRODUCT OVERVIEW
4F foot pedal valves are designed with direct acting, which are steady and reliable.
TECHNICAL DATA
Operating Medium | Air filtered by 40µm filter element |
Version | Acting type controlled by foot |
Valve Type | 5 port 2 position-3/2 or 3 port 2 position-3/2 |
Lubrication | Not Required. Once lubricated air is used, continue with same medium to optimize valve life span. |
Operating Pressure | 0-1.0Mpa |
Proof Pressure | 1.5Mpa |
Operating Temperature | -20-70? |
| Body Material | Die casting aluminum |
