Automatic Plastic Pipe Butt Fusion Machine

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

automatic plastic pipe fusion machine introduction

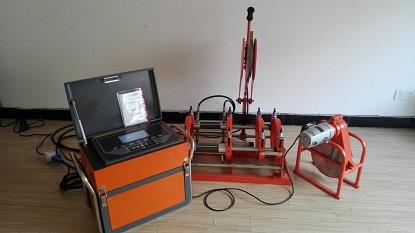

This BRDHA-250 is one of the automatic welding machines, using the PLC to operate the pe pipe welding job. Use 220V and 40 to 60 Hz power supply. The engineer can do the job according to the manual process, to finish the pipe welding. This is the new plastic pipe fusion machine that all operations are completed by program control.

It is suitable for building PE, PP and PVDF pipes and pipe fittings on site. It can also be used in workshop. All models can meet ISO, DVS and China's welding standards.

Characteristic:

The frame is more convenient for field construction.

The clamps can be opened in a convenient way for holding the pipe stable.

With the hot plate pull off , that can automatically and conveniently make the hot plate and pipe separately.

The internal clamps that meets the ISO standard ensures the precision of welding pipe.

Hydraulic hdpe pipe welding machine Specifications

Model	BRDHA-250
Total Power (kw)	3.7
Power of Heating Plate (kw)	2.0
Power of Milling Cutter (w)	0.9
Environment Temperature (?)	-10—40
Voltage (v)	220±10%
Power Frequency (Hz)	40—65
Time Error	=±0.01%
SDR Range	11/13.6/17/17.6/21/26/33
Overcurrent Protection (A)	32
Motor Insulation Grade	E
Temperature of Heating Plate (?)	100—300
Temperature Difference of Heating Plate (?)	=±5
Heating Plate Setting Temperature	Auto
Heating Plate Ejection	Auto
Protruding Height	Auto
Endothermic Time	Auto
Drag Pressure	Auto
Connecting Pressure	Auto
Cooling and Pressure Holding	Auto
Data Storage	SD card and U disk, max. extension of 32GB
Cable Length	=3.5m
Connecting Tolerance(mm)	0.5
Pipe Diameter Range (mm)	110—250

Plastic pipe fusion machine Equipment characteristics
1. 7-inch and 16-bit true color (64K color) touch screen.
2. Two operating modes of touch screen and button.
3. Chinese and English input keyboards, built-in virtual keyboard for Pinyin input.
4. Each welding procedure has the flash animation hints.
5. Real-time detection of various abnormal conditions and automatic termination of welding.
6. Ultra wide power supply voltage and power frequency input, fully adapt to the construction site electricity restriction.
7. Data can be exported by using U-disk or SD card. The storage capacity can be expended to max. of 32GB.

Application of automatic plastic pipe fusion machine: Applied to do the pe pipe welding job on-site or in the workshop. Save the job time and keep it much safer with the automatic system detection. Friend UI from the touch screen for engineer operating the pe pipe welding job.

Experience and markets:
Company founded in 2007, and in 2015, we started to R&D this fully automatic welding machine. In 2017, this automatic series machines realized mass production for our customers all over the world.

Advantages
Friendly Operation UI--Support physical buttons and touch screen operations at the same time.
Technical Innovation--Independent R&D with new automatic technology.
Customized Service--According to our customers, we can provide the customize automatic welding machines design and production, also with the OEM&ODM service.
Standardization--All machine design and production comply with industry standards.
Certification--Improve the competitiveness of the company's products through industry certification, like ISO, UKAS, ECM, etc.

Our Service
? Technical consultancy for the automatic welding machine.
? All customers are welcome to visit the company at any time.
? Customized service and OEM/ODM any time.
? Guarantee technical support remote or on site.
? Timely follow-up of all orders after sold.
? 24 hours after-sale support service.

PE pipe welding machine process
A:)Ordering
B:)Designing
C:)Developing
D:)Program Debugging
E:)Electric Testing
F:)Hydraulic Testing
G:)System Testing
H:)Processing
I:)Inspecting
J:)Packing

QUALITY ASSURANCCE
? All the equipment has a quality guarantee and operation manual.
? All information required for export, including proforma invoices and contracts.
? Free software upgrades and bug modifications.
? Strictly software and hardware testing before processing.
? 100% inspection before the machines start to shipment.
? Operation manual of equipment and regular training for inspection staff.
? Remote and on-site technical support and training for all clients.
