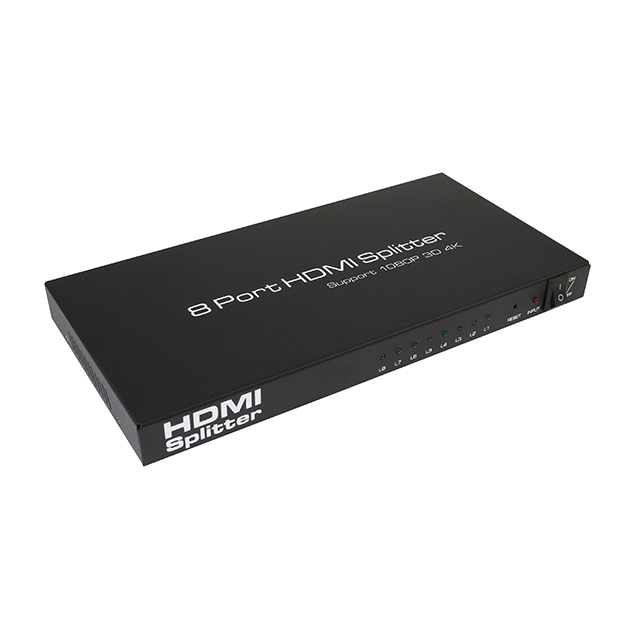

1x8 HDMI Splitter 4K*2K (VU-S04)

FEATURES
One HDMI 14a input signal split to eight HDMI 14a sink devices
SupportFull HD, Full 3D
Support 4K*2K resolution
Support CEC
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM71/DTS/Dolby-AC3
/DSD/HD(HBR)
Support signal retiming
Support input up to 12metres AWG26 HDMI standard cable length,
output up to 12metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/3A power supply

SPECIFICATIONS:
HDMI resolution………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………………24bit/deep color 30bit,36bit, 48bit
Support audio format……………DTS-HD/Dolby-trueHD/LPCM71/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth…………………………………………………340MHz
Max baud rate……………………………………………………102Gbps
Input/Output TMDS signal …………………………………05~15Volts p-p(TTL)
Input/Output DDC signal …………………………………… 5Volts p-p (TTL)
Input cable distance… …………………………………………=12m HDMI AWG26
Output cable distance………………………………………=12m AWG26 HDMI standard cable
Max working current…………………………………………………… 3A
Power adapter formatInput: ……………AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Operating Temperature range……………………………………………………… (-15 to +55?)
Operating Humidity range………………………………5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………………………… 280X138X25(mm)
Weight…………………………………………………………871g
