130S281-6004A

  • Description
Product Detail

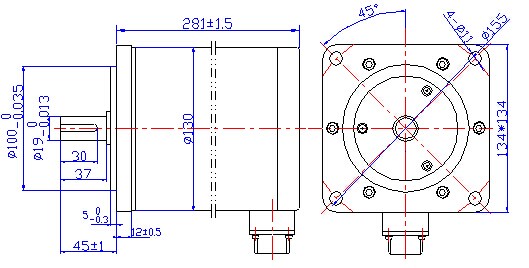

PRODUCT MODEL 130S281-6004A
PRODUCT DESCRIPTION
Stepper motors are  motion systems allowing to have a high positioning precision.
With their high power already at low speed, their stall torque and the possibility to divide the steps in microsteps, stepper motors can provide direct and precise motions in a small volume.
Permanent magnet and hybrid technologies are used to provide a full range of  solutions.

ITEM

SPECIFICATION

Size

130 mm

Phases

2

Step Angle

1.8°

Rated Voltage

10.2 V

Current/Phase

6.0 A

Resistance/Phase

1.7 O

Inductance/Phase

35 mH

Holding Torque

63.63 Nm

Rotor Inertia

45000 g-cm²

Weight

23 Kg

Number of Leads

4

Length

281 mm
