Wooden 3D Wall Panel

  • Description
Product Detail

Wooden 3D Wall Panel

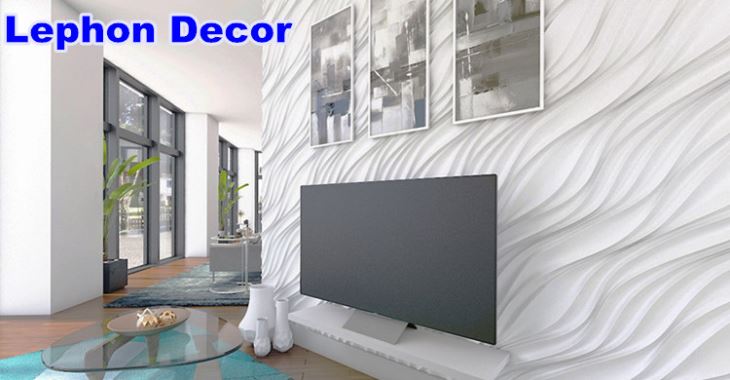

3d Wall Panel (wave board, carved panel) is the leading part in interior design; Both wave panels and decorative grille board have elegant 3D effect, suit for all types of interior design concepts achieving your utmost preference.



Product Details

Model


Core Material

MDF/HDF – Medium/High Density Fiberboard

Surface

Plain (raw material); painting

Back Finish

Melamine paper

Size

1220x2440mm, or customized

Thickness

12mm,15mm,18mm,21mm,25mm

MDF Density

720kg/cubic meter~830kg/cubic meter

Fireproof Grade

GB8624 02006 B, A

Eco-friendly Grade

E0, E1

Weight

About 25 kgs/pc.

Load Quantity

20GP: 400 pcs., 40GP: 800 pcs. (for 15mm thk)

MOQ

No MOQ

Lead time

About 10 days, or based on order quantity

Storage

In horizontal position in order to avoid deformations


Physical and Mechanical Properties:

Internal bonding strength

0.75 Mpa

Static bending strength

36.3 Mpa

Bending modulus

3420 Mpa

Thickness swelling

11.7%

Resistance to screw withdrawal (board side)

950 N

Resistance to screw withdrawal (board surface)

1670 N

Moisture content

6.4%

Density

776 kgs/m³

Board density deviarion

+7%  /  -1.3%

Water Absorption

6-8% without exterior coating 2% when exterior coating is applied



Lephon Factory:

Lephon factory have been specialized in designing and manufacturing of 3d wall panels for more than 10 years. Most of Lephon staff are very professional at carving, polishing, painting. Lephon’s MDF Wave Boards & Decorative Grille Panels have always been made by 3 times hand-polishing, and painting. Through several times hand-made rough grinding, fine grinding, primer coating & finish coating, Lephon always offer best quality and service to every customers.



ProductionProcess:




Features:

1. Elegant and modern designs

2. Good resistance to water, humid environment

3. Less expensive and cost-effective

4. Easy to store and installation



Applications:

home, offices, halls, party, hotel, factory, workshop, restaurant, theatre, etc. for interior decoration



Installation:

1. Clean the Surface where you will install the panels

2. Apply glue on wall and panel (fast bonding spraying glue recommended)

3. Stick panels on the wall. Use pins or apply pressure on four corners and edges of the panel



Package:

Painted panel: each piece wiped with bubble bags to one carton

Raw panel: every two panels in one carton box without pearl wool

Customized packing is also available




Advantage:

1. International business experience in Wooden 3D Wall Panels.

2. Professional Sales Team provide excellent serive.

3. Excellent after-sales serve for long-term cooperation but not one-time job.

4. Take responsibity for any quality issue caused by production.

5. Take serious quality control, supply QC report to clients before deliver.
