Vibration Damper

  • Description
Product Detail

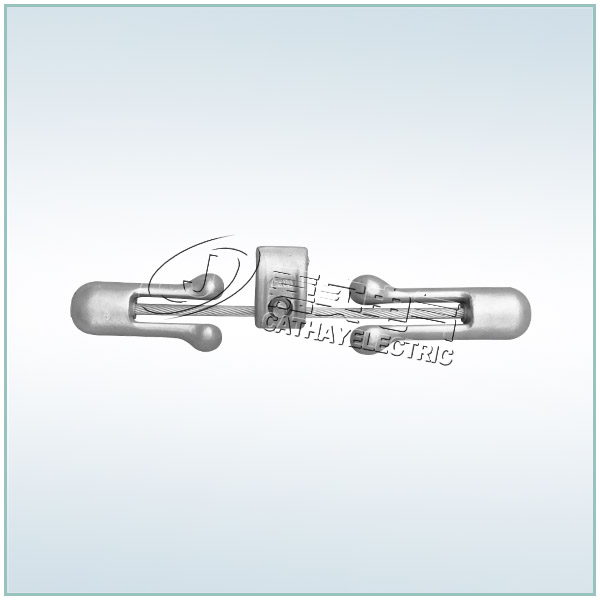

Vibration Damper

Vibration Damper include type FR, Type FD and FG

Vibration Dampers (Type FR)


The parameter of Vibration Dampers (Type FR)


Catalog No.

Suitable Conductor Dia

(mm) Dimensions

(kg) Weight

L

L1

L2

h

a

FR-1

9.0-12.0

429

240

189

80

50

2.68

FR-2-01

12.0-15.0

429

240

189

80

50

2.77

FR-2-02

15.0-20.0

429

240

189

80

50

2.78

FR-3-01

18.0-25.0

505

280

225

90

60

4.97

FR-4

25.0-32.0

550

300

250

97

60

7.50

FR-4-42

23.0-42.0

550

300

250

100

60

7.80

FR-7

32.0-37.0

666

333

333

100

70

9.50



Vibration Dampers (Type FD and FG)


The parameter of Vibration Dampers (Type FD and FG)

Catalog No.

(mm2) Conductor Section area

Fig

(mm) Dimensions

(kg) Weight

Steel Wire

AAC & ACSR

L

D

h

FD-1

35-50

1

300

40

40

1.5

FD-2

70-95

2

370

46

55

2.4

FD-3

120-150

1

450

56

65

4.5

FD-4

180-240

1

500

62

70

5.6

FD-5

300-400

1

550

67

70

7.2

FD-6

500-630

1

550

70

75

8.6

FG-35

35

2

300

42

50

1.8

FG-50

50

2

350

46

50

2.4

FG-70

70

1

400

56

60

4.2

FG-100

100

1

500

62

65

5.9
