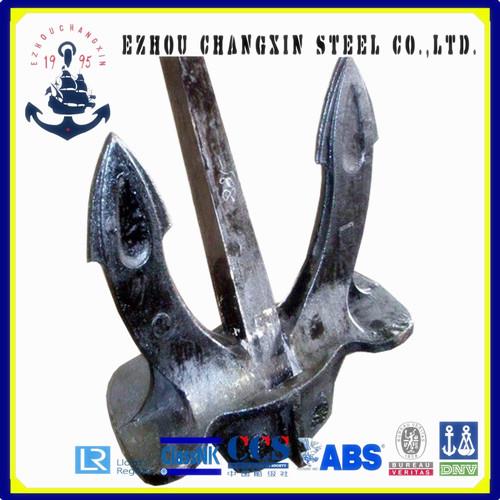

Type ABC Hall Anchor

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

Type A B C Hall Anchor

NOMINAL WEIGHT(KG)	SIZE(mm)
	A			B	C	C1	L	H
	A	B	C	B	C	C1	L	H
40	557	557	430	303	303	67	430	198
60	637	637	492	347	347	76	492	227
100	760	760	590	410	410	90	582	270
125	814	814	629	443	443	97	629	290
150	866	866	665	470	470	103	670	308
180	919	919	710	500	500	110	710	327
240	1019	1019	788	552	552	121	784	361
300	1095	1095	850	595	595	130	844	388
360	1160	1160	898	630	630	138	898	412
420	1222	1222	946	660	660	145	946	434
480	1282	1282	986	690	690	152	988	454
570	1356	1356	1042	732	732	161	1042	481
660	1422	1422	1093	769	769	169	1096	506
780	1506	1506	1159	813	813	178	1160	535
900	1580	1580	1215	855	855	188	1220	560
1020	1645	1645	1268	1011	891	195	1268	584
1140	1705	1705	1316	1072	926	203	1319	605
1290	1778	1778	1378	1093	965	211	1374	630
1440	1844	1844	1448	1130	1001	219	1430	655
1590	1906	1906	1511	1182	1035	226	1475	677
1740	1966	1966	1571	1227	1068	234	1517	698
1920	2031	2031	1602	1272	1104	241	1568	722
2100	2093	2093	1651	1351	1136	249	1614	743
2280	2150	2150	1716	1402	1165	255	1657	763
2460	2207	2207	1785	1432	1194	262	1700	784
2640	2259	2259	1843	1462	1221	268	1741	801
2850	2318	2318	1890	1493	1253	275	1787	822
3030	2374	2374	1935	1529	1283	282	1832	841
3300	2432	2432	1985	1563	1317	288	1880	862
3540	2490	2490	2032	1598	1349	295	1926	883
3780	2547	2547	2077	1376	1376	302	1965	902
4050	2610	2610	2125	1406	1406	309	2008	924
4320	2695	2695	2171	1435	1435	316	2051	943
4590	2712	2712	2216	1465	1465	322	2093	962
4890	2769	2769	2263	1498	1498	329	2135	984
5250	2836	2836	2317	1535	1535	337	2185	1008
5610	2899	2899	2369	1569	1569	345	2234	1031
6000	2965	2965	2422	1605	1605	352	2284	1054
6450	3037	3037	2482	1644	1644	361	2340	1080
6900	3100	3100	2538	1681	1681	369	2393	1105
7350	3173	3173	2592	1717	1717	377	2444	1129
7800	3235	3235	2644	1752	1752	385	2493	1152
8300	3303	3303	2699	1788	1788	393	2545	1176
8700	3355	3355	2742	1816	1816	399	2585	1195
9300	3430	3430	2804	1857	1857	408	2643	1222
9900	3502	3502	2863	1896	1896	417	2699	1248
10500	3571	3571	2920	1934	1934	425	2752	1273
11100	3638	3638	2975	1970	1970	433	2803	1297
11700	3702	3702	3028	2005	2005	441	2853	1320
12300	3764	3764	3079	2039	2039	448	2901	1342
13900	3824	3824	3128	2072	2072	455	2947	1363
13500	3882	3882	3176	2104	2104	462	2992	1384
14100	3939	3939	3222	2135	2135	469	3036	1404
14700	3994	3994	3267	2165	2165	476	3078	1424
15400	4056	4056	3318	2199	2199	483	3126	1446
16100	4117	4117	3368	2232	2232	490	3173	1468
16900	4184	4184	3423	2268	2268	498	3225	1492
17800	4252	4252	3479	2308	2308	506	3281	1518
18800	4330	4330	3543	2350	2350	516	3341	1546
20000	4420	4420	3617	2399	2399	526	3411	1578

Authentications

Our company passed the ISO9001-2008 quality management system certification, with strict quality management system that can operate and provide China “CCS” Classification Society, the British “LR” classification societies, Germany “GL” classification societies, the United States “ABS“Classification Society“, Korea”KR” classification societies, Italy”RINA” classification societies, Norway”DNV“Classification Society, Japanese”NK”classification societies, France”BV“Classification Society qualification. With first-class device, reliable quality assurance, products are exported to the United States, Canada, Japan, more than 30 countries and regions, gained high reputation.
