TDS Series Touch-Screen Digital Oscilloscope
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
- 70MHz-200MHz Bandwidth, Max 2GS/s Sample rate
- 7.6M record length
- 50,000 wfms/s waveform capture rate
- waveform zooming (horizontal / vertical), and saving
- FFT points (length, and resolution variable)
- multi-window extension
- 8 inches 800 x 600 pixels high def LCD
- multi- communication interface : USB, VGA, LAN
- LabVIEW supported
| Model No. | Channel | Bandwidth | Sample Rate | Record Length |
| TDS7074 | 4 | 70MHz | 1GS/s | 7.6M |
| TDS7104 | 4 | 100MHz | 1GS/s | 7.6M |
| TDS8104 | 4 | 100MHz | 2GS/s | 7.6M |
| TDS8204 | 4 | 200MHz | 2GS/s | 7.6M |

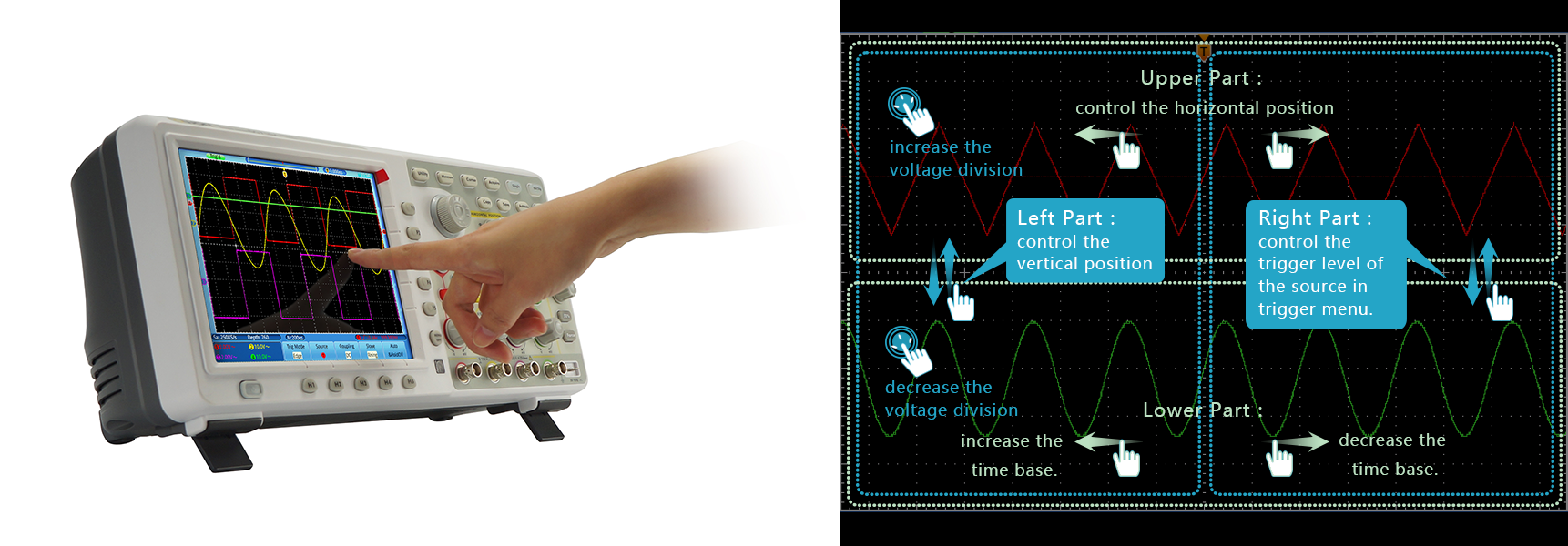

1. Touch screen
2. Powerful waveform capture rate
Up to 50,000 wfms/s waveform capture rate, restoring random / low-probability event in fine details.

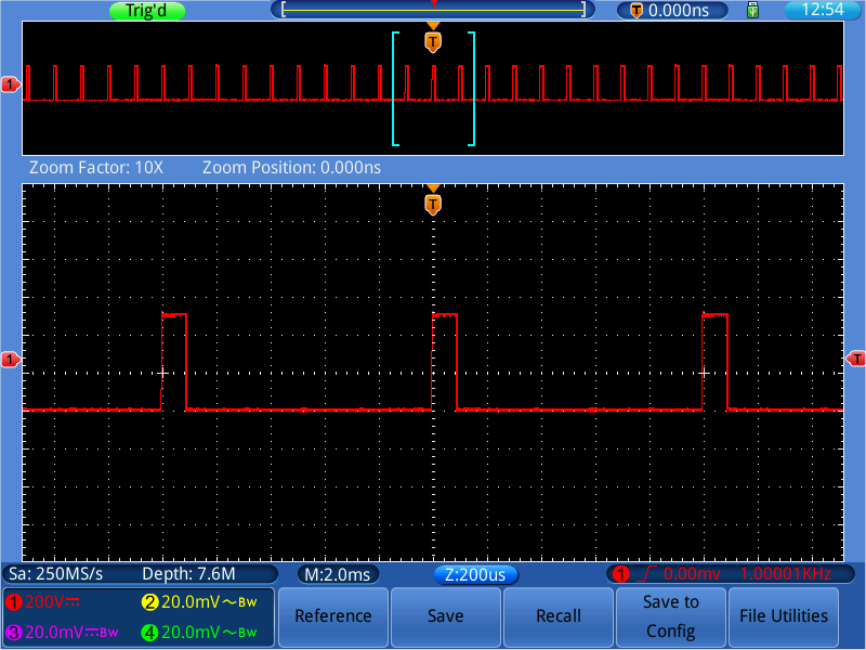

3. Multi- window extension
Double-display, and proportion-zoom realizes waveform detail restoring when observing the whole outline.
| Model | TDS7074 | TDS7104 | TDS8104 | TDS8204 | |
|---|---|---|---|---|---|
| Bandwidth | 70MHz | 100MHz | 200MHz | ||
| Channel | 4 | ||||
| Sample Rate | 1GS/s | 2GS/s | |||
| Waveform Capture Rate | 50,000 wfms/s | ||||
| Display | 8" touch screen color LCD | ||||
| Record Length | 7.6M | ||||
| Horizontal Scale (s/div) | 2ns/div - 100s/div, step by 1 - 2 - 5 | ||||
| Vertical Resolution (A/D) | 8 bits resolution (4 channels simultaneously) | ||||
| Vertical Sensitivity | 2mV/div - 10V/div (at input) | ||||
| Trigger Type | Edge, Pulse, Video, Slope | ||||
| Trigger Mode | Auto, Normal, Single | ||||
| Waveform Math | +, -, ×, ÷, FFT | ||||
| Communication Port | USB host, USB device, VGA, LAN?AUX | ||||
| Dimension (W×H×D) | 380 × 180 × 115 (mm) | ||||
| Weight (without package) | 1.5 kg | ||||
