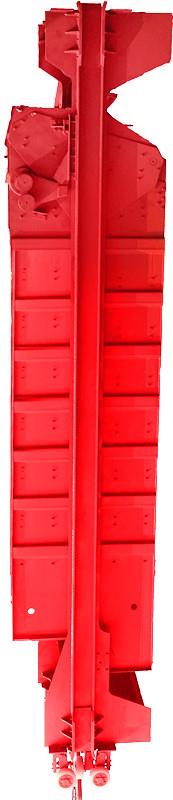

Skip
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
If you are looking for skip China from best skip bucket suppliers, please feel free to contact Jinyuan Mining Machinery.
Specifications of the skip
Drwing NO. | Model | Geometrical cubage m3 | Max. load kg | (mm) Space of the guide | Dimension of the guide mm×mm | Block size of ore mm | Weight kg | Remarks |
FJD1.2 | 1.2M3Retroflexed skip tipping | 1.2 | 4500 | 600×1195 |
|
| 2006 |
|
FJD1.38 | 1.38M3Retroflexed skip tipping | 1.38 | 2600 | 1120 | 180×150 |
| 1641 |
|
CJ551 | 2.1m3Retroflexed skip tipping | 2.1 | 4500 | 1250 |
|
| 2973 |
|
6215 | 2.5M3Retroflexed skip tipping | 2.5 | 3500 | 1316×680,1240 Steel rope rigidity |
|
| 4184 |
|
FJD3.2 | 3.2M3Retroflexed skip tipping | 3.2 | 5000 | 1446×740,1390 Steel rope rigidity | 120×95 |
| 5076 |
|
FJD4.5 | 4.5M3Retroflexed skip tipping | 4.5 | 8000 | 1390 | 180×180 |
| 6284 |
|
FJD4.0 | 4.0M3Retroflexed skip tipping | 4 | 7200 | 1390 | 180×180 |
| 5854 |
|
GL2/JD2.87 | 2.87M3Retroflexed skip tipping | 2.87 | 5000 | 1120 |
|
| 5100 |
|
06292 | 3.2Multi-ropes bottom-dump skip | 3.2 | 7000 | 1370 | 200×180 | =350 | 7700 |
|
06221 | 11T bottom-dump skip | 7.23 | 11000 | 1370 | 200×180 | =350 | 10990 |
|
06316 | 6.3M3 bottom-dump skip | 6.3 | 10000 | 1370 | 180×180 | =350 | 10507 |
|
13829 | 7M3 bottom-dump skip | 7 | 10500 | 1370 | 200×180 | =350 | 10500 |
|
YJD11 | 14M3 bottom-dump skip | 14 | 30000 | 1976,2140 Rigidity steel rope | 220×120 | =350 | 17500 |
|
YJD12 | 17M3 bottom-dump skip | 17 | 36000 | 2360,2410 Rigidity steel rope | 240×115 | =350 | 23810 |
|
