SAE Flange T Block
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
Jiahe Seiko Forging & Casting Co.,Ltd is one of the leading China sae flange t block manufacturers, equipped with a productive factory, welcome to wholesale cheap sae block flange from us.

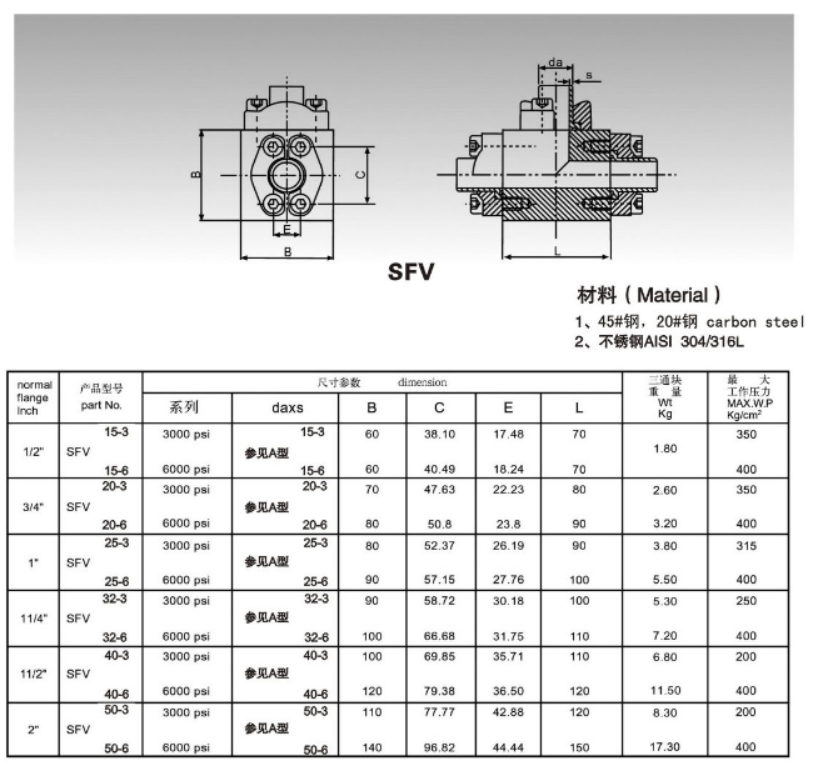

Properties
Pressure series | 3000 psi /6000psi |
Standard | SAE J518, ISO 6162 |
Construction | T shape |
Material | Carbon steel: 45# 20# |
| Stainless steel: 1.4571 1.4301 1.4306 1.4404 1.4435;ASME/ASTM:A182- |
Design | SAE flange T block |
Mounting | with metric screw set |
Included in scope of supply | 1 block,3pcs of SAE flanges,3 pcs O rings,1set of screws and bolts |
Surface | Rust-proof oil, Yellow or white Galvanized |
MAX working pressure | 35-400 kg/cm3 |
Package | Wooden case,Cartons, Pallets or crates according to buyer's requirements. |
Applications | Water works,shipbuilding industry, petrochemical&gas industry, power industry,valve industry,general pipe |
Note
The stated maximum working pressure relates to the flange. The actual working pressure is determined by the pipe (wall thickness) and the quality of the pipe.
Recommended screws are listed in the columns M (metr) and M (unc).
