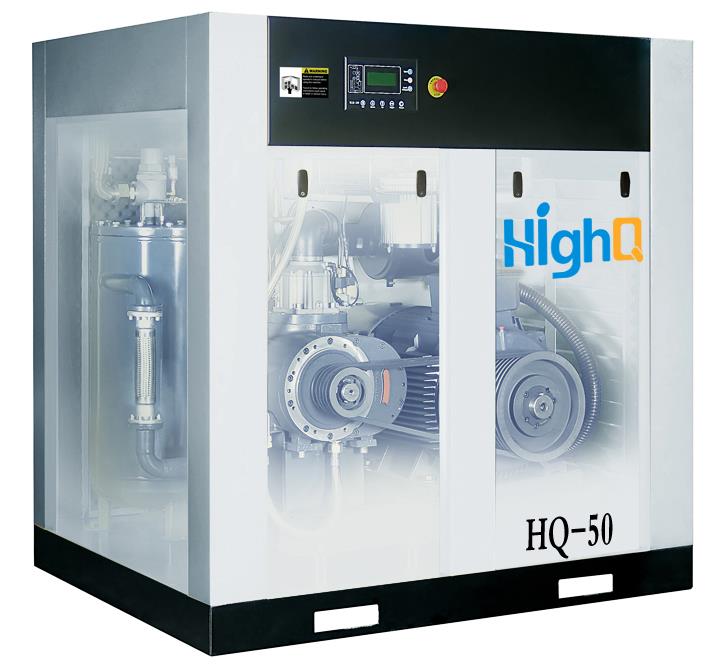

Rotorcomp air-end Screw Air Compressor

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing rotorcomp air-end screw air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.

Basic Info

Product Detail
?Model NO.: HQ-60D
?Type: Screw
?Performance: Low Noise
?Drive Mode: Electric
?Power Source: AC Power
?Configuration: Stationary
?Material: Cast Iron
?Lubrication Style: Oil-less
?Air Flower 1.28-8.10m/Min: Work Pressure 7-12.5bar
?Performance :Low Noise: Export Markets :Global
?Type:Direct: Power Source :AC Power
?Trademark: HighQ
?Specification: CE TUV
?Origin: China
?HS Code: 8414809090

Product Description
Features,
high-qualityhigh efficiency Low noise energy saving
1-Air -End Made in German. GHH-RAND and ROTORCOMP VERDICHIER GmbH. To assure its excellent performance Recognized throughout the world as a superior air-end because of it's superior performance under all conditions and they are recognized as the worlds best Air End being used in other major brand names- German made
2- Ally-win air end from Germany, the most advanced airend in the world.
3 - Original imported key components
4- Low Energy Consumption,Low running,maintenance cost.
5- Unique safe units make whole compressor more safety, more stable,lest noise,lest energy Loss.
6- Easy to install,operate,maintain.

Model		HQ-30D	HQ-50D	HQ-60D	HQ-75D	HQ-100D	HQ-125D	HQ-150D	HQ-175D	HQ-200D	HQ-250D	HQ-285D	HQ-300D	HQ-350D	HQ-380D
Air Delivery/Working pressure (m3/min)		3.95/0.7	6.6/0.7	7.8/0.7	10.8/0.7	13.8/0.7	17.2/0.7	21.5/0.7	25.6/0.7	30.0/0.7	34.2/0.7	38.6/0.7	42.8/0.7	45.0/0.7	49.2/0.7
		3.8/0.8	6.4/0.8	7.5/0.8	10.2/0.8	13.2/0.8	16.5/0.8	20.5/0.8	24.0/0.8	29.0/0.8	33.0/0.8	37.0/0.8	40.0/0.8	43.1/0.8	48.0/0.8
		3.2/1.0	6.0/1.0	7.0/1.0	8.8/1.0	11.2/1.0	15.0/1.0	19.0/1.0	22.0/1.0	26.2/1.0	30.0/1.0	34.0/1.0	36.5/1.0	39.5/1.0	43.2/1.0
		2.8/1.2	4.8/1.2	6.2/1.2	7.8/1.2	10.5/1.2	13.0/1.2	17.5/1.2	19.0/1.2	24.5/1.2	28.0/1.2	32.0/1.2	34.0/1.2	36.3/1.2	40.5/1.2
Cooling Method		Air Cooled
Discharge Temperature(?)		Ambient Temperature + 15?~18?
Lubricant(L)		16	18		54	72		90		110		125		150
Noise Level		65±2 dB(A)			72±2 dB(A)				75±2 dB(A)			82±2 dB(A)
Driving type		Direct Driven
Motor	Power	22	37	45	55	75	90	110	132	160	185	200	220	250	280
Motor	Start Method	Y-? start
Electricity		380V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 460V/60HZ/3P
Dimension LWH		1380	1550	1550	1800	2000	2200	2600	2600	2700	2700	2700	3200	3200	3200
		800	1000	1000	1150	1200	1350	1450	1450	1700	1700	1700	1950	1950	1950
		1300	1420	1420	1650	1750	1850	2000	2000	2300	2300	2300	2450	2450	2450
Weight(kg)		650	900	1080	1520	1880	2080	2850	3220	3850	4350	4500	4650	5600	7900
Air Outlet Pipe Diameter		1?	1??		2?			DN65			DN85				DN100

With over 20 years' experience, HighQ Compressor is specialized in manufacturing and marketing 30hp-400hp 22kw-298kw low noise direct driven rotary air compressor, which is of high efficiency, low energy consumption and long lifespan. As one of the professional manufacturers and suppliers in China, we warmly welcome you to buy quality equipment made in China from our factory.
