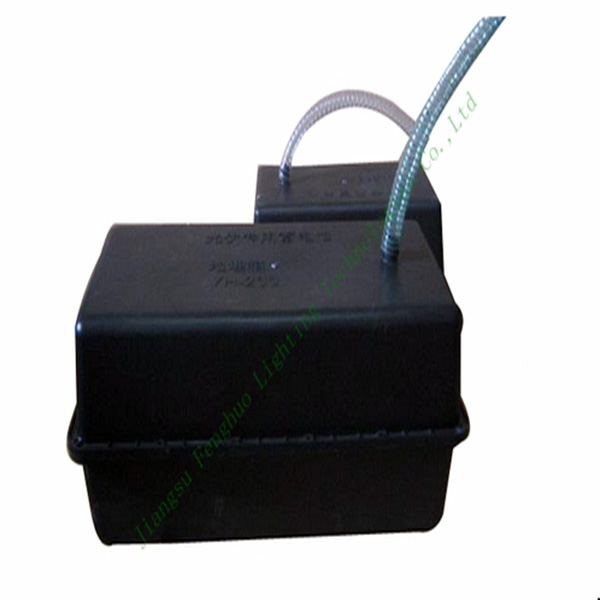

Plastic Battery Box

  • Description
Product Detail

IP67 engineering 3 years warranty plastic battery box


Model

Size (mm)Inner Outer

N.W(KG)

Master carton(mm)

Carton
Weight of (KG)

For Relevant Battery code

TSX-38

210*180*180 264*230*200

1.14KG

530*318*667

0.98KG

12AH-40AH

TSX-80

355*180*265 410*243*275

1.50KG

510*425*480

1.08KG

50AH-80AH

TSX-120

410*195*245 496*280*270

3.30KG

530*318*667

0.98KG

100AH-120AH

TSX-200

540*245*280 607*307*320

3.6KG

635*325*695

1.18KG

150AH-200AH


Instructions

1.Connect the cable to the battery terminals -- seal the connection with glue -- take out
the cable out of the box through the hole in the box


Features

1. Bury the battery underground by the sealed box to solve the waterproof problem.

2. When the wires pass through the wire hole of buried box to the bottom of light
pole, the air-out problem is solved at the same time.

3. The battery buried box solved the heat insulation problem in the internal
environment through a unique design of the fence-style ribs.

4. The battery buried boxes are made through one-time injection pressure with
quality material, with advantages of anti-seismic, anti-corrosion, anti-acid etc; and
the design of special fence-style ribs ensures that the battery buried have strong
bearing strength.





Storage and working environment

Storage requirements

1.Air flow, less dust

2.The environment temperature 25 ?

3.The relative humidity is less than 90%, and not easy to frost

4.Without erodible material

5.Need charge and discharge one time per month if the battery store for long time

Working surroundings

1.working temperature:-40?---60?

2.wind speed =41.4M/S

3.year average sunlight radiation =2.5 hours

4.desert and fog zone need special design

5.far away from the high trees and building to guarantee enough sunlight for the solar panel

6.The solar panel must be towards the strong sunlight direction
