ISO21287 Standard Compact Cylinders ADN
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
BANGYE is one of the leading ISO21287 standard compact cylinders ADN manufacturers and suppliers in China with one the best brands, welcome to buy discount, cheap and newest ISO21287 standard compact cylinders ADN and wholesale our low price and high-quality products from ISO21287 standard compact cylinders ADN OEM and ODM factory and company, and also welcome to check the price with us.

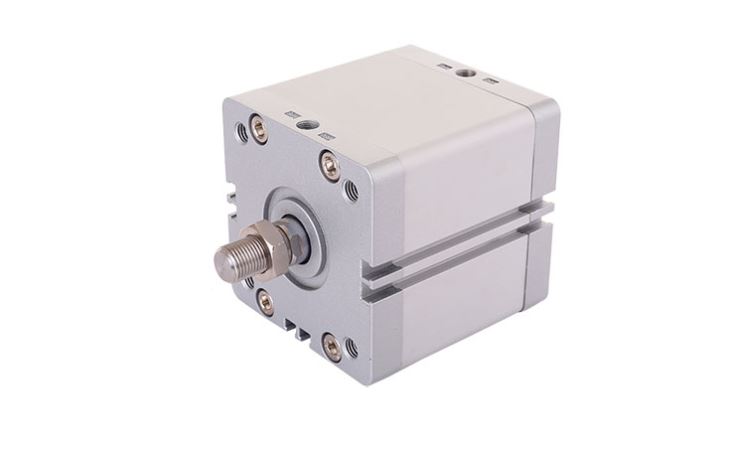

ISO21 287 STANDARD COMPACT CYLINDER ADN
PRODUCT OVERVIEW
The ADN cylinder in bore sizes Ø12 to Ø100mm is an ISO 21287 compact cylinder for standard temperature -20°C to +80°C with high and low temperature options suitable for processing, packaging and handling applications.
TECHNICAL DATA
Meets Standards | Corresponds to ISO 21287 |
Bore Diameter(MM) | 12-16-20-2532-40-50-63-80-100MM |
Stroke Range | 25-500mm |
Cushioning Type | Rubber Buffer Fixed |
Operating Temperature | -20°C -80°C |
Operating Pressure | 0.5-10 bar |
Operating Medium | Filtered compressed air, with or without lubrication |
Cylinder Action | Double acting |
Type of Mounting | Via accessories |
Position Sensing | Proximity Sensor |
