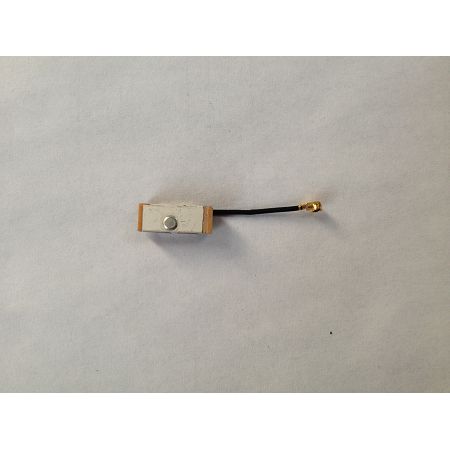

Internal GPS Antenna

GPS Antenna

Advantage:

1. Antenna design and manufacture

2. No.1 of terminal antenna exporter in China

3. Quality advantage:100% test, 5 test process during production, FA,singl time pass rate 99%,

4. Technical advantage:high gain, low attenuation, signal receiving ability

5.30 engineers have helped us develop our current selection and trained our 200 production workers to ensure they stay on top of the latest technology.

Product summary:

There are many different types of GPS Antenna designed by Jinchang.

There are also many different LNS solution to match with different modules. Such as passive antenna and active antennas; different filter location solutions; one stage amplifier, two-stage emplifier and third amplifier.

Also with different levels of waterproof IP66, IP67, IP68.

As regards the housing, customer service offered. You can use your own shape as long as reach our MOQ3000 pcs.

For mounting, magnet, screw or adhesive all are available.

During the whole process, SMT and Patch are the critical parts. Jinchang made these two process by ourselves. We now have 10*10mm, 12*12mm,15*15mm,18*18mm,25*25mm,35*35mm etc.

Product application:

The main function of the GPS Antenna is receive the GPS signal. It’s widely used in Navigation, Positioning, Waring devices, Telematics communication, fleet management. It’s mostly used in automotive and PND.

Component element:

Ceramic patch antenna+LNA+CABLE+CONNECTOR+HOUSING

Parameter:

Remark:

Can meet your unique requirement, for example waterproof,Salt spray proofing,UV protect and so on.

Please make sure there is no blog between the antenna and the satellite.

Warry

One year

Package:
