Internal Compass Antenna

  • Description
Product Detail

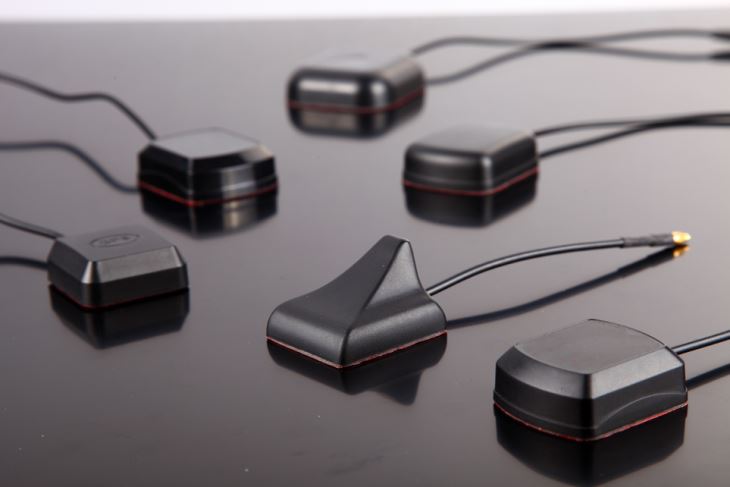

COMPASS Antenna

Advantage:

1. Antenna design and manufacture

2. No.1 of terminal antenna exporter in China

3. Top3 supplier compass antenna in China

Product summary:

Compass antenna also called BEIDOU antenna was design by China. Now is the steady system following GPS and GLONASS system.

We have both COMPASS I and COMPASS II antenna, they are widely used in Agriculture, Pasture, Forestry and so on. Jinchang are now TOP 3 COMPASS antenna or BEIDOU Antenna supplier in China.

Application:

Automotive, fleet management, Agriculture, Pasture, Forestry, Survey and so on.

Component element:

Ceramic patch antenna+LNA+CABLE+CONNECTOR+HOUSING

Parameter table:

Antenna

Center Frequency

1615.68±4.08MHz /2491.75±4.08MHz

Band Width

CF±8MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50O

Axial Ratio

3dB(max)

Dimension

25×25×4mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

Cable

RG174


Connector

SMA/MCX/FAKRA or others


housing

ABS


Remark:

Can meet your unique requirement, for example waterproof,Salt spray proofing,UV protect and so on.

Please make sure there is no blog between the antenna and the satellite.

Warry

One year

Package:

200pcs:  (49.5*22*27)*1carton with 15kgs as Gross Weight
