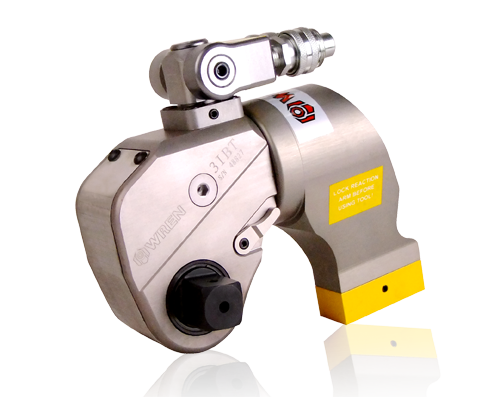

IBT Series Square Drive Hydraulic Torque Wrench

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

-700Mpa Max working pressure and accuracy keep within ±3%.

-All together 10 models with the range from 112N.m to 72,000N.m, which covers the most bolts size, and be the most comprehensive available in the market.

-The 360*180 degree swivel is free to operation with no space limitation.

-The square drive operate with the high intense socket and suitable with large range of bolts.

-360 degree adjustable reaction arm allows placing in any support point.

-Compact design with the raw material of advanced aluminum-titanium alloy, high intense.

-The new locking coupler ensures the oil keep free access.

IBT series is the professional hydraulic torque wrench which WREN vigorously extends in international market. Its raw material is aluminum-titanium alloy which makes the wrench light and high intense. IBT series has 10 models with the range from 112N.m to 72,000N.m; covers the most of bolts size, and be the most comprehensive available in the market. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.

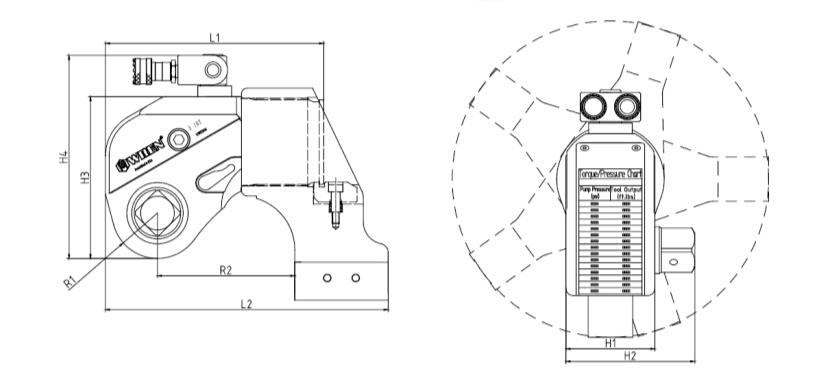

IBT Series Selection Chart
TYPE	07IBT	1IBT	3IBT	5IBT	8IBT	10IBT	20IBT	25IBT	35IBT	50IBT
Torque(N.m)	112~1120	183~1837	451~4512	752~7528	1078~10780	1551~15516	2666~26664	3472~34725	4866~48666	7200~72000
Bolt Size(M)	14~30	16~36	22~48	27~56	30~64	36~72	42~90	48~100	64~120	72~125
Weight(Kg)	1.8	2.5	5	8	11	15	26.5	35	50	87
L1	110.8	144.5	178	210.5	222	245.5	307.5	323	372.5	400
L2	139 3	173 5	229	270.5	293	317.5	383 5	401	496.5	516
H1	42	50	68	80	90	100	120	137	153	160
H2	65.8	72	95	12.3	134	142	183	200	216	223
H3	76.2	96	127	149	167	182	220	247	282	291
H4	108.1	131	176.5	19.9	217	232	270	297	332	341
R1	20.5	26	34	39	47	51	59	66	77	81
R2	68.3	85	114	137	153	154	186	199	241	259
Square Drive	3/4"	3/4"	1"	1-1/2"	1-1/2"	1-1/2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"
