Fully Enclosed Ball Screw And Belt Driven Single Axis Robot With Fast Speed And High Precision

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

If you are going to wholesale and buy discount, customized and cheap fully enclosed ball screw and belt driven single axis robot with fast speed and high precision at low price from a such factory, FLC Tech Co.,Ltd is one of the professional fully enclosed ball screw and belt driven single axis robot with fast speed and high precision manufacturers and suppliers in China. Don't hesitate to contact us.

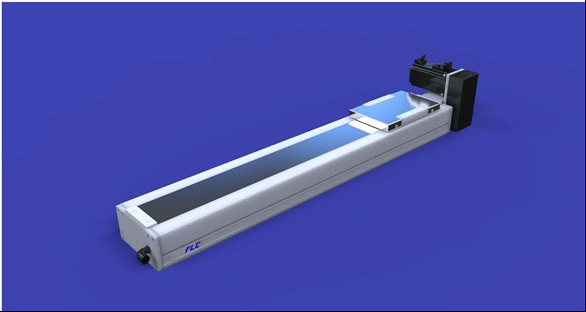

Fully enclosed Belt driven Single Axis Robot with high speed, actuated by Timing belt with motor-driven, are available in Long stroke and fast speed as specification listed and support to customize according customer’s special orders. Those are compatible with various industrial automation applications Due to easily assembled into multi-axis System.

FFB Series Fully enclosed Belt driven Single Axis Robot with High speed FFB110/FFB135

Features:
Work in Clean room environment
Fully enclosed type driven by belt
Simple structure and low price
Customized special orders
Easily installed and maintained
Compatible with various industrial applications
Specifications:

Model		FFB110
Motor power AC (W)		200W/400
Drive system		Timing Belt
Repeatability (mm)		±0.04
Lead (mm)		90/36
Max.Speed (mm/sec) Motor Speed 3000(rmp/min)		4500/1800
Max.payload (kg)	Horizontal	5/10
	Vertical	NO
Rated Thrust(N)		61
Stroke(mm)		100~2550(50 Interval)
Size(mm)		W100XH105
Linear guide(mm)		20x18

Model		FFB135
Motor power AC (W)		400W
Drive system		Timing Belt
Repeatability (mm)		±0.04
Lead (mm)		100/40
Max.Speed (mm/sec) Motor Speed 3000(rmp/min)		5000/2000
Max.payload (kg)	Horizontal	12/25
	Vertical	NO
Rated Thrust(N)		160
Stroke(mm)		100~3050(50 Interval)
Size(mm)		W100XH65
Linear guide(mm)		15x12.5

Fully enclosed Ball screw driven Single Axis Robot with high precision are actuated by ball screw with motor-driven to implement best performance on high precision accuracy ,high rigidity and accurate positioning, Also support to customize according customer’s special orders. These are applied to various structures either horizontal or vertical when transformed into multi-axis systems.

FFC Series Semi enclosed Ball screw driven Single Axis Robot with high precision FFC65/FFC80/ FFC110/FFC135/FFC175

Features:
Work in Clean room environment
Fully enclosed type driven by ball screw
Rapid and easy installation
Customized special requirement
Reliable movement and performance
High accuracy and accurate positioning
Compatible with wide range of industrial application

Specifications:

Model		FFC50
Motor power AC (W)		100
Drive system		Ball screw 12(C7 class )
Repeatability (mm)	Standard	±0.02
	Precision	±0.01
Lead (mm)		2	5	10
Max.Speed (mm/sec) Motor Speed 3000(rmp/min)		100	250	500
Max.payload (kg)	Horizontal	10	10	5
	Vertical	7	3	1.5
Rated Thrust(N)		886	330	165
Stroke(mm)		100-800(50 Interval)
Size(mm)		W51XH54
Sensor (Outside)	NPN	EE-SX672
	PNP	EE-SX672P

Model		FFC80
Motor power AC (W)		100
Drive system		Ball screw 12(C7 class )
Repeatability (mm)	Standard	±0.02
	Precision	±0.01
Lead (mm)		2	5	10
Max.Speed (mm/sec) Motor Speed 3000(rmp/min)		100	250	500
Max.payload (kg)	Horizontal	30	30	15
	Vertical	15	10	5
Rated Thrust(N)		854	341	170
Stroke(mm)		100-800(50 Interval)
Size(mm)		W65XH56
Sensor (Outside)	NPN	EE-SX672
	PNP	EE-SX672P

Model		FFC110
Motor power AC (W)		200
Drive system		Ball screw 16(C7 class )
Repeatability (mm)	Standard	±0.02
	Precision	±0.01
Lead (mm)		5	10	16	20
Max.Speed (mm/sec) Motor Speed 3000(rmp/min)		250	500	800	1000
Max.payload (kg)	Horizontal	60	40	25	18
	Vertical	15	10	5	3
Rated Thrust(N)		341	170	106	85
Stroke(mm)		100-1050 (50 Interval)
Size(mm)		W110XH91
Sensor (Outside)	NPN	EE-SX672
	PNP	EE-SX672P

Model		FFC135
Motor power AC (W)		400
Drive system		Ball screw 16(C7 class )
Repeatability (mm)	Standard	±0.02
	Precision	±0.01
Lead (mm)		5	10	16	20
Max.Speed (mm/sec) Motor Speed 3000(rmp/min)		250	500	800	1000
Max.payload (kg)	Horizontal	110	88	48	40
	Vertical	33	22	10	8
Rated Thrust(N)		1388	694	433	347
Stroke(mm)		100-1050 (50 Interval)
Size(mm)		W135XH92
Sensor (Outside)	NPN	EE-SX672
	PNP	EE-SX672P

Model		FFC175
Motor power AC (W)		750
Drive system		Ball screw 20(C7 class )
Repeatability (mm)	Standard	±0.02
	Precision	±0.01
Lead (mm)		5	10	20	40
Max.Speed (mm/sec) Motor Speed 3000(rmp/min)		250	500	1000	2000
Max.payload (kg)	Horizontal	120	120	83	53
	Vertical	50	40	25	12
Rated Thrust(N)		2563	1281	640	320
Stroke(mm)		100-1250 (50 Interval)
Size(mm)		W175XH107
Sensor (Outside)	NPN	EE-SX672
	PNP	EE-SX672P
