Data  logger
The Fangpusun PA Tarcom data  logger is connected to the RJ45 interface of the Fangpusun Tarom or Power Tarom  charge controller, orvia the Fangpusun PA HS200.
The data logger is available in  several different version: as a simple RS232 interface to directly save and  read data on the PC or Laptop (Fangpusun PA Tarcom 01), as a data logger with  an integrated analogue modem (Fangpusun PA Tarcom RM), as a data logger with an  optional telephone connection (Fangpusun PA Tarcom RMT) and as a data logger  with an integrated GSM modem for remote monitoring (Fangpusun PA Tarcom GSM).  The Fangpusun PA Tarcom is delivered with its accompanying software.
Product  features
4 years maximum storage capacity  (1 Mbyte)
Adjustable logging intervals
Stores 8 data sets at programmed  intervals
Freely programmable alarm states
Displays
LED shows  operating states
Interfaces
Two RJ45  cable sockets
RS232 serial interface
Analogue sensor input e. g. for  radiation or wind speed
Alarm contact
Tarcom  software
Internet  services for worldwide access
Downloads data from the logger to  a PC
List of data sets can be exported  to MS-EXCEL
Graphic visualization of data  sets (values/time)
Analyzes energy flows (Ah) within  a PV hybrid system
Activation and selection of alarm  types
Configurates modem
Sets telephone number to call
Tell the data logger at what time  it has to call
Certificates
Compliant with European Standards  (CE)
ROHS compliant
Made in china



01

RM/RMT

GSM

Ethernet

Characterisation of the operating    performance

System voltage

12v(24)

Logger capacity

1Mbit=2min.(11 days)—4h (4 years)

Own consumption

<10mA

30mA

Recorded values

relative time total charge    current,
     battery current, solar module    current, load
     current, SOC, battery voltage,    system status, analog sensor

System status information

night, overload, load disconnect,    overvoltage, low voltage, over temperature, no module

DC output side

Battery voltage

8v…65v

Safety

Alarm output

For all recorded parameters    programmable

Fitting and construction

Interfaces

RS232

analog modem

gsm modem

ETHERNET

CONFIGURABLE ANALOG AUXILIARY    INPUT

0Mv…150mV

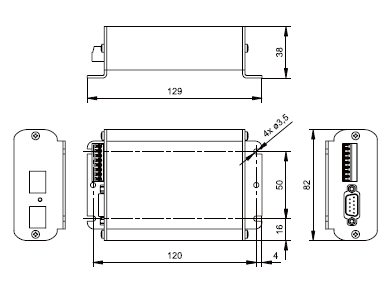

Dimension(X x Y x Z)

129X82X38mm

Weight

150g
