Customized Laboratory Tube Heat Treatment Furnace JC-H-220-12

Quick Details
Classification: Laboratory Heating Equipments
Brand Name: JIUCHEN
Model Number: JC-H-220-18
Place of Origin: Shandong, China (Mainland)
Heating: SIC Chamber with no crack,no distortion
Melten Metal:Gold,Siver,Zinc,Copper,Brass,Aluminum
Furnace Chamber Dimesions: dia 80mm,depth:2000mm
Electricity: 220-240V AC,50/60Hz
Net Weight: 55KGS
Regulation: Digital PID Temperature Controller
Customization is welcome: lengths increases each 165mm
Application: test tube or silica tube.
Optional Fitting parts: Tray that assist take out convenient the heating test sample
Packaging & Delivery

1150C 220V Electric Horizontal Furnace for Lab Heat treatment
220V Horizontal Electric Melting Furnace is our company latest design,it suits 220V~240V.
This adopts horizontal-type structure,open at both ends as well as one end as per customer requirement.User can insert test tube,silica tube into the furnace chamber.This model is small size, easy to carry,which has settled the problem that test sample can not take out from vertical-type furnace after its heat.
This model apply for workpiece, test sample heat experiment in laboratory.
Modle definition and Technical Parameter

Advantages of Horizontal Furnace
A. The furnace chamber adopts advanced composite material, which extends effectively the furance working life .
The furnace chamber with advanced composite material, has gone through heat shock experiment that the chamber heats up to 1300C then immediately put into 15 degrees centigrade cold water, with the test result of no cracking,no distortion,
heating wire with iron-chromium-nickel alloy, laboratory imiting temperature can up to 1600C ,it can be guaranteed by long-period steady working under 1200?.
B. This furnace has small size with 170*200*350mm,light weight with Net.Weight 4.5kg,easy to operation,User can freely insert test tube,silica tube into the furnace chamber. which has settled the problem that test sample can not take out from vertical-type furnace after its heat.
Product objects and note points
3.4 Notice Points
A. Horizontal Furnace can not use for metal melting,if melt,please choose vertical furnace.
B. When open the cover, user must open it from the front,that is to say face Directly ahead of the furnace,do not open the cover Directly face toward the cover.
C. During the operating process,user must wear the safety glove expect setting temperature and controling the switches.
D. Strictly prohibit putting inflammable and explosive material into chamber.
If there is liquid flow into chamber, cutting off the power immediately,wait for the temperature heats up to room temperature,then take out the sundries.
Horizontal Furnace Instruction
The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat allowing you to set the desired melting temperature.
The RED switch turns on the heating element to start the melting process.

The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top read-out (PV) displays the actual temperature inside the crucible during operation.
To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should show the default temperature setting of 1950°F.
To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.
When you are ready, place the metal pieces or grain in the crucible and set the crucible in the furnace. Close the lid.
Press the red button to start the melting process.
When the metal is molten and has reached casting temperature, turn off the red switch. Open the lid and pour the metal into your prepared flask.

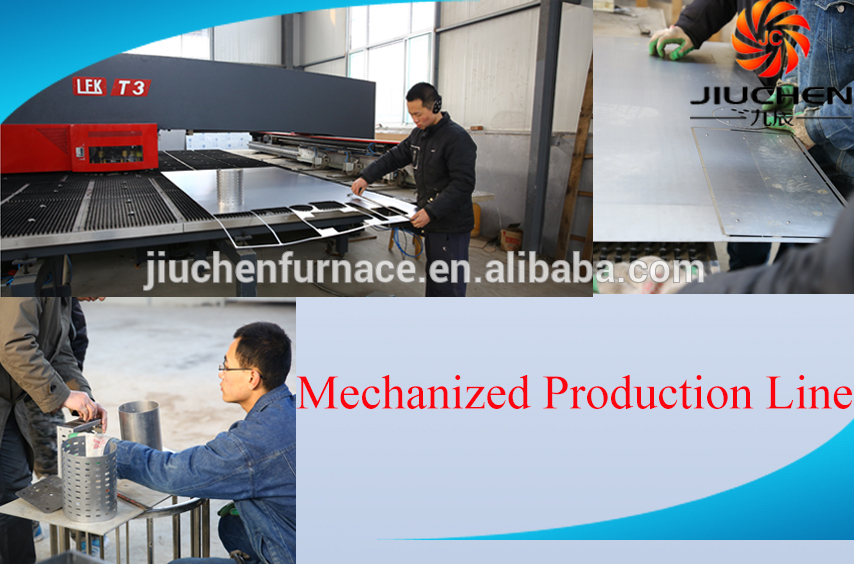

Horizontal Furnac Poduction Line
