CMM-6-800R Vinston Wire Bender Machine

  • Description
Product Detail

Vinston Spring Machinery Co.,Ltd is one of the top level China cmm-6-800r vinston wire bender machine manufacturers and suppliers, welcome to buy and wholesale cheap cmm-6-800r vinston wire bender machine made in China from our factory.

CMM-6-800R vinston wire Bender machine

Introduction:

Revolutionary 10 axes spring & wire forming machines that allow spring manufacturers to massively produce a variety of springs with high speed and accuracy!

Feature Highlights:

Free arm technology.
Windows screen operation.
Servo driven free arm technology that allows a forming blade to move freely on an X,Y plane.
Intuitive graphics user interface is based on Windows and its crash free characteristic is due to the employment of a bulletproof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
Equipped with standard bells and whistles such as rotary wire, rotary quill, spinner and 6 forming blades.

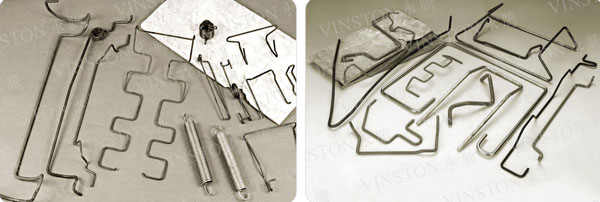

Wire Bender machine products sample
Wire bender machine products sample
Features Of Spring Machine Pattern Of Spring Machine

Specifications and parameters:

MODELCMM-6-800
Wire Dia.3.0-8.0mm
Max. Wire Feed10000.00mm
Min. Wire Feed0.01mm
Max. Wire Feed Speed80m / min
Max. Wire Feed LengthUnlimited
Number Of Axes5
Power12500W
Voltage380V
SoftwareIndustrial Grade Computer
Program Storage2000
Air Compresser SystemAir pressure5-6KG/cm
Pin3
DimensionsDepth3300mm
Width1600mm
Height1800mm
Machine Weight3000KG
