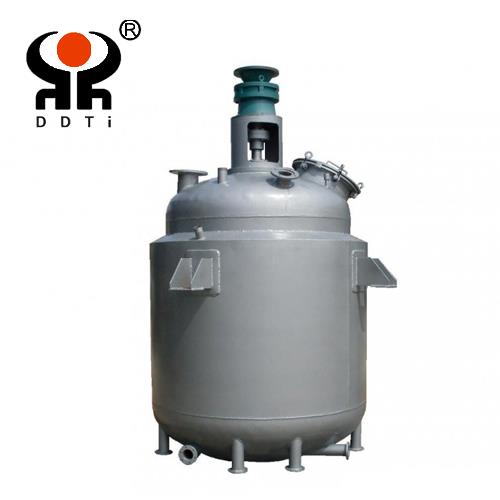

china Titanium Reaction Kettle suppliers

1. product brief introduction

At present, the titanium reaction kettle can mainly be divided into pure titanium reaction kettle, composite titaniumreaction kettle, titanium-lined reaction kettle these three categories, respectively used in different process conditions. Composite titanium reaction kettle, because its performance is superior, the price is lower than those of pure titanium reaction kettle, is more widely applied.

Titanium reaction kettle can be used in corrosive experiment, titanium was very lively, but easy to form a passivation and the passivation layer is stable, is typically used in the reaction of corrosion material.

Because of titanium has advantages of high specific strength, excellent heat resistance, corrosion resistance and fracture toughness, so titanium reaction kettle get great favor in areas like aviation, aerospace, petrochemical, medical treatment and geological areas and so on.

Titanium reaction kettle is also more and more widely used in civilian areas, such as automobile, electric power, leisure, etc. Along with the widespread use of titanium and its alloy, the welding performance is more and more attention by the user.

2. The product specification

Customize according to your drawings, sophisticated technology, excellent quality.

3. The material

TA1(Gr1) and TA2(Gr2) are the most commonly used, customer have other material requirements can be satisfied.

4. Performance standards

Reference standard of Chemical composition

Grade	Al	V	N.max	C.max	H.max	Fe.max	O.max	Residuals(ea) max	Residuals(total) max
Gr1			0.03	0.08	0.015	0.20	0.18	0.1	0.40
Gr2			0.03	0.08	0.015	0.30	0.25	0.1	0.40
Gr5	5.5-6.75	3.5-4.5	0.05	0.08	0.015	0.40	0.20	0.1	0.40

Reference standard of mechanical property

Grade	room-temperature mechanical properties, not less than
Grade	Yield strength	Ultimate Strength	Elongation in 50 mm, A5	Reduction in Area
Grade1	170 MPa	240 MPa	25%	30%
Grade2	275 MPa	345 MPa	20%	30%
Grade5	825 MPa	895 MPa	10%	20%
