Cement Board Prefab House

  • Description
Product Detail

Cement Board Prefab House

Place of Origin: Hangzhou, China (Mainland)

Brand Name: FoToon Housing

Material: Steel Structure + Cement board insulation + wall cladding + Solar Panel system for energy support.

Use: Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

Structure: Steel Structure Frame Welded

Energy Support: Solar Panel supporting system with Battery.

3 Specifications of FoToon Sandwich Panel

Specifications

Thickness

Length

Width

Reference Weight

Product allows tolerance

50 series

50mm

2270mm

2440mm

2700mm

3000mm

610mm

46 ±5

Length ±5
Width ±2
Thickness ±1
Flatness ±1

60 series

60mm

50 ±5

75 series

75mm

60 ±5

90 series

90mm

65 ±5

100 series

100mm

72 ±5

120 series

120mm

83 ±5

150 series

150mm

100 ±5

180 series

180mm

120±5



The sandwich panel size can be customized according to the needs of users’ requirements


4 The advantages of FoToon sandwich panel

1) Heat insulation and Preservation The major material is polystyrene grains and other anti-freezing and heat preserving environmental protection materials, which could adjust the indoor temperature at a constant range thus achieving the effects of ecological adjustment.

2) Waterproof and Fireproof The face panel of energy-saving boards on both side are 5mm calcium silicate fireproof board and the main materials is a mixture of cement, sand, fly ash etc.

3) Sound insulation and Absorption The inside construction material (EPS polystyrene grain) functions well in sound insulation and sound-absorbing.

4) Easy construction and Time saving For the same construction work that takes 12 people and 60 minuses to complete with traditional blocks, only 3 people and 60 minutes will do with boards, thus can save a lot of labor and time cost for the construction part.

5) High intensity and Quake proof  The energy saving boards are all with high intensity and the earthquake resistance can reach 8.5 magnitudes.

6) Space and Cost saving For its thickness and lightweight features, the building area is largely increased and saves the cost construction structure a lot.

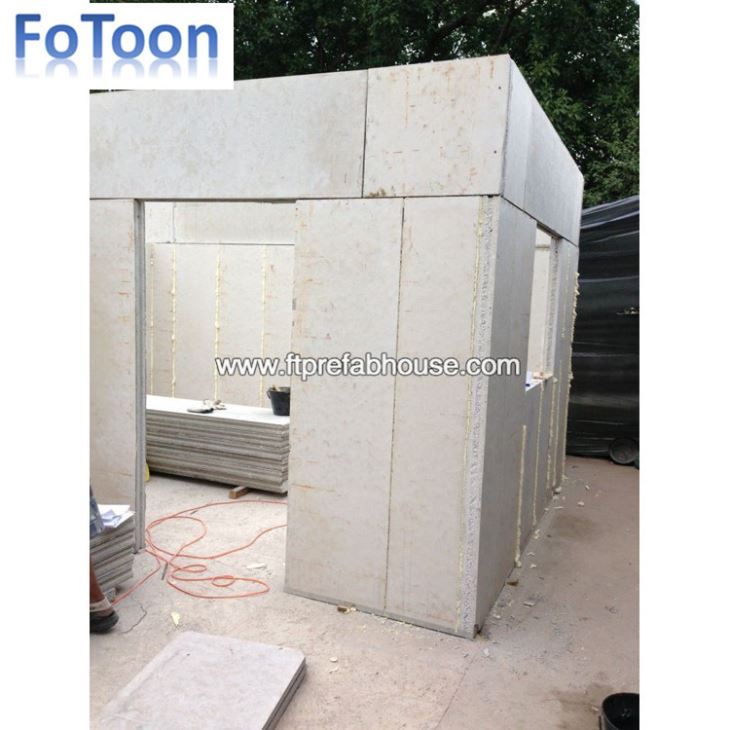

Cement Board Prefab House1.jpg

Technical Performance indicators of FoToon sandwich panel

Item

Parameter Index Specifications


60mm

75mm

90mm

100mm

120mm

150mm

180mm

1

Anti-impact capacity/times

=5

=5

=5

=5

=5

=5

=5

2

Anti-bending damage load/times over deadweight

=3.0

=3.0

=3.0

=3.0

=5.0

=5.0

=7.0

3

Compressive strength/Mpa

=3.5

=3.5

=3.5

=3.5

=3.5

=3.5

=3.5

4

Softening coefficient

=0.8

=0.8

=0.8

=0.8

=0.8

=0.8

=0.8

5

Surface density(kg/m2)

=70

=70

=90

=90

=110

=110

=130

6

Moisture rate(%)

=10

=10

=10

=10

=8

=8

=8

7

Dring shrinkage value(mm/m)

=0.5

=0.5

=0.5

=0.5

=0.5

=0.5

=0.5

8

Hang force(N)

=1000

=1000

=1000

=1000

=1000

=1000

=1000

9

Sound insulation capacity in the air(dB)

=35

=35

=40

=40

=45

=50

=55

10

Fire endurance(h)

=1.5

=1.5

=2.5

=2.5

=3.0

=4.5

=6.0

11

Heat transfer coefficient(w/m2.k)

=2.0

=2.0

=2.0

=2.0

=2.0

=2.0

=2.0

12

Inner radiation index

=1

=1

=1

=1

=1

=1

=1

13

Outer radiation index

=1

=1

=1

=1

=1

=1

=1

14

Frost resistance(shall show no visible cracks and surface without change)

_

_

shall show no visible cracks and surface without change

15

The combustion properties(A1 or A2)

_

_

A1 or A2

FoToon Sandwich Panel Application

1)Roof System

Light weight compound sandwich panel roof system brings brand-new added value and application idea to the traditional roof construction. This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc. The features of light weight and hight strength reduce the use of roof beam-column, reduce the consumption of materials, improve security; Its easy construction time, which bring out its hight integrated performance.

2) Floor System

ZJT light weight compound sandwich panel can be innovatively used as floor board. Besides the basic characteristics like sound insulation, waterproof, dampproof, this system has the outstanding advantages such as hight load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc., which is much suitable for the fields including the floor plate of additional top floor, factory, workshop, warehouse, etc.

3) Villa&Exterior Wall System

Light weight compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.

4)Interior Partition System

With excellent fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy

Installation and the like characteristics, light weight compound sandwich board have been widely

Applying to the special positions like partition panel of high-rise and mega-high-rise buildings.

Packaging &Shipping

FoToon Sandwich Panel Package and Shipping

1) Free packing, normal pallet + packing belt

2) Standard exporting packing, good pallet+pearl wool+corner protective paper+packing belt+plastic thin film

3) Packing size: 2270*610*(60-200)mm

4) Loading: Normally 18 pallets per 20' container or according to clients' requirements


Items(mm) Length*Width*Thickness

 single(Pc)

Load by 20'GP

m3

Kg/pc

kg/2

Qty(pc)

m2

Tons

2270*610*75

0.10

65

52

252

349

17

2270*610*90

0.12

73

60

216

299

17

2270*610*100

0.14

79

65

198

274

17

2270*610*120

0.17

90

74

162

224

16

2270*610*150

0.21

106

88

126

174

15

2270*610*180

0.25

123

102

108

150

14

2440*610*120

0.18

95

69

132

196

14

2440*610*150

0.22

112

76

102

152

12

2440*610*180

0.27

130

88

90

134

13
