Boom Concrete Pump

  • Description
Product Detail

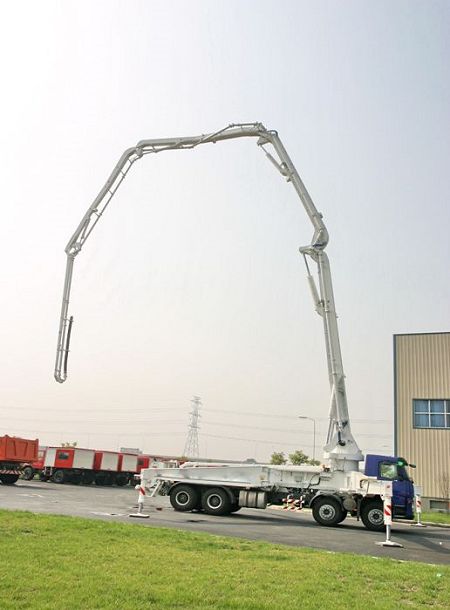

ISUZU CHASSIS 37M boom concrete pump
The series of 37M boom concrete pumps mounted on ISUZU CHASSIS truck which is produced through the cooperation with 'SERMAC' in Italy.

Components Brand: Rexroth hydraulic pump and electric valve, HAWE hydraulic distributing valve, ratio valve and safety valve

Hydraulic system: open circuit with total hydraulic controlled pump feeding and armed frame movement.
Cooling system: has high cooling efficiency, and will not allow the temperature in hot weather of the pump feeder to exceed 60? in summer
Pump feeding system: S valve, has strong feeding capacity, and its lubricating system is reasonably designed.
Control system: control panel, lined remote controller, remote controller.

ISUZU CHASSIS 37M boom concrete pumpis of high reliability and durability for bad working environment andeasy to operate, and is flexible, accurate, and steady in frame movement.

Technical parameters for ISUZU CHASSIS 37M boom concrete pump

Pumping Unit

Output Capacity (m³/h)

120-185

Concrete Pressure(bar)

61-76

Concrete Cylinder(mm)

230X2000

Mixer Hopper Capacity (L)

550

Boom Section

Boom Folding Type

"R"

Boom Unfolding Height(m)

8.5

Boom Vertical Reach(m)

37.0

Boom Horizontal Reach(m)

32.7

Boom Depth Reach(m)

24.3

Boom    Rotation(°)

370

Concrete Pipe(mm/inch)

125/5"

Number of Boom sections

4

Angle between Boom Sections(°)

91/181/181/181/240

Stabilizer

Stabilizer Opening Type

"I"

Maximum Opening Width Of Outriggers
     (m)

7.7
