Boiler Tubes And Pipes

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

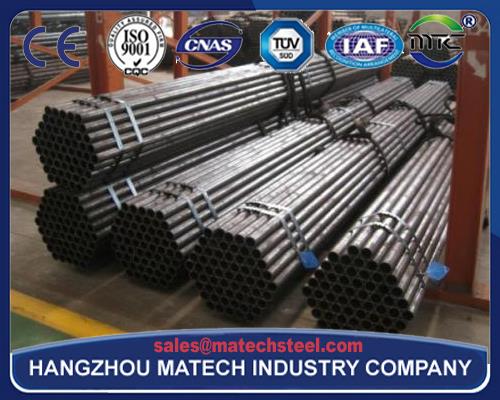

Boiler tubes

We supply all types of boiler tubes and pipes including seamless, heat-resistant steel pipes in accordance with DIN / EN and ASTM A / ASME SA.

· ASTM A192 Steel Tubes for High-pressure Steel Boiler Tube

· Hardness testing methods of high-pressure boiler tubes

· Boiler tube quality problems

· What is boiler pickling

· Boiler pipe forming

· Characteristics of boiler pipe

· Heat boiler seamless extrusion technology

· Low and medium pressure boiler pipe


GB5310 20G boiler steel pipe


ASTM A 192M High-pressure Steel Boiler Tube


57mm cutting end


12mm wall thickness

Overview of standards and types of boiler pipes:

DIN 17175	EN 10216-2	ASTM A335
St 35.8, I + III	P 235 GH, 1 + 2	P5
15 Mo 3	16 Mo 3	P 11
13 CrMo 44	13 CrMo 4-5	P22
10 CrMo 910	10 CrMo 9-10	P9
X 10 CrMo VNb 9-1	X 10 CrMo VNb 9-1	P91
X 20 CrMo V 12-1	X 20 CrMo V 11-1

You are looking for boiler pipes with different specifications?

Carbon steel for water distribution for temperature 0° - 100°C

EN - DIN	WNr	AISI/ Tradename	ASTM - UNS	Pipe seamless	Pipe welded
P235TR1	1.0254	-	-	A/ SA53B	A/ SA53B
EN10216-1	EN10217-1

Carbon steel for temperature -20° - 400°C for pressure application

EN - DIN	WNr	AISI/ Tradename	ASTM - UNS	Pipe seamless	Pipe welded
P235GH	1.0345	-	-	A/ SA106 Gr B/ A	A/ SA672 B65
EN10216-2	EN10217-2/ -5
P265GH	1.0425	-	-	A/ SA106 Gr C/ A	A/ SA672 BB70
EN10216-2	EN10217-2/ -5
P355N/ NH	1.0562/ 1.0565	-	-	API 5L X52	API 5L X52
EN10216-3	EN10217-3
P460N/ NH	1.8905/ 1.8935	-	-	API 5L X65	API 5L X65
EN10216-3	EN10217-3

Low Alloy steel and Alloy Steel for temperature 0° to 650°C for pressure application

EN - DIN	WNr	AISI/ Tradename	ASTM - UNS	Pipe seamless	Pipe welded
16Mo3	1.5415	-	-	A/ SA335 P1	A/ SA691 1CR
EN10216-2	EN10217-5
X11CrMo5-1	1.7362	-	-	A/ SA335 P5	A/ SA691 5CR
EN10216-2	EN10217-5
X11CrMo9-1	1.7386	-	-	A/ SA335 P9	A/ SA691 9CR
EN10216-2	EN10217-5
13CrMo4-5	1.7335	-	-	A/ SA335 P11	A/ SA691 1 1/4CR
EN10216-2	EN10217-5
10CrMo9-10	1.7380	-	-	A/ SA335 P22	A/ SA691 2 1/4CR
EN10216-2	EN10217-5
X10CrMoVNb9-1	1.4903	-	-	A/ SA335 P91	A/ SA691 91CR
EN10216-2	EN10217-5
X10CrWMoVNb9-2	1.4901	-	-	A/ SA335 P92	A/ SA691 92CR
EN10216-2	EN10217-5

Low temperature carbon steel for pressure purpose and low temp up to -50°C

EN - DIN	WNr	AISI/ Tradename	ASTM - UNS	Pipe seamless	Pipe welded
P215NL	1.0451	-	-	A/ SA333 Gr1/ Gr6	A/ SA671CC60/70
EN10216-4	EN10217-4
P255QL	1.0452	-	-	A/ SA333 Gr1/ Gr6	A/ SA671CC60/70
EN10216-4	EN10217-4
P265NL	1.0453	-	-	A/ SA333 Gr1/ Gr6	A/ SA671CC60/70
EN10216-4	EN10217-4
P355NL1/ NL2	1.0566	-	-	A/ SA333 Gr6	A/ SA671CC60/70 A/ SA333 Gr6
EN10216-3	EN10217-3

Low temperature Nickel Steel for pressure purpose and low temp up to -196°C

EN - DIN	WNr	AISI/ Tradename	ASTM - UNS	Pipe seamless	Pipe welded
X10Ni9/ X8Ni9	1.5682/ 1.5662	-	-	A/ SA333 Gr. 8	A/ SA671C100/ CH100
EN10216-4	EN10217-4
12Ni14	1.5637	-	-	A/ SA333 Gr3	A/ SA671CF66
EN10216-4	EN10217-4

Boiler tubes need to withstand high pressure and temperature. Sunny Steel’s state-of-the-art manufacturing processes and advanced inspection and testing procedures ensure our boiler tube stand up to the harsh environments.

Sunny steel are instrumental in offering our clients with a wide range of Boiler Tubes that is used in varied industrial applications. These Boiler Tubes are known for their resistance to corrosion and tolerance for withstanding temperature variations. We also undertake customization of these tubes to meet the specific requirements of our clients.

Boiler tubing is used in these industries:

· Steam Boilers

· Power Generation

· Fossil Fuel Plants

· Electric Power Plants

· Industrial Processing Plants

· Cogeneration Facilities
