Product Detail

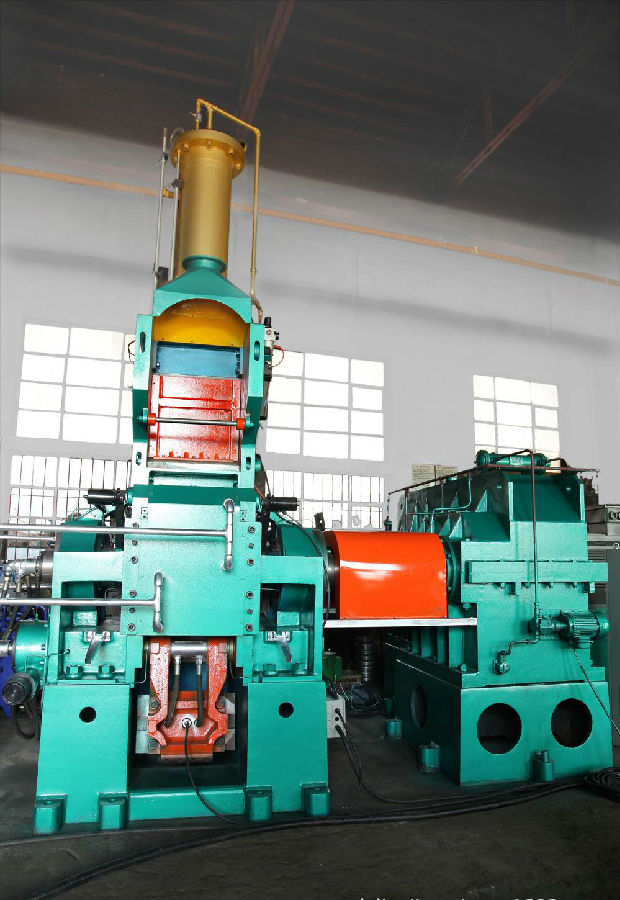

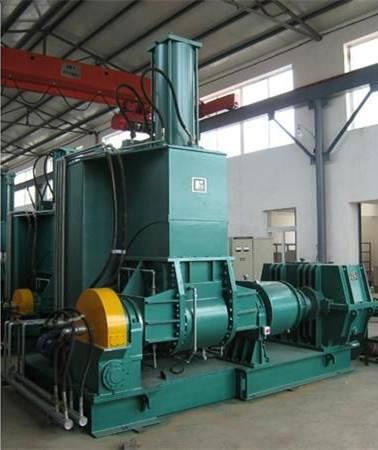

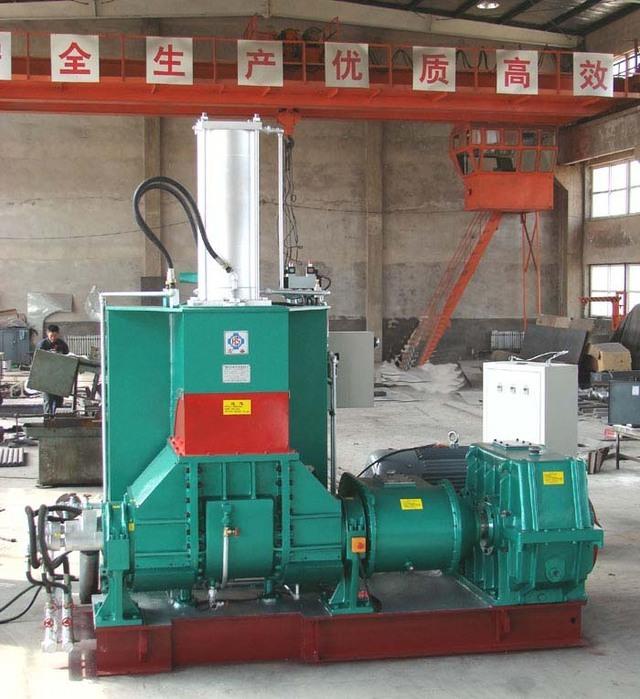

Shenghualong Rubber Machinery is one of the leading banbury mixer manufacturers and suppliers in China, we are able to offer you cheap banbury mixer made in China and welcome to check the price with us.
STRUCTURAL FEATURES:
Banbury rubber mixer machine is the best machine for mixing of big quantity plastic and rubber material.
1. The diversity of rotor type can meet different mixing requirements.User can choose any kind of rotors(the mixer with different rotor has different total volume and working volume.
2. Drive sysyem adopts DC motor or AC inverter motor to realize stepless speed adjustment or adopts Acmotor with gear box etc.The drive system has the advantages of steady drive,lower noise and long service life etc.
3. The standard rotr adopts the right drive system.According to users needs we also can supply the left drive system.
4.Drive sysyem adopts DC motor or AC inverter motor to realize stepless speed adjustment or adopts Acmotor with gear box etc.The drive system has the advantages of steady drive,lower noise and long service life etc.
5.On-site operation cabinets and electrical control cabinets adopt PLC communication,results in reduction of equipment troubles and installation cost.
Application:
The machine is applicable for plasticating and mixing of rubber and plastics.
Model & Spec. | X(S)M-50 | X(S)M-75/40 | X(S)M-160 | X(S)M-250/20 | X(S)M-270 | ||||||||
AC drive | DC drive | AC drive | DC drive | AC drive | DC drive | ||||||||
Net Chamber Volume (L) | 50 | 75 | 160 | 250 | 270 | ||||||||
Working Volume (L) | 35 | 50 | 120(2 wings) 105(4 wings) | 140 | 188(4 wings) | ||||||||
Rotating Speed of Drive Rotor (r/min) | 40 | 5-50 | 40 | 30 | 4-40 | 20 | 20/40 | 4-40 | |||||
Rotating Speed Ratio of Rotors | 1:1.16 | 1:1.16 | 1:1.18 | 1:1.15 | 1:1.15 | 1:1.16 | 1:1.1 | 1:1.1 | |||||
Rotor End Seal Mode | FYH Exterior Pressure Mode | FYH Exterior Pressure Mode | FYH Exterior Pressure Mode | Interior Pressure Mode | Exterior Pressure Mode | ||||||||
Diameter of Air Cylinder for Ram (mm) | F220 | F300 | F450 | F280 | F550 | ||||||||
Ram Pressure on Stocks (M Pa) | 0.25-0.4 | 0.25-0.35 | 0.36-0.48 | 0.16-0.21 | 0.35-0.47 | ||||||||
Compressed Air Pressure (M Pa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | ||||||||
Air Consumption (m3/h) | 15 | 40 | 70 | 40 | 298 | ||||||||
Max. Steam Pressure (M Pa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | ||||||||
Cooling Water Pressure (M Pa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | ||||||||
Water Consumption (m3/h) | 10 | 20 | 45 | 25 | 50 | ||||||||
Discharging Mode | Hydraulic Drop Door Discharge | ||||||||||||
Main Motor Power (KW) | 110 | 132 | 160 | 355 | 520 | 250 | 500/1000 | 1250 | |||||
Speed Reducer | NGW Planetary Hardened-gear Speed Reducer | Dual-output Hardened-gear Speed Reducer | |||||||||||
Feed Hopper Door Dimension (L×W mm) | 480×201 | 610×266 | 700×380 | 810×293 | 889×460 | ||||||||
Discharge Door Dimension (L×W mm) | 480×200 | 610×255 | 700×281 | 810×305 | 889×420 | ||||||||
Overall Dimension of Machine (L×W×H mm) | 6100×1600 ×3610 | 6830×1930 ×3800 | 8900×2800 ×5050 | 7600×2500 ×4000 | 7800×4000×5560 | ||||||||
Weight (kg) | 10500 | 15000 | 31000 | 26000 | 50000 | 49000 | |||||||
Notes |
|
|
|
| Hydraulic Ram Optional |
