ASME ANSI Carriage Bolt
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
Shanghai Jinrui Norm Parts Supplies Co.,Ltd is one of the leading asme ansi carriage bolt manufacturers and suppliers in China, welcome to buy asme ansi carriage bolts, asme ansi standard carriage bolt from our factory and company.
ASME ANSI standard carriage bolt covers the complete general and dimensionam data for the various tyoes of inch series bolts generally classified as carriage bolt and recognized as American National Standard.

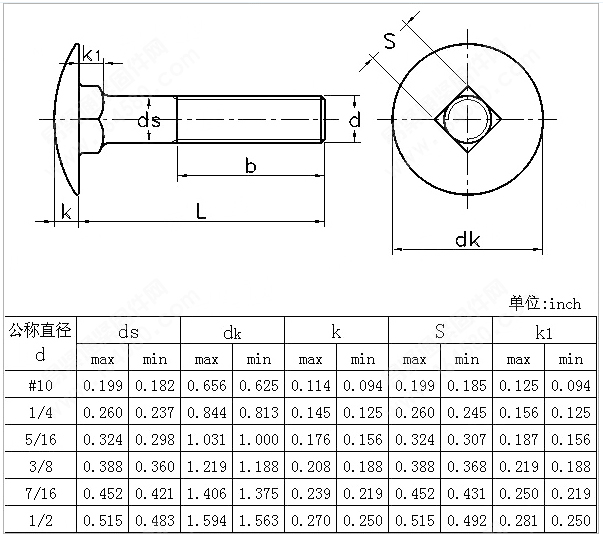

ASME ANSIB 18.5 carriage bolt have a circuar head with a low rounded top surface and flat bearing surface,and an integrally formed square neck under the head.The inclusion of dimensional data inthis standard is not inteded to imply that all of the products described are stock production sizes.So please consult with us concerning availability of the products needed.
Standard | Grade | Finish | Thread |
ASME B18.5 | 2 | Plain | UNC |
Zinc plated | |||
5 | Yellow zinc plated | ||
PTFE | |||
8 | Black | UNF | |
Dacromet | |||
Other | HDG | ||
Other |
