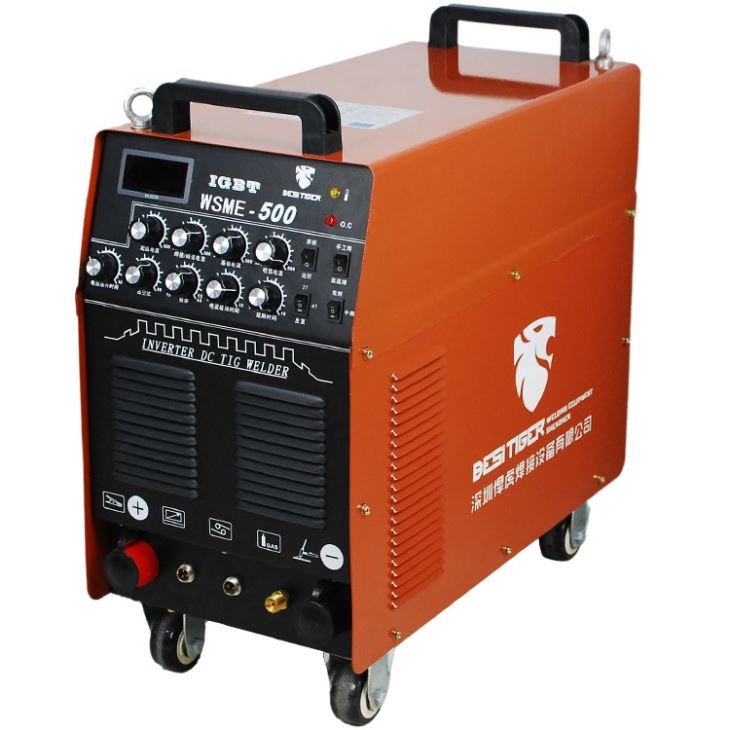

AC DC Welder

Product description:

1, MIG/MAG,P-MIG/MAG,DOUBLE P-MIG, CO2,TIG,P-TIG,MMA,carbon arc gouging.

2,DSP control system,more acculate welding process and stable arc.

3,DSP control wire feed,feeding wire more acuurately and smoothly.

4,Preprogrammed expert database, intelligentize parameters combination.

5,One knob synergic operation,simple and easy for everyone to use.

6,Up to 100 user defined programs can be saved.

7,Special 4T function is suitable for metals of good heat conductivity, perfect starts and finishes to all welds.

8,Reserved interfaces to connect with welding robot and different variants.

9,Soft switch inverter technology leads to unbeatable long term reliability and very energy efficient.

10,Could equip digital welding torch,quicker and more convenient.

Technical Parameters
Model	WSME-315	WSME-500	WSME-630
Rated input voltage /frequency	Three Phases 380V±15% 50/60Hz
Rated input capacity (KVA)	13	25.7	34.9
Rated input current (A)	20	39	53
Rated duty cycle (%)	60
Output noload voltage (V)	74	79	83
Output current range (A)	5-315	20-500	20-630
Arc current(A)	10-160	20-160	20-160
Peakcurrent(A)	5-315	20-500	20-630
Arc current income(A)	5-315	20-500	20-630
Current ramp time(S)	0.1-10
Current decay time(S)	0.1-15
Advance flow time(S)	0.1-15
Post-gas time(S)	0.1-60
Pulse frequency(Hz)	0.2-20
Pulse duty cycle	1-100%
AC frequency(Hz)	20-200	20-100	20-100
Cleaning width adjustment(%)	-40-40
Pulse frequency(Hz)	0.2-20
Pulse Width	1-100%
TIG arc method	High frequency
Thrust current(A)	10-200
Enclosure protection class	IP21S
Insulation grade	F
Exterior size LxWxH(mm)	655x325x560	665x353x778	690x385x825
Weight(kg)	50	77	90
