5watts 850MHz Indoor Signal Booster

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

5watts coverage 5000m2 GSM850 mobile signal ST850&5W mobile signal booster

A mobile phone signal repeater provides the ultimate solution in any indoor area where cellular communications can not work well due to leak of signals (but outdoor signal good). The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.

A mobile phone repeater is ideal for house, home, office use.

Best 37dBm 5 Watts GSM 850 MHz Wireless Cell Phone Signal Booster is designed to solve problems of wak mobile signal, which is much cheaper than adding a new base station (BTS).Main operation of the repeaters are to receive lower-power signal from BTS via RF transmission and then transmit the amplified signal to the areas where network coverage is inadequate.And the mobile signal is also amplified and transmitted to the BTS via the opposite directon.


The repeater makes the signal stronger in places with poor signal coverage such as:

1) Underground areas: basements, parking lots, tunnels;

2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.


Specification of Mobile Signal Repeater ST850&5W

specifications	uplink	downlink
Frequency Range:	824-849MHZ	869-894MHZ
Max Gain	76dB±1	83dB±1
Ripple in Band	?8dB
Max. Input Power Without Damage	0dBm
Output Power	2W(33dBm)	5W(37DBM±0.5)
Noise Figure @ max. gain	4.5dB	8dB
Return loss	? -8 dB
Auto Level Control	30dBm
MGC	31db@1dB/step
Time Delay	?0.5 µs
MTBF	> 20000 hours
Power Supply	AC:110~240V, 50Hz/ 60Hz;DC:27V 3A
Power Consumption	81W
Impedance	50 O
RF Connector	N -Female
Cooling	Heatsink Convection cooling
Amplifier size(D x W xH ) / packing size (D x W xH )	235X170X52(MM) /396X235X83(mm)
Net weight / gross weight	2.15KG/2.9KG
Installation Type	Wall Installation
Third-order intermodulation	45DB
Humidity	< 90%
Operating Temperature	-10? ~ 55?

Product Feature

1.Provide quick coverage solution for weak & blind mobile signal zones, reduce drop/off calls, improve communication quality.

2.Compact size, elegant design, easy install.

3.Low consumption, low interference to BTS, high linear design.

4.Reduce cellphone transmit pwoer and radiation, extend cellphone battery life.

5.AGC design to show working frequency, gain, output power & signal intensity etc.

6.ALC Circuit can limit stable output power to ensure steady signal coverage.

7.MGC (Manual Gain Control) function desgin to ensure the mobile signal coverage more flexible.

8.Apply to approximate 2500~6000 square meters mobile signal coverage.

9.Band for 850MHz(GSM/UTMS) , 1900MHz(PCS), 900Mhz(GSM) , 1800MHz(DCS/LTE) 2100MHz(WCDMA), 2600MHz(LTE), EGSM(900MHz), 2100MHz( WCDMA 3G UTMS), 1700MHz(AWS)

10.Perfect Indoor Repeater solution of mobile signal extender.

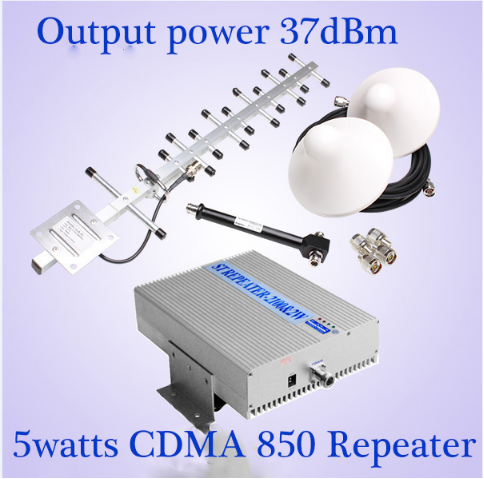

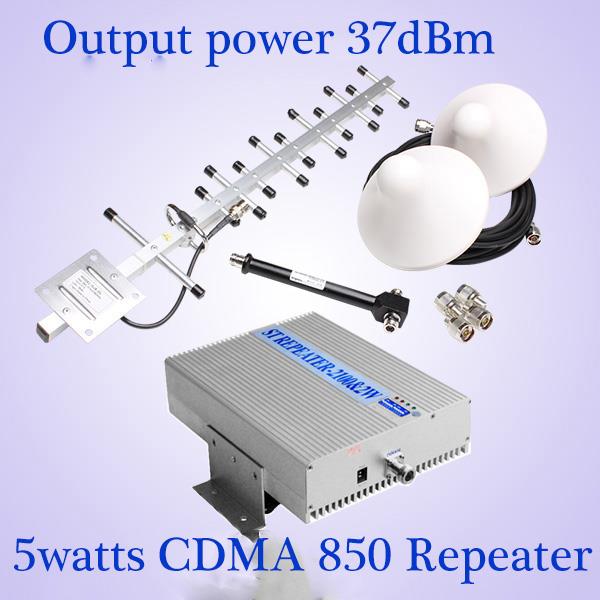

Mobile Phone signal Booster Installation complete kit items

Signal booster

Outdoor antenna

Indoor antenna

Cable

Splitter (When there are more than 2 indoor antennas)

Connector(N connector, F connector, N to F connector, SMA connector etc)

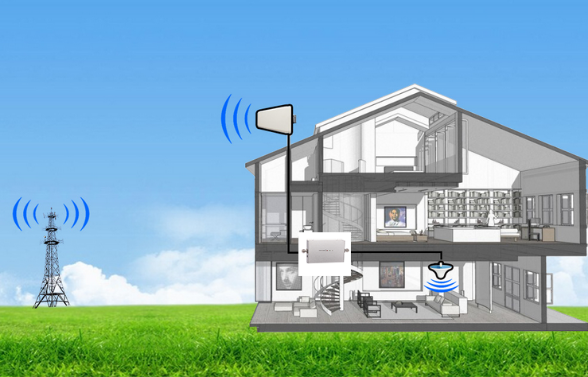

Mobile Phone Signal Repeater Installation Steps

Step 1: Install the outdoor antenna in a suitable place

Step 2: Connect the outdoor antenna to the booster “outdoor” side by cable and connector

Step 3: Connect the indoor antenna to the booster “indoor” side by cable and connector

Step 4: Connect to the power


FAQ

Q	The solution for without effect after installed
A.	1.First make sure outdoor antenna’s side has above -65dbm mobile signal. 2.Make sure repeater,antenna are right model. 3.Make sure indoor and outdoor antenna,splitter are connected well.
Q	After installed,the signal situation is improved ,but can’t make a call.
A	1.Make sure outdoor antenna towards BTS. 2.Make sure the distance between outdoor antenna and BTS within 5KM. 3.Make sure the distance between outdoor antenna and repeater is in the range of 10mto 20m. 4.If it still hasn’t been solved,change a higher power repeater or ask a professional person to check.
Q	The communication quality is bad
A.	1.Adjust the direction of outdoor antenna. 2.Change the signal direction from outdoor antenna to repeater(by nearest straight line,less corner,do not rotate 90degree) 3.Make sure the cable from outdoor antenna to repeater is using 50ohms coaxial cable. 4.Make sure the distance from indoor to outdoor antenna above 20m, it's better to have a wall or passageway between them,avoid the signal from indoor antenna received by outdoor antenna amplified (it will make repeater self-oscillation)
Q	After installed,the signal situation is improved,but with small coverage area.
A.	1.Make sure the signal from outdoor antenna is strong. 2.Make sure the cable from indoor antenna to repeater is less than 10m,connectors are connected well,cable material up to standard,no much splitters. 3.Choose more powerful signal repeater.
Q	The solution for the interference to BTS
A.	1.The reason is the repeater’s uplink power is too big,or it is too close to BTS. 2.The solution is change the outdoor antenna installation place,deviate from BTS,or choose less powerful repeater.
Q	Mobile signal is not steady
A.	1.The reason is the self-osillation of repeater. 2.The solution is make sure the connectors are right for input and output,the shield is well. 3.Make sure the distance between indoor and outdoor antenna is above 10m,it is best there is a wall between them.
Q	There is a full bar on phone,but can’t make a call
A.	1.This reason is the uplink power is not enough,or the signal from outdoor antenna is too weak. 2.First make sure outdoor antenna’s side have mobile signal,and reach above -65dbm. 3.Make sure the distance between indoor and outdoor antenna is above 10m,it is best there is a wall to separate them. 4.Install the outdoor antenna on a higher place,while direct to BTS.

Our present manufacturing service:

1)GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:

1.Single band Repeater

2.Dual Band Repeater

3.Tri band Repeater

4.Optic Fiber Repeater

5.Wide Band Repeater

6.Channel Selective Repeater

7.ICS Repeater

Terms and Conditions

Certificate	CE/RoHs
Country of Origin	China
Port of Dispatch	Shenzhen
Production Capacity	1000pcs/month
Date of Delivery	Within 3 days after received payment inform
MOQ	10pcs
Warranty	2years
Pacakge	1pcs/box; 10pcs/carton
