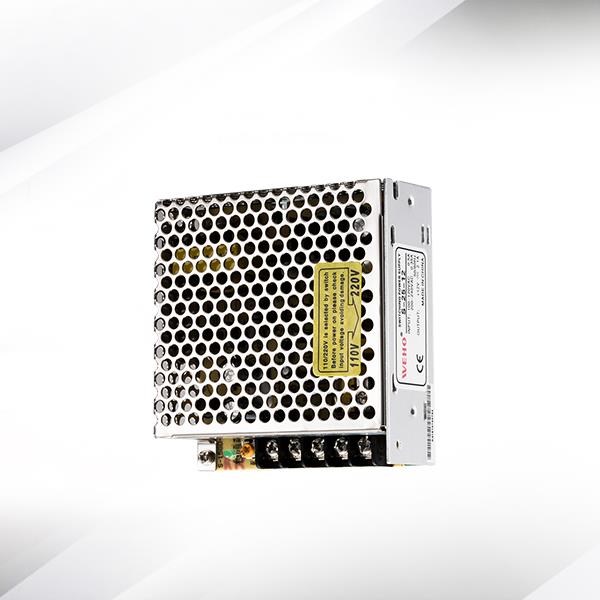

5v Smps

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

Features: High efficiency, high reliability and low cost Switch input voltage range choice 100% full load and machine test Protection characteristics: short circuit/overload Air cooling Working frequency 37 KHz One year warranty Size: 98 * 97 * 35 mm (L * W * H)
Mode		S-25-5	S-25-12	S-25-15	S-25-24
OUTPUT	Dc output voltage	5V	12V	15V	24V
	Output voltage tolerance	±2%	±1%	±1%	±1%
	Rated output current	5A	2.1A	1.7A	1.1A
	Output current range	0-5A	0-2.1A	0-1.7A	0-1.1A
	Output power	25W	25.2W	25.5W	26.4W
	Ripple and the noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
	Dc voltage adjustable scope	+10,-5%	±10%	±10%	±10%
	Start, rise, keep time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC Loaded with
INPUT	Input voltage range	90 ~132 VAC / 180-264VAC By switch 47~ 63 Hz;120~370VDC
	Exchange input current	0.6 A/115 V 0.35A/ 230 V
	efficiency	72%/115VAC	76%/115VAC	77%/115VAC	80%/115VAC
	Impulse current	Cold start current 15A/115V 30A/230V
	Leakage current	<0.75 mA/240VAC
PROTECTION	Overload protection	110%~160% cut off output . Fold back current limiting, recovers automatically
		....
	Overvoltage protection	115%~135%
		Protection way: hiccups, auto recovery mode
Environment	Working temperature, humidity	-10?~+60?;20%~90 %RH
	Keep temperature, humidity	-20?~+85?;10%~95 %RH
	Vibrate resistance	10 ~ 500 Hz ac, 2 G 10 min. / 1 cycle time, 60 minutes, the axis
security	Compression sex	Between input and output :3KVAC Input and to :1.5KVAC Output and to :0.5KVAC
	Insulation resistance	Between the input and output, the input and output, and ground :100M Ohms/500VDC
Standard	Safety standards	Meet UL1012, TUV EN60950
	EMC standards (note 4)	Accord with EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5;ENV50204,EN55024
Other	Weight	0.3Kg
	Packaging	60pcs/18Kg/1.2CUFT
Note	1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ? conditions measuring income value. 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. 5. Specific output current see output drop forehead curve.

Weihao Electronic, one of the professional manufacturers and suppliers of advanced 5v smps in China, has rich experience in producing and selling its products to various regions. Our company has one of the most famous such brands. You can rest assured to get 5v smps EMC LVD or RoHs with us.
