48V Li-ion Battery PCM,BMS,PCB (15A Limited) For 13S Battery Packs
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail

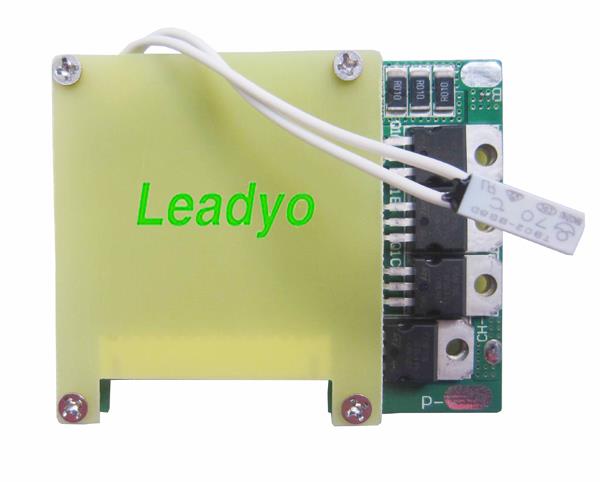

48V li-ion battery PCM,BMS,PCB (15A limited) for 13s battery packs
Features:
1.Apply for 48V 13 Cells Li-Ion Battery Pack with discharging current 15A, Max charging current 5A
2.To prevent the 54.6V battery packs from overcharge,overdischarge,over current, over temperature ,short circuit;
3..Compatible with all the Li-ion /Li-Po cells.
3..Temp :60 degree to detect Battery
Protection Circuit Module Specifications For 48V Li-ion Battery Pack | ||||
Model: PCM-L13S15-998(A-2)(13S) | ||||
No. | Test item | Criterion | ||
1 | Voltage | Charging voltage | DC:54.6V CC/CV | |
Balance voltage for single cell | ||||
2 | Current | Balance current for single cell | ||
Current consumption | =20µA | |||
Maximal continuous charging current | 5A | |||
Maximal continuous Discharging current | 15A | |||
3 | Over charge Protection | Over charge detection voltage | 4.25±0.05V | |
Over charge detection delay time | 0.5S—2S | |||
Over charge release voltage | 4.19±0.1V | |||
4 | Over discharge protection | Over discharge detection voltage | 2.80±0.1V | |
Over discharge detection delay time | 10—200mS | |||
Over discharge release voltage | 3.0±0.1V | |||
5 | Over current protection | Over current detection voltage | 0.20±0.02V | |
Over current detection current | 65±10A | |||
Detection delay time | 5ms—60ms | |||
Release condition | Cut load | |||
6 | Short protection | Detection condition | Exterior short circuit | |
Detection delay time | 200-800us | |||
Release condition | cut load | |||
7 | Resistance | Protection circuitry(MOSFET) | =20mO | |
8 | Temperature | Operating Temperature Range | -40~+85? | |
Storage Temperature Range | -40~+125? |
PCM Connect | ||||
Item | Details | |||
B- | Connect to Negative Side of the pack. | |||
P- | Discharging Negative Port. | |||
C- | Charging Negative Port. | |||
B1 | Connect to Positive Side of Cell 1. | |||
B2 | Connect to Positive Side of Cell 2. | |||
B3 | Connect to Positive Side of Cell 3. | |||
B4 | Connect to Positive Side of Cell 4. | |||
B5 | Connect to Positive Side of Cell 5. | |||
B6 | Connect to Positive Side of Cell 6. | |||
B7 | Connect to Positive Side of Cell 7. | |||
B8 | Connect to Positive Side of Cell 8. | |||
B9 | Connect to Positive Side of Cell 9. | |||
B10 | Connect to Positive Side of Cell 10. | |||
B11 | Connect to Positive Side of Cell 11. | |||
B12 | Connect to Positive Side of Cell 12. | |||
B13 =B+ | Connect to Positive Side of Cell 13. |
Leveraging on advanced equipment and technology, Leadyo Technology manufactures and trades various 48v li-ion battery pcm,bms,pcb (15a limited) for 13s battery packs products. Through years' development, we are now known as one of the leading manufacturers and suppliers of various batteries in China. Should you are interested in it, welcome to buy the customized battery from our factory.
-
